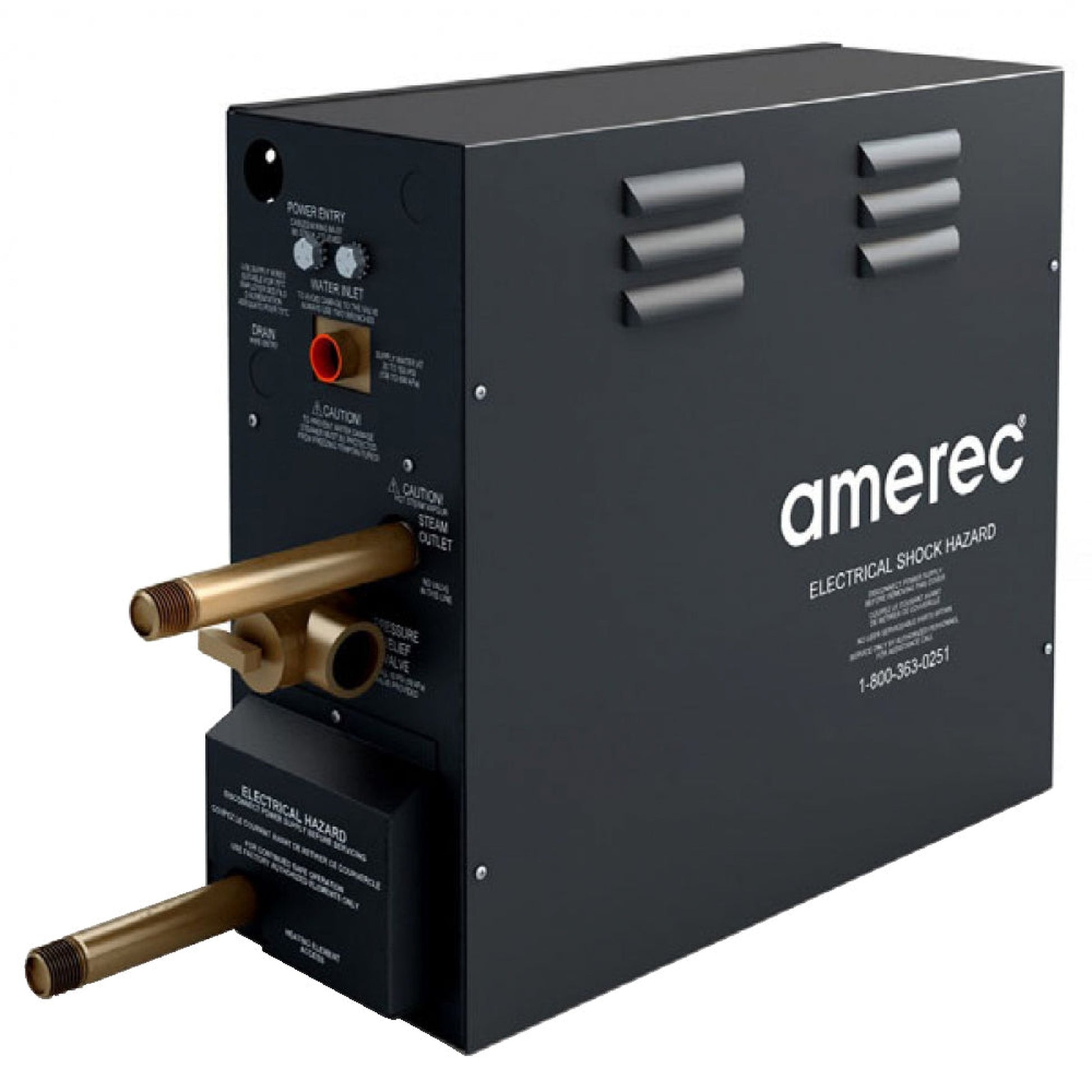

Amerec AK Series 7.5KW 240V Steam Shower Generator

Amerec AK Series 7.5KW 240V Steam Shower Generator

Regular price $2,012.50
Regular price $2,875.00 Sale price $2,012.50
Sale Sold out
  • Free Shipping on Orders Over $400
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The Amerec AK7.5 is engineered for home and day spa steam baths up to 200 adjusted cubic feet (ACF).

Constructed of corrosion-resistant stainless-steel, the Amerec AK7.5 steam shower generator provides years of dependable, worry-free operation. The AK7.5 includes professional-grade heating elements, modular snap-in control connections, durable electronic components and parts, electronic water level control system, and a variety of other innovative features.

Amerec AK Series steam generators are designed to provide the most consistent steam production and temperature for a relaxing steam bath. The AK 7.5 uses a Sequential Temperature Control which provides a consistent flow of soft steam without unexpected temperature variations.

The Amerec AK7.5 steamer’s stainless-steel tank and water probes deliver long-lasting strength and durability. The AK7.5 steam shower unit is equipped with removable heating elements for easy and economical service. Homeowners, health clubs, and day spas rely on Amerec AK Series steam generators for long-lasting safety, reliability, and efficiency.

The Amerec AK7.5 7.5kW steam generator is available in 240Vor 208Vand can be field wired for single-phase or three-phase (PH) configurations.

The Amerec AK7.5 generator requires the available K3 control for operation which regulate bathing duration and temperature, or the R30K 30-minute timer. Each control package comes with a matching finish ComfortFlo steam head.

We recommend the available Amerec ADK Automatic Drain System with your AK7.5 steam unit which drains the generator tank after each use to help prevent calcification and lime build-up of the unit.

Amerec AK Series generators can be linked together to heat steam shower enclosures larger than 550 cubic feet. Connection cables are sold separately, and each generator requires a ComfortFlo steam head.

The Amerec AK7.5 steam bath generator carries a limited lifetime warranty and is fully serviceable. All Amerec steam room generators are UL, CSA, and CE listed for your safety.

*Required control package sold separately.

What's Included

  • 7.5KW steam bath generator
  • Installation and operation manual
  • Limited warranty

Features

  • Sequential temperature control for consistent flow
  • Stainless steel tank
  • Industrial grade, serviceable heating elements
  • Durable electronic components
  • Electronic water-level control system
  • Low voltage safety control circuits
  • Available Auto Drain automatic draining system
  • Ability to field wire for 1-phase or 3-phase phase
  • Ability to connect multiple generators to heat steam baths larger than 550 cubic feet
  • Operates with inside/outside shower, on/off, time/temperature controls
  • Full 3/4" port drain valve
  • ASME safety valve
  • UL/CSA/CE listed

Specifications

Model AK7.5
Minimum Adjusted Cubic Feet 80
Maximum Adjusted Cubic Feet 200
Kilowatt Rating (KW) 7.5 KW
Shipping Weight (Lbs.) 35 lbs
AC Voltage 240V AC
DC Voltage 5V DC
Phase Single Phase
Nominal Amperage 31 Amps
Recommended Protective Device 40 Amp
Recommended Minimum Copper Wire Supply 8 AWG
Water Supply Connection 3/8" NPT
Generator Steam Line Connection 1/2" NPT
Steam Head Connection 1/2" NPT
Drain Connection 3/4" NPT
Safety Relief Valve Connection 3/4" NPT
Safety Relief Valve PSIG 10 PSIG
Control "Rough In" Cut Out 2-3/8" Diameter
Control Sensor Cable 25', 2 Conductor, 22 AWG, Shielded Cable
Control Sensor "Rough In" Cut Out 7/8" Diameter
Generator Control Connection 8 Pin, Snap-In Connector
Generator Control Cable 25', 8 Conductor, 28 AWG, Shielded Cable
Width In Inches 16-1/2"
Depth In Inches 6-1/4"
Height In Inches 15"
