SKU:100.2691TSB

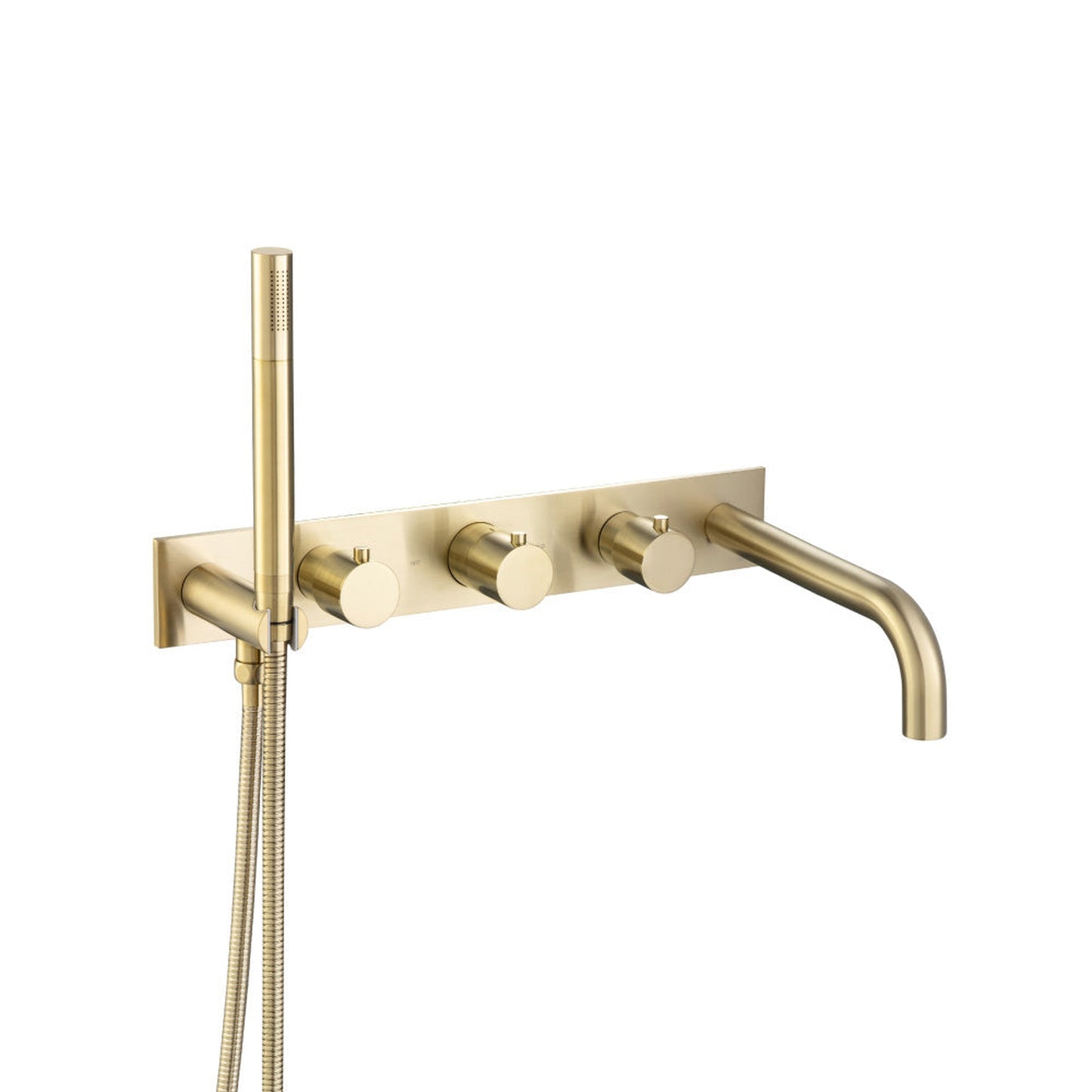

Isenberg Serie 100 Trim for Wall Mount Tub Filler With Hand Shower in Satin Brass

Isenberg Serie 100 Trim for Wall Mount Tub Filler With Hand Shower in Satin Brass

Regular price $743.00
Regular price Sale price $743.00
Sale Sold out
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Isenberg’s 2691 trims sets allow for simultaneous operation between the spout and hand held and are used for tub fill application. This product is to be paired with the TVH.2691 valve.

HANDLE OPERATION – The middle handle is used to control the temperature of water flowing through the outlet. The left handle controls the volume of water from full flow to a trickle for the output port 1. The right handle controls the volume of water from full flow to a trickle for the output port 2.

ANTI-SCALD RING – Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, the temperature of the water is regulated. Covering this ring is the handle knob which has a push-button on the side. To adjust the water temperature, one needs to press this button and move the handle to a hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full hot position, as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.

CUT OUT DIMENSIONS – The cut out in the wall should be 16.41” X 1.85” which is properly covered by the trim plate. This will ensure that the trim plate will cover the cut out hole in the wall.

TRIMS – The trims comprise of a well-finished cover plate and handle knobs. The trim plate is used to cover the wall. Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.

Features

  • Solid Brass Construction
  • Valve Not Included - Trim Only
  • 2 Output Ports
  • Hand Shower Flow Rate Limited to 1.8 GPM
  • Hand Shower & Tub Spout positions can be swapped
  • Extension Available - Part # TVH.2691E**

Specifications

Style Contemporary / Modern
Collection Serie 100
Category Bathing
Type Wall Mount Tub Faucets
Material Brass
Handle Style Knob
Warranty Limited Lifetime Warranty
