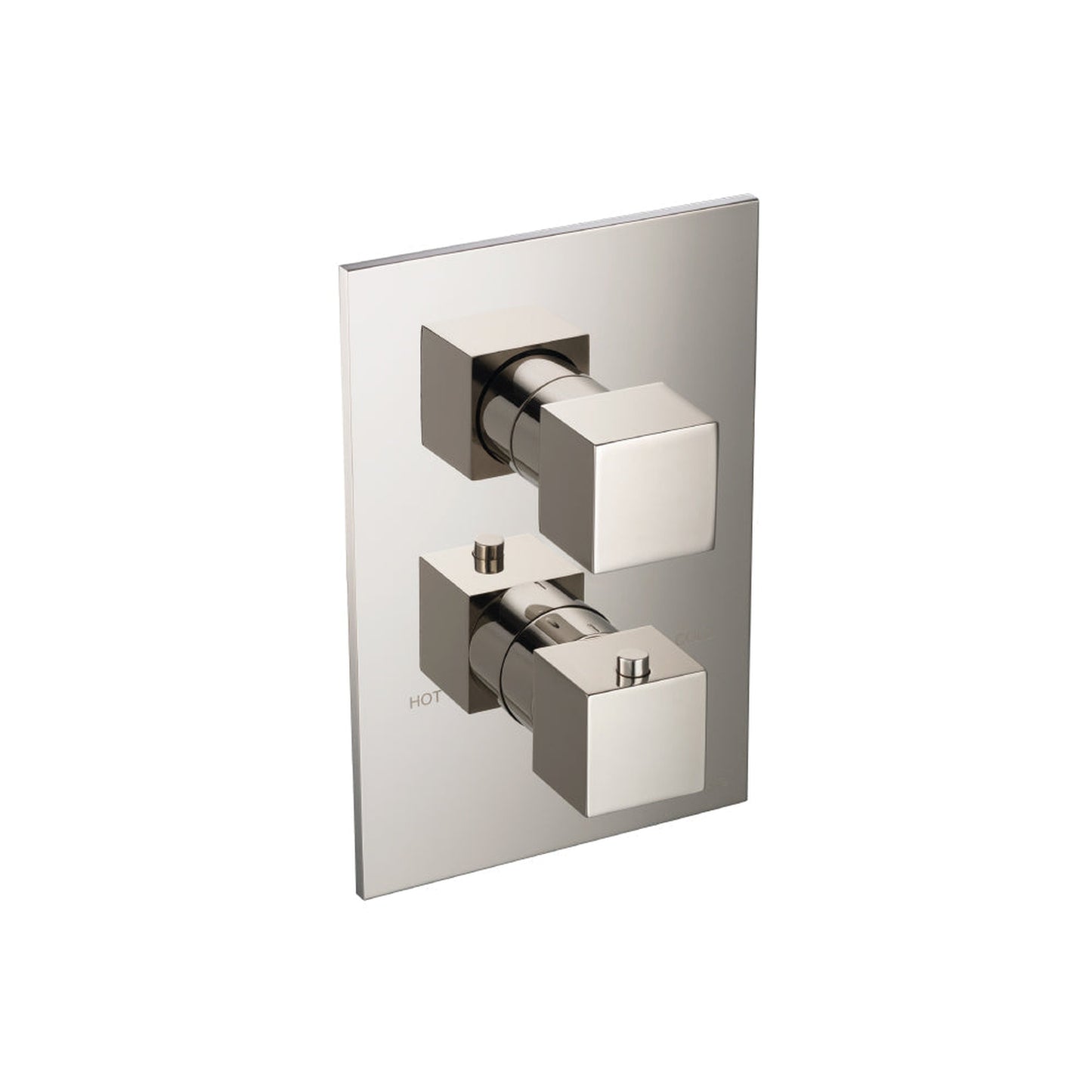

Isenberg Serie 160 3/4" Two Output Thermostatic Valve and Trim With 2-Way Diverter in Polished Nickel

Isenberg Serie 160 3/4" Two Output Thermostatic Valve and Trim With 2-Way Diverter in Polished Nickel

Regular price $731.25
Regular price Sale price $731.25
Sale Sold out
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
The TVH.4420F Thermostatic valve features 3/4" female NPT connections and has 2 water output ports. This product meets CAL-Green Compliance. The bottom handle sets the temperature, and the top handle diverts water flow between the two output ports.

Supply Stops - There are two safety stops at each water inlet to stop water flow in case of installation and repairs.

Handle Operation - The bottom handle is used to control the temperature of water flowing through the outlet. The top handle can control the volume of water from full flow to a trickle as the handle is turned from OFF to ON position.

As the valve is installed, care should be taken to maintain proper distance from the back of the valve to the finished tile which should be between 2.77” and 3.44” inches [Rough In Spec]. Also, the value must be installed straight and not at an angle or upside down. In case, the tile is thicker, or valve is installed in the wall is too deep, extension kits are available and can be used for elongating both handles of the valve.

Cut Out Dimensions - The cut out in wall should be 6.49 X 4.44 Inches and no more – this will ensure that the trim plate will cover the cut-out hole in the wall.

Trims - The trims comprise of a well finished cover plate and handle knobs. Over the temperature control knob, is an anti-scald temperature stop ring which is a safety feature in this thermostatic value. With the help of this ring, temperature of the water is regulated. Covering this ring is the temperature handle knob which has a push button on the side. To adjust the water temperature, one needs to press this button and move the handle to hot or cold direction. Without pressing it, the user will not be able to rotate the handle to the full HOT position – as an anti-scald prevention mechanism. The anti-scald temperature stop ring should be fitted tightly over the valve (tapping using a rubber mallet might be required) for it to function properly.

Depending upon the shower model, trims can be of different shape and size, varying from square to circular shower handles.

Cartridge – The TVH.4420F valve can be used with two cartridges. The default cartridge that the valve comes with is the Model # 15109 cartridge which is a 2 output non-shared [CAL-Green Compliant] cartridge. A shared port operation cartridge [Model # 15103] can also be used to activate 2 ports at the same time.


  • Solid Brass Construction
  • Includes Thermostatic Valve - TVH.4420F
  • Valve Includes Integral Service Stops
  • 2 Output Ports
  • Extensions Available - TVH.4101E**


Style Contemporary / Modern
Collection Serie 160
Category Showering
Type Shower Faucet
Material Brass
Installation Type Wall Mounted
Handle Style Knob
Valve Type Thermostatic
Connection Size 3/4" Female
Warranty Limited Lifetime Warranty
