The SERIE 260™ of Isenberg’s Master Bath Collection mesmerizes with its luscious curves. Effortlessly styled to be evocative, the SERIE 260™ faucet collection enhances your bath space with its incredibly eloquent structure.

Isenberg 8″ Widespread faucets have a separate hot and cold handle and are used on sinks and countertops with 3 pre-drilled holes that are each approximately 4 inches apart. The faucet body and handles are all separate pieces with volume control valves concealed under the sink. Isenberg three-hole faucets are constructed from solid brass. Each handle has a ¼ turn operation. Isenberg 8” Widespread faucets are constructed of solid brass and come with a pop-up drain with overflow.

A perfect blend of contemporary chic and inviting warmth, the SERIE 260™ is an indispensable note, for every bath symphony.

What's Included

• Three Hole Widespread Sink Faucet
• Pop-Up Drain With Overflow
• 2 Handle
• Volume Control Valves
• Aerator

Features

• Solid Brass construction
• Three Hole Installation
• Separate Hot And Cold Handles
• Ceramic disc cartridge allows volume control
• PVD (Physical Vapor Deposition) Finish - superior wear and corrosion resistance with a higher hardness than electroplating.
• LowFlow Capable
• Low Lead Compliant
• Zero Drip Technology
• Legislation Compliance
• ADA Compliance
• WaterSense Labeled
• ASME A112.18.1/CSA B125.1, NSF-61 Standard

Deck Hole Size: All 8″ widespread faucets from Isenberg Faucets fit into the universal deck hole size of 1 3/8″.

Critical Dimensions: Critical dimensions for 8″ widespread faucets include the height and spout reach. Reviewing this information will ensure that when it is used with the chosen sink, splash is minimized.

Specifications

Operating Specifications

	WATER TEMPERATURE This product is to be used with water at a temperature range of 40°F - 120°F ONLY!
	WATER PRESSURE This product is to be used with a water pressure range of 15 PSI to 80 PSI ONLY If the water pressure is greater than 80 PSI install a pressure-reducing valve (PRV)

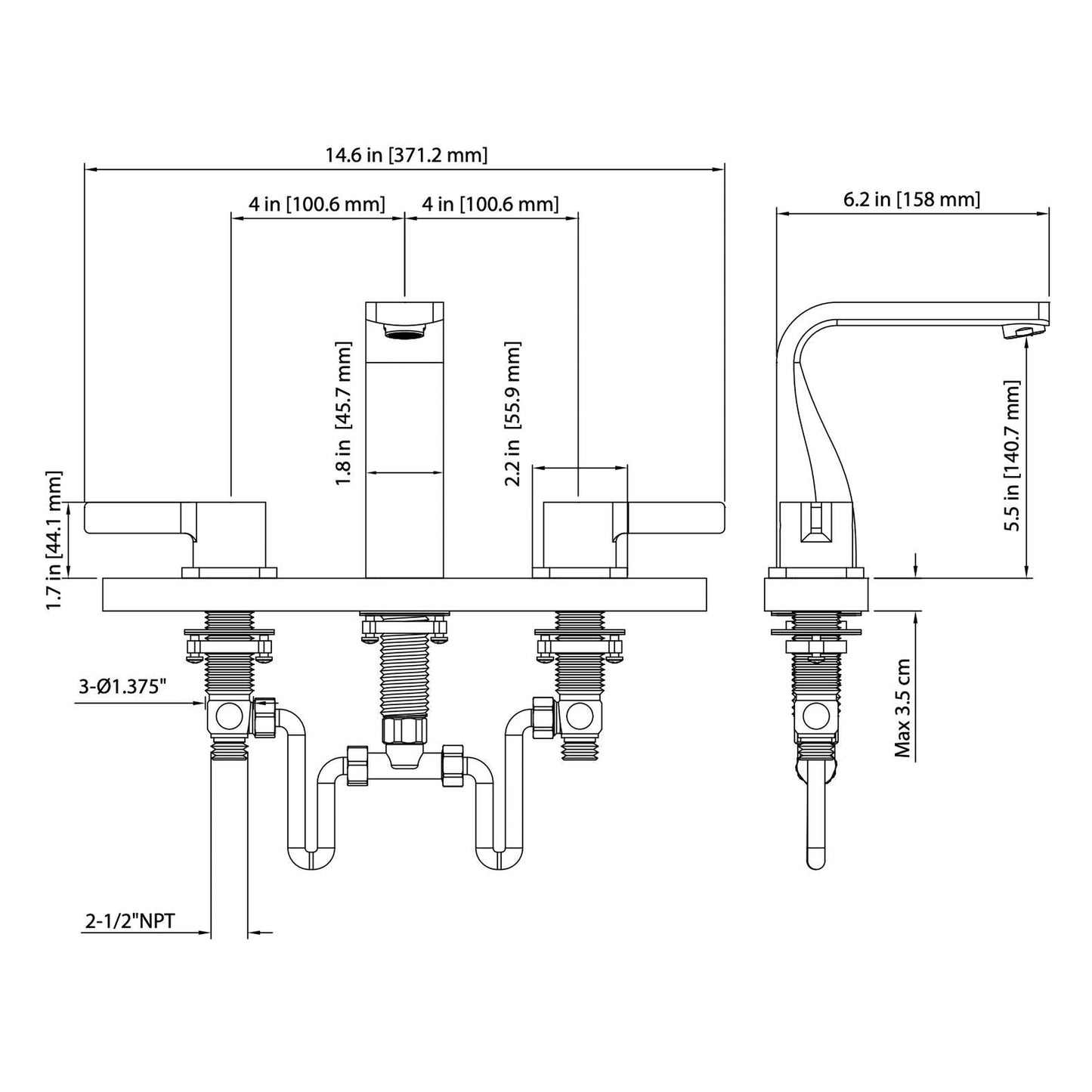

Technical Drawings

Warranty

Limited Warranty Within The United States & Canada

Isenberg Bath Corp. (“Isenberg”) products have been manufactured under the highest standards of quality and workmanship.

Isenberg warrants to the original consumer purchaser for as long as the original consumer purchaser owns their home (the “Warranty Period” for homeowners), that the Isenberg product that he/she has purchased will be defect-free during normal use and all parts and finishes of this product will be free from defects in material and manufacturing workmanship. All other purchasers (including purchasers for industrial, commercial, and business use) are warranted for a period of 2 years from the original date of purchase (the “Warranty Period” for non-homeowners).

If the product should ever develop a defect during the Warranty Period, Isenberg will provide the parts necessary to put the product back in good working condition FREE OF CHARGE, under normal installation, use, and service.

This warranty is subject to the limitations of liability noted below.

Limitations Liability

This warranty is applicable only to Isenberg products purchased after 1st January 2011 and shall be effective from the date of purchase as shown on the purchaser’s receipt. It applies only to Isenberg products purchased from Isenberg directly or from an Isenberg authorized dealer and installed in the United States or Canada. This warranty is non-transferable.

The Warranty Period for drain assemblies, bathroom hoses, hand-helds, kitchen hand sprays, and kitchen hoses shall be limited to a period of 1 year from the original date of purchase.

This warranty is extensive in that it covers the replacement of all defective parts and finishes, but these are the only two things that are covered. Damage due to installation error, product abuse, product misuse, or use of cleaners containing abrasives, alcohol, or other organic solvents, whether performed by a contractor, service company, or you, are excluded from this warranty.

Further, this warranty will not apply if you do not use the product in its entirety. If any part (including but not limited to a cartridge, hose, handle, o-ring, aerator, flow-limiting restrict-or, etc.), is not installed, removed, or replaced by a non-genuine Isenberg part, this warranty will be voided.

Your sole and exclusive remedy, and Isenberg’s sole obligation, in case of a defective part or finish is to have Isenberg, at Isenberg’s sole option, repair or replace the defective part or finish. By way of example but not limitation, the following costs and expenses are not covered by this warranty: (i) labor costs for the removal, installation, re-installation, finishing or refinishing of the product, or defective part (or of building materials which must be removed, installed, reinstalled, finished or refinished in order to repair or replace the defective product or part); (ii) shipping and freight expenses required to return the product to Isenberg. Repaired or replaced parts are individually warranted only under the same terms and for the remaining balance of the warranty period applicable to that part(s) which is/are repaired or replaced.

IN NO EVENT, WILL ISENBERG BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES INCLUDING, BUT NOT LIMITED TO, LABOR, REMOVAL, RE-INSTALLATION, REFINISHING, LOSS OF USE OF THE PRODUCT, LOSS OF PROFITS, LOSS OF REVENUE, LOST GOODWILL, CLAIMS OF EMOTIONAL DISTRESS, OR CLAIMS OF WARRANTY HOLDERS’ CUSTOMERS, WHETHER BASED ON CONTRACT, WARRANTY, TORT (INCLUDING, BUT NOT LIMITED TO, STRICT LIABILITY OR NEGLIGENCE) OR OTHERWISE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. EVEN IF THIS WARRANTY IS DEEMED TO HAVE FAILED OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL ISENBERG’S ENTIRE LIABILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT WARRANTED HEREUNDER.

THIS WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES NOT EXPRESSLY SET FORTH HEREIN, WHETHER EXPRESS OR IMPLIED, BY OPERATION OF LAW OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT THAT ANY IMPLIED WARRANTIES MAY NONETHELESS EXIST BY OPERATION OF LAW, ANY SUCH WARRANTIES ARE LIMITED TO THE DURATION PROVIDED BY THAT LAW. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

Compliance with Local Codes

Isenberg makes no representations that its products or its installation instructions comply with any or all local building or plumbing codes. It is your responsibility to determine local code compliance and correct usage. Isenberg strongly recommends using a licensed and insured plumber to install or service your Isenberg product.

Warranty Claims Contact Information

You may make a warranty claim or order replacement parts by calling Isenberg Bath’s Corporate office at +1-888-342-2284, or by writing to Isenberg Bath Corporation, P O BOX 630283, Irving TX 75063. Proof of purchase (original sales receipt) must accompany all warranty claims. To receive assistance or service under this warranty, you will be asked to provide a description of the problem, the model number of the product, your contact information, and the date of purchase. Isenberg may, at its option, also request that you, at your expense, mail the defective part or product to Isenberg for inspection.
