SKU:9006-304

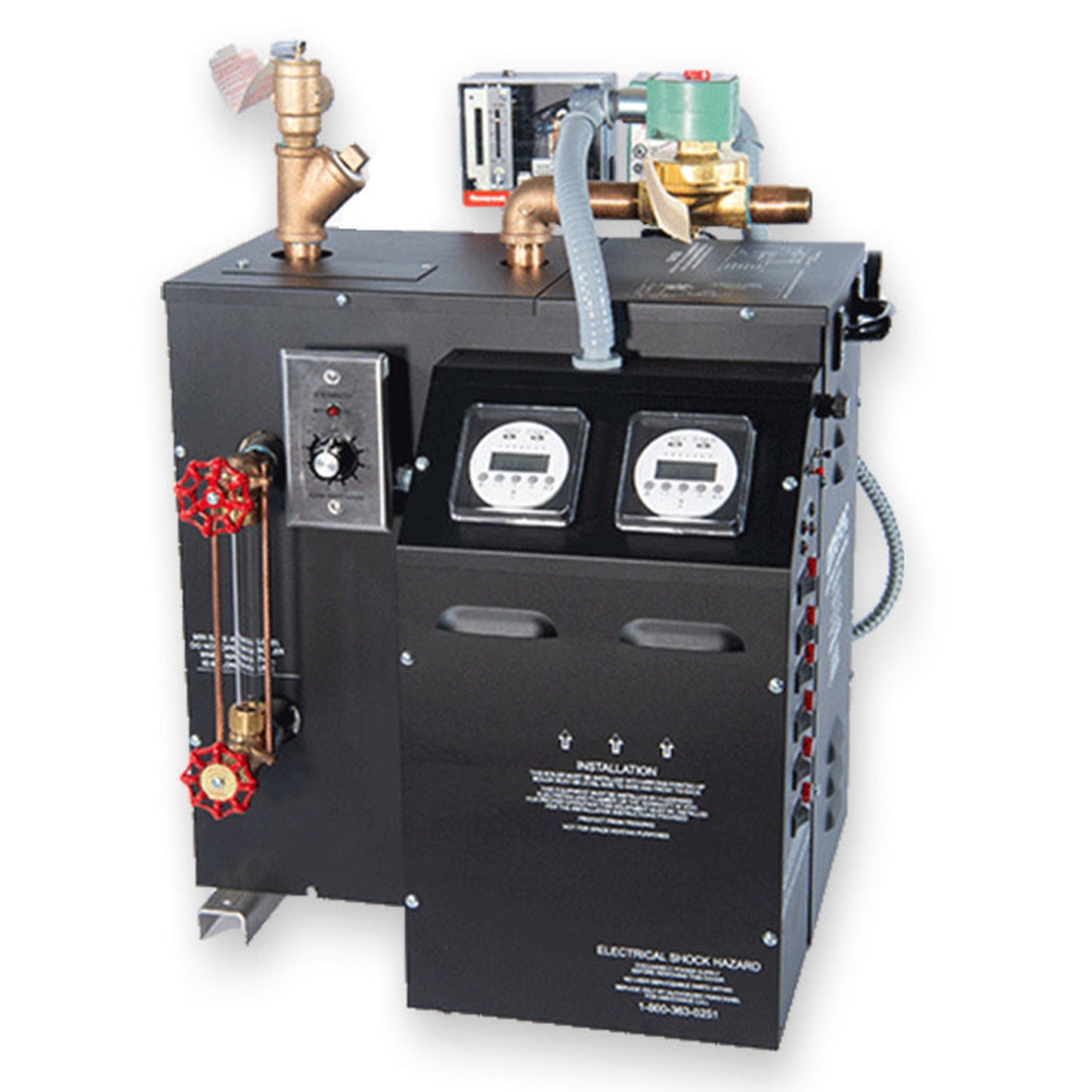

Amerec AI Series AI-30 30KW Commercial Steam Room Generator 240V/3PH
Amerec AI Series AI-30 30KW Commercial Steam Room Generator 240V/3PH
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
This 30-kilowatt electric steam room boiler can power up to two large steam baths with dimensions up to 1,500 adjusted cubic feet (ACF).
The AI-30 unit features an ASME-certified pressure vessel for instant steam, durable electronic components, temperature safety system, water level sight glass, LED indicator lights with diagnostics, and a variety of other noteworthy features.
Health clubs, resorts, hotels, and commercial wellness facilities trust the heavy-duty AI-30 generator for easy maintenance and hands-off, automated operation. The AI-30 is equipped with a corrosion-resistant steel exterior and multiple safety features which help minimize service costs and crucial downtime.
The AI-30 commercial steam boiler is UL and cUL listed and complies with ASME requirements to ensure safety and quality. All HC Series units are delivered pre-assembled and ready to install.
The Amerec AI-30 steam generator is available in 208V three-phase (9006-303), 240V three-phase (9006-304), and 480V three-phase (9006-306) configurations.
The AI-30 unit requires the use of a control for operators. Controls allow facility operators to control features such as temperature, duration, and pre-heating. Select the available control with features that best suit your facility needs.
We recommend the addition of the available ADI Automatic Drain System with your AI-30 unit. The ADI Automatic Drain System performs daily flushing of the generator tank to reduce build-up of solids such as scale and sludge.
Required control sold separately.
NOTE: Additional Freight Charges May Apply.
What's Included
- AI-30 steam boiler
- Two 3/4” NPT steam heads
- Installation and operation manual
- Limited warranty
Features
- Pressurized vessel for instant steam
- Durable electronic components
- Low water cut-off with manual reset
- 3/4” drain port
- Room high limit temperature safety system
- Operating, electronic high limit pressure control systems
- Sight glass
- Optional D24/7 digital time clock can be used for both generator on/off settings and ADI-D Autodrain system
- Alarm circuit panic button
- ASME safety valve
- ASME certified low-pressure operation vessel
Specifications
Model | AI-30 |
---|---|
Minimum Adjusted Cubic Feet | 1200 |
Maximum Adjusted Cubic Feet | 1500 |
Shipping Weight | 255 lbs |
Kilowatt Rating | 30 KW |
Electrical Specifications | Electrical Chart |
Water Supply Connection | 1/2" NPT |
Generator Steam Line Connection | 3/4" NPT |
Steam Head Connection | 3/4" NPT |
Drain Connection | 3/4" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve PSIG | 15 PSIG |
Control "Rough In" Cut Out | 2-1/8" x 3-1/4" |
Control Sensor Cable | 25', 2 Conductor, 22 AWG, Shielded Cable |
Control Sensor "Rough In" Cut Out | 7/8" Diameter |
Generator Control Connection | 3 Position Terminal Block |
Generator Control Cable | 25', 3 Conductor, 22 AWG, Shielded Cable |
Width | 17-1/2" |
Depth | 20-3/4" |
Height | 23-1/4" |
