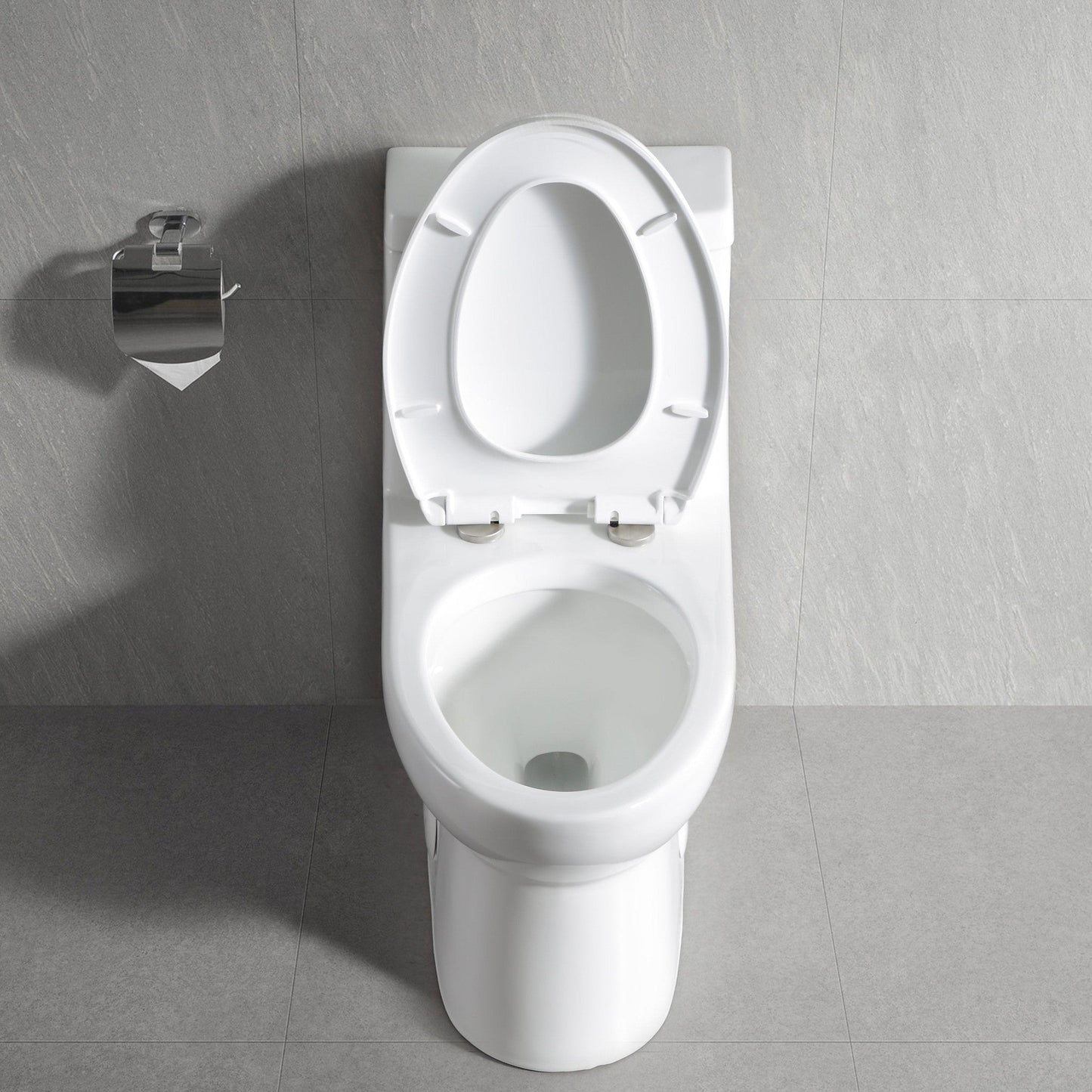

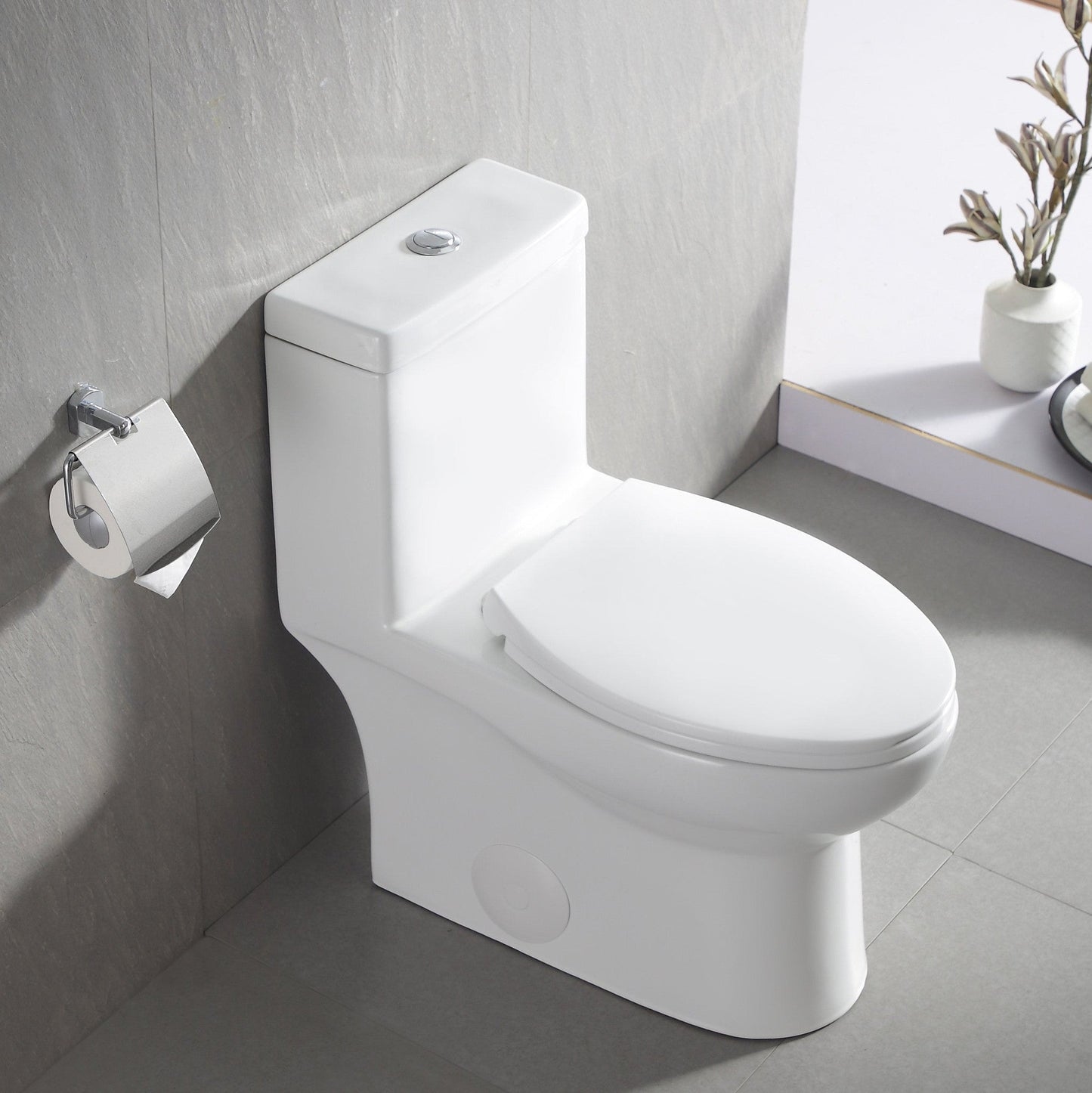

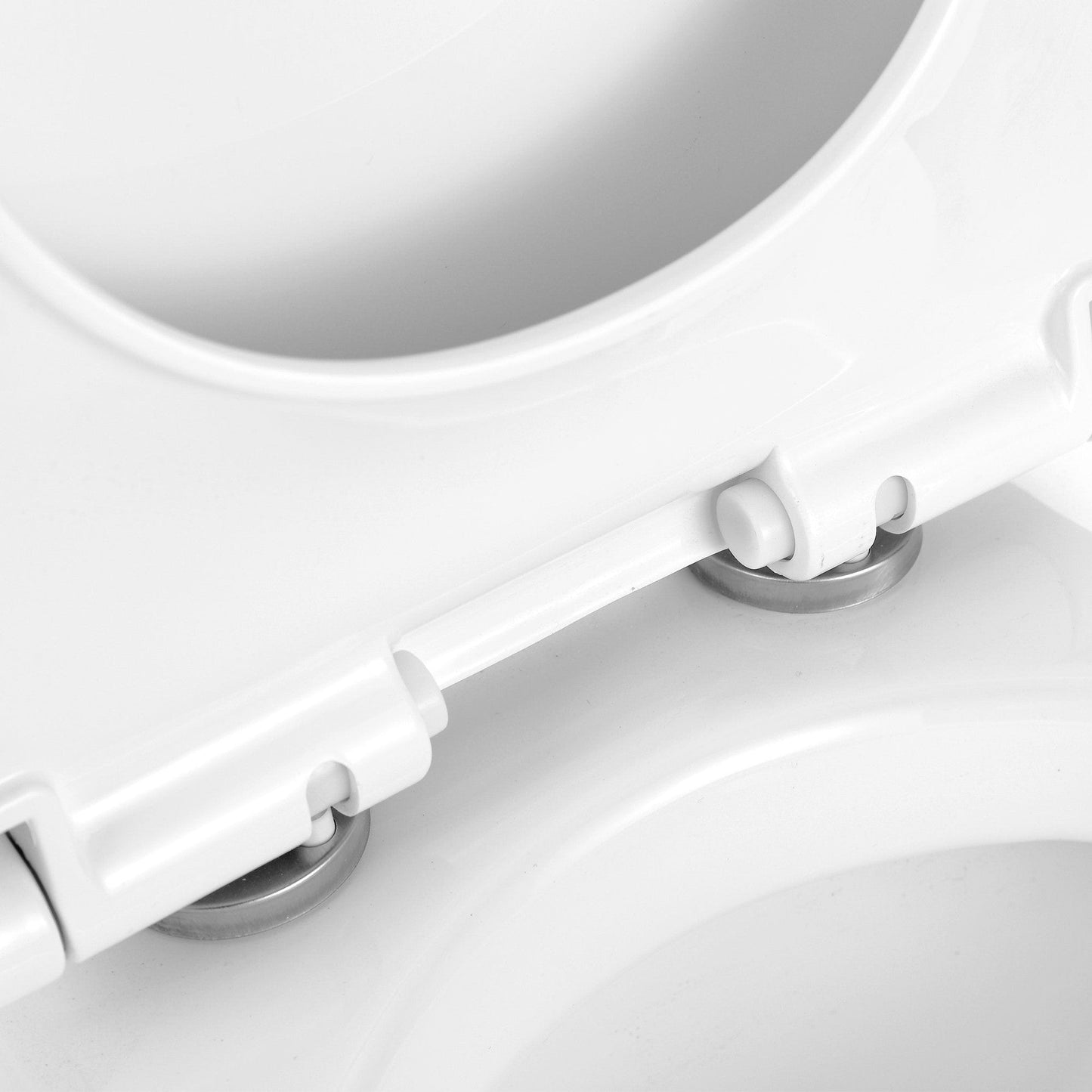

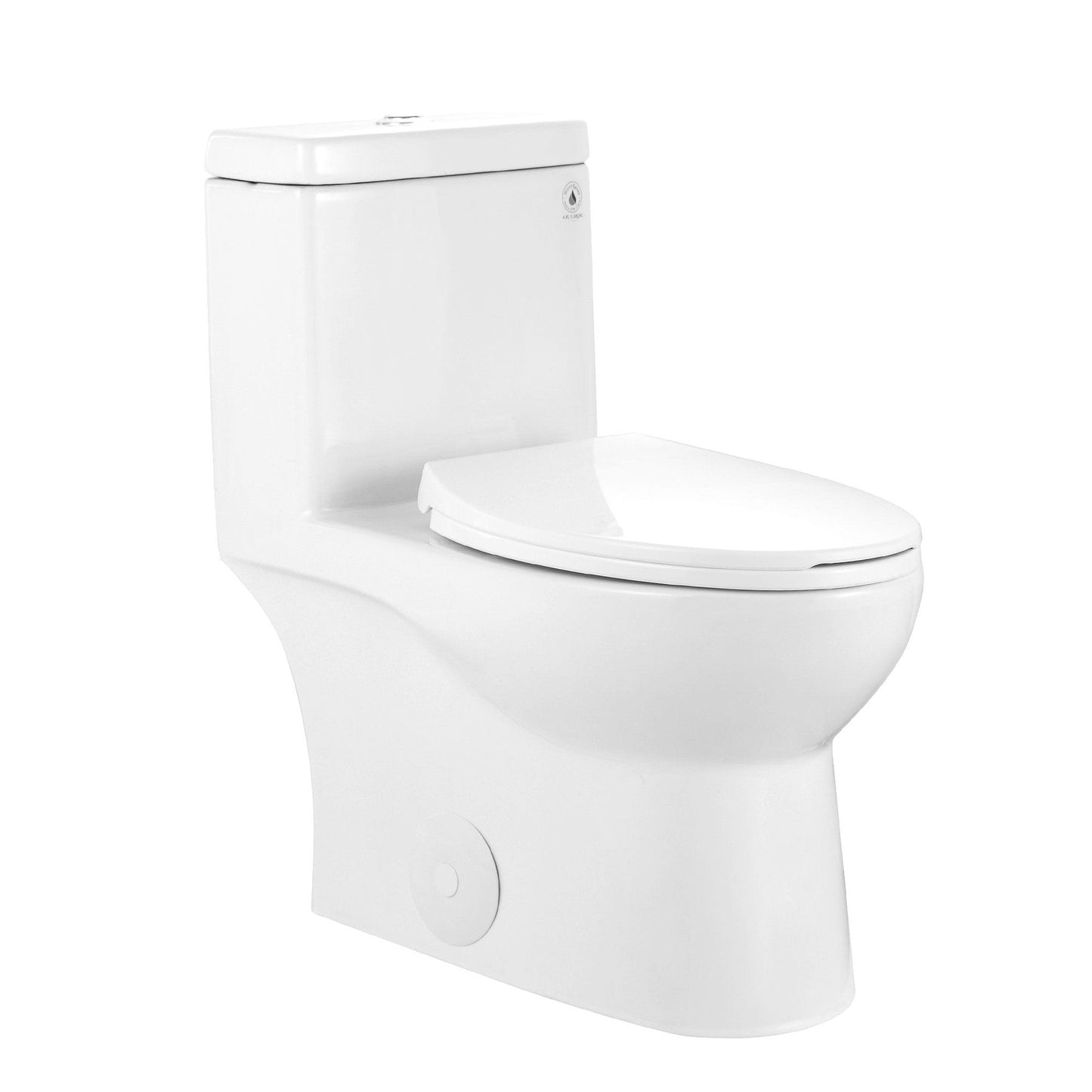

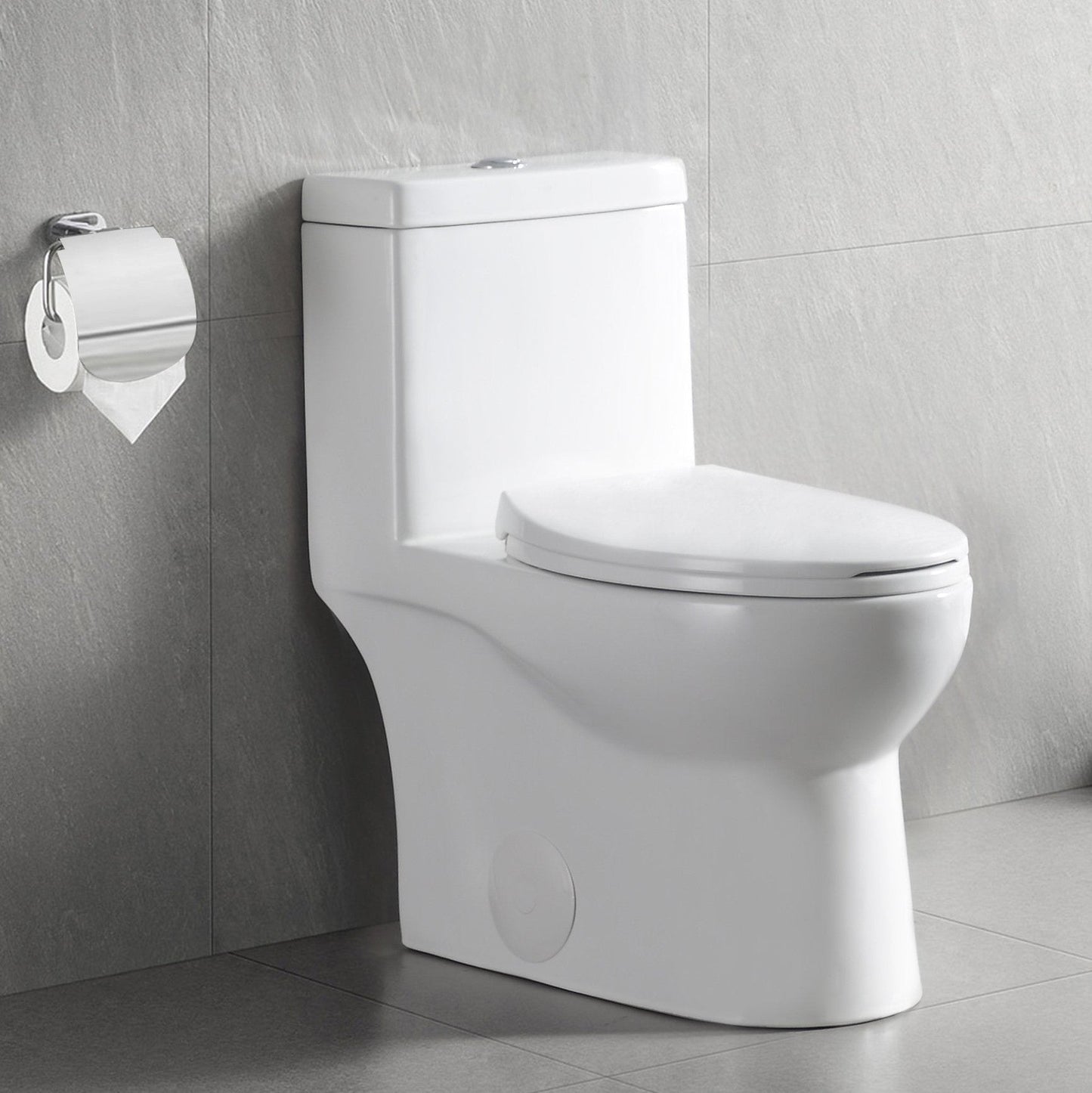

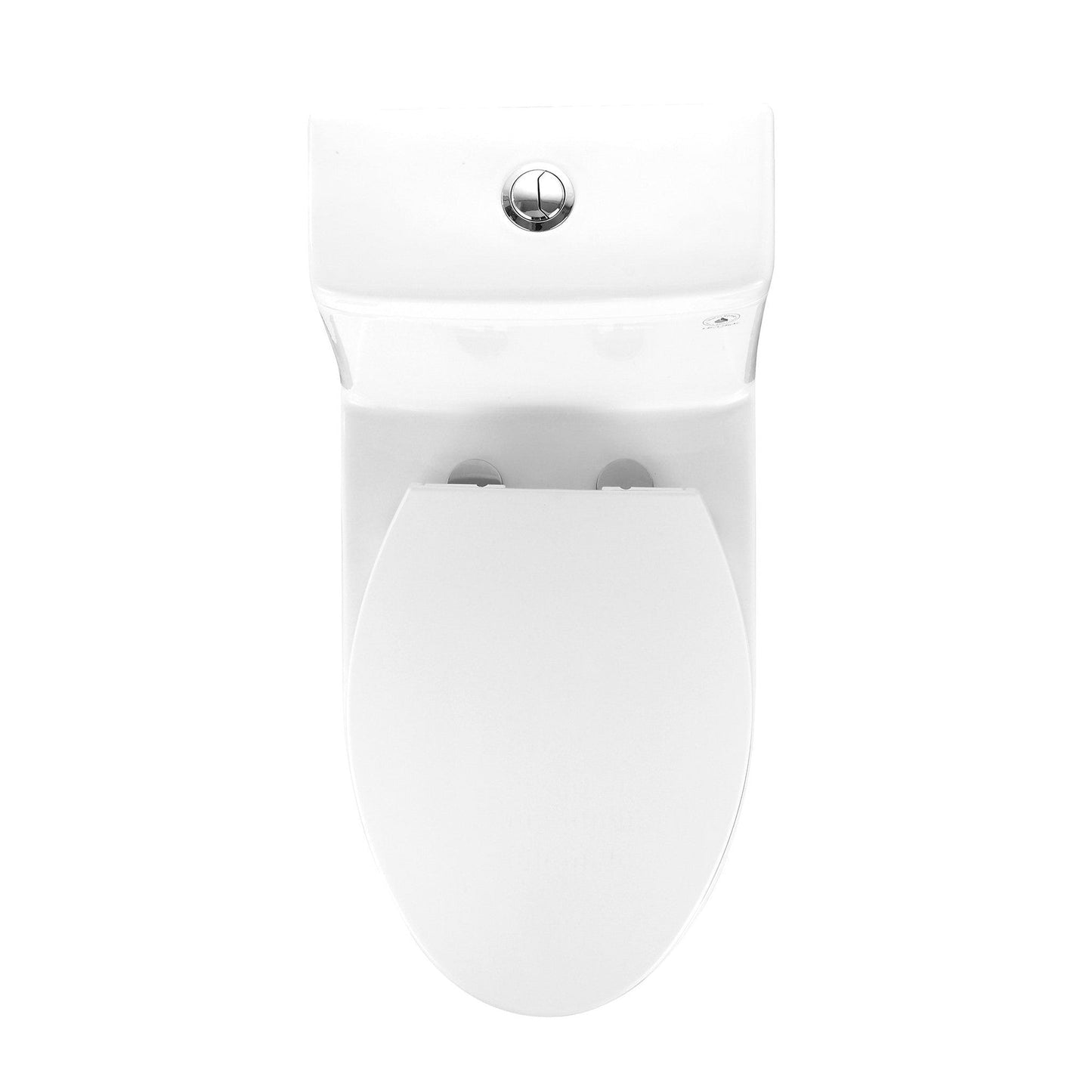

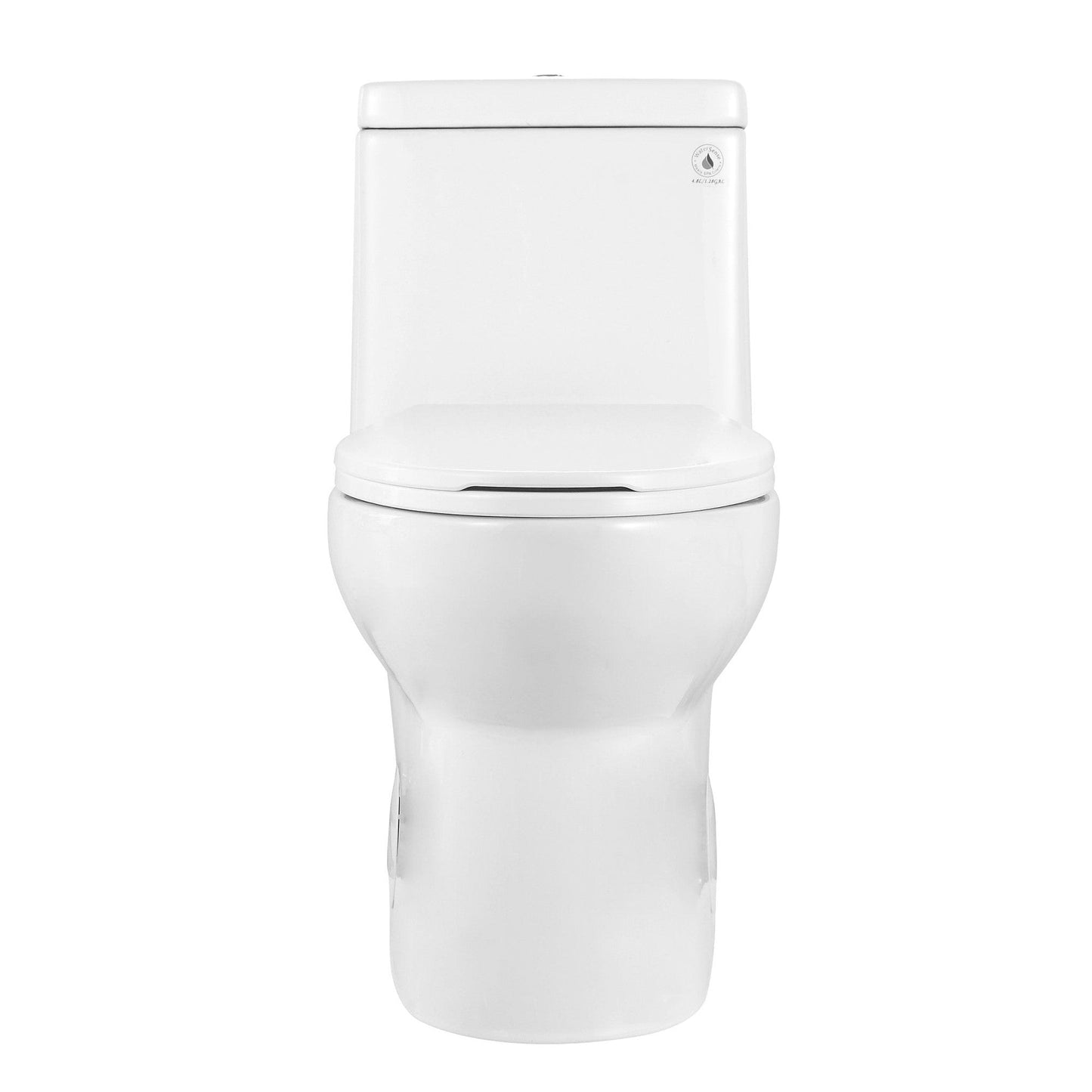

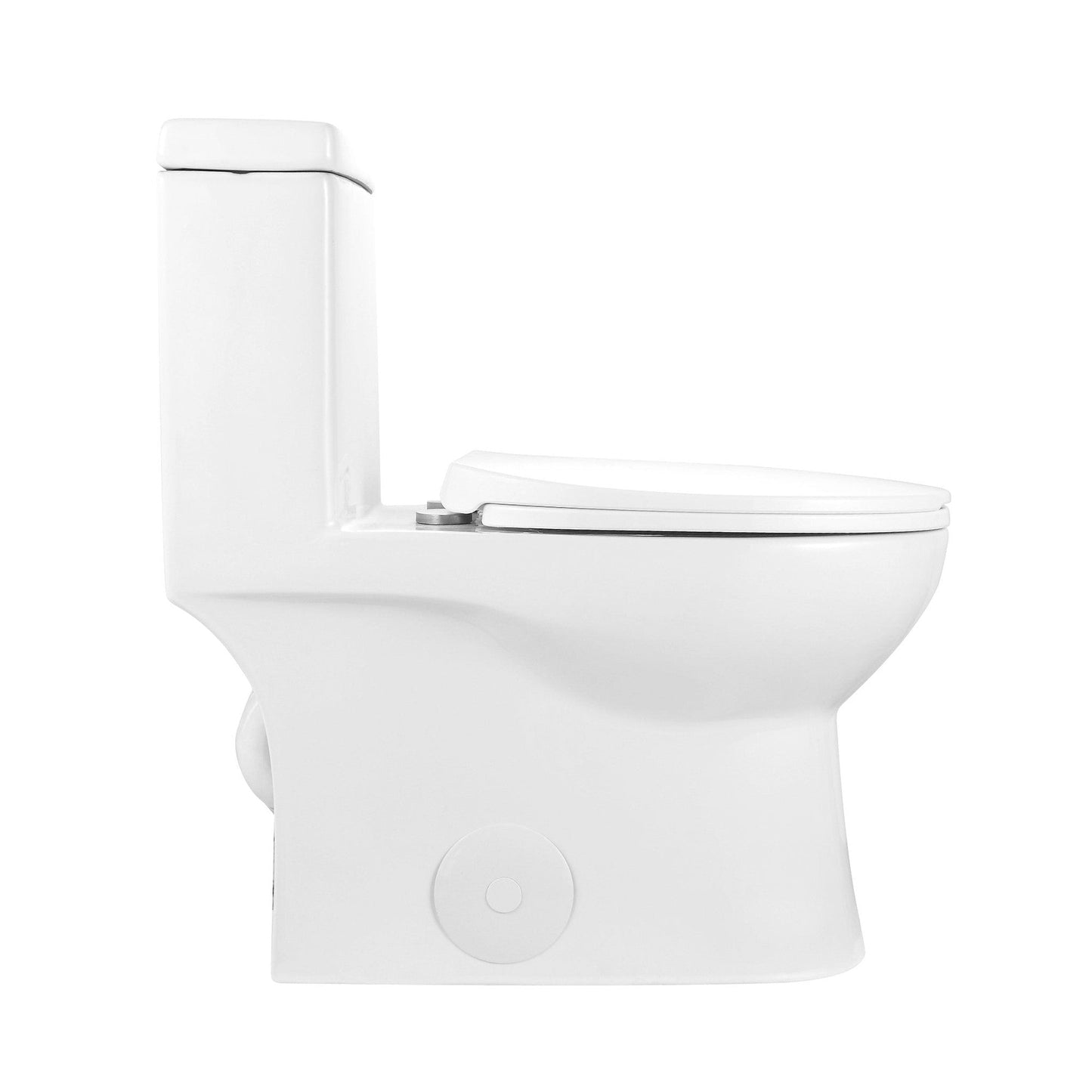

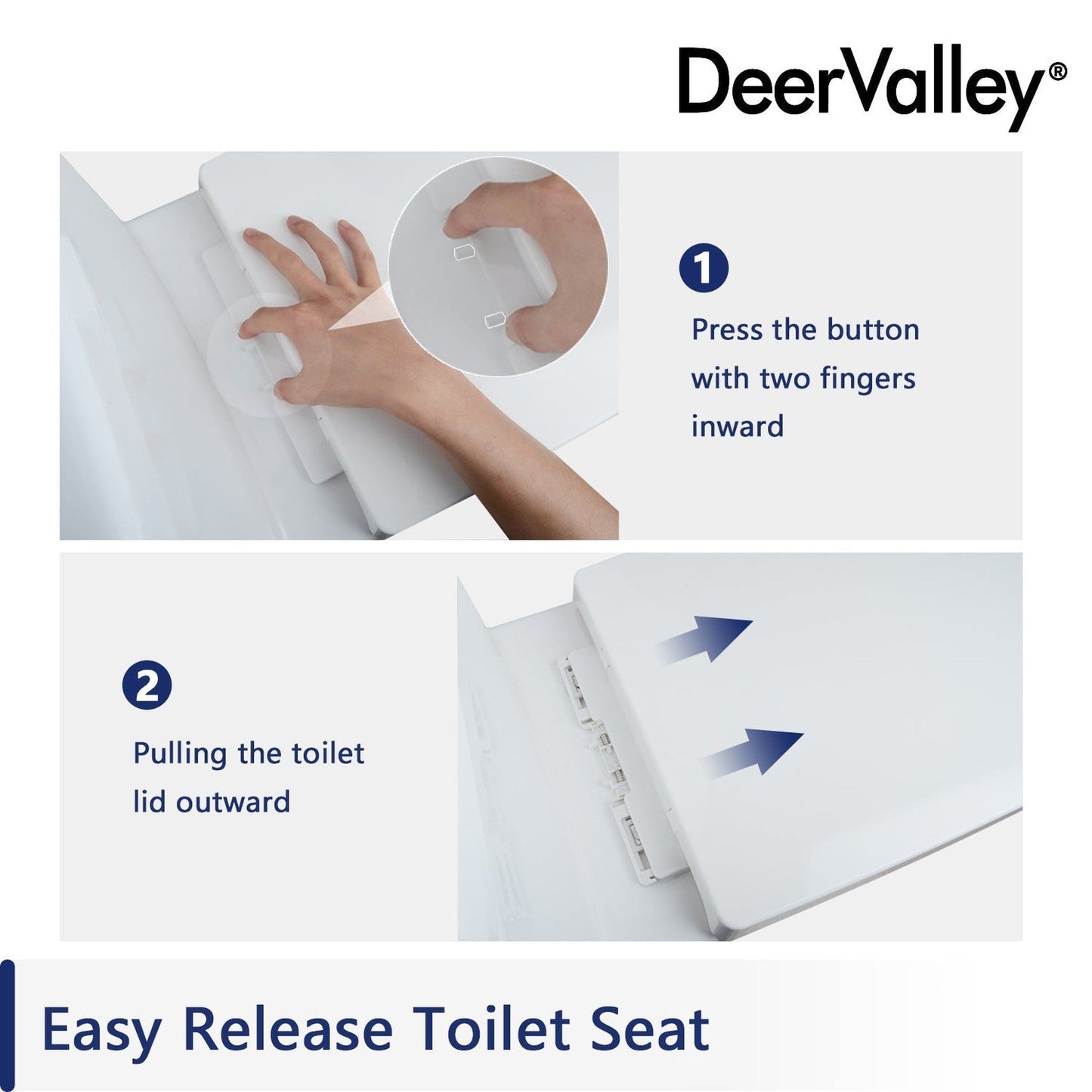

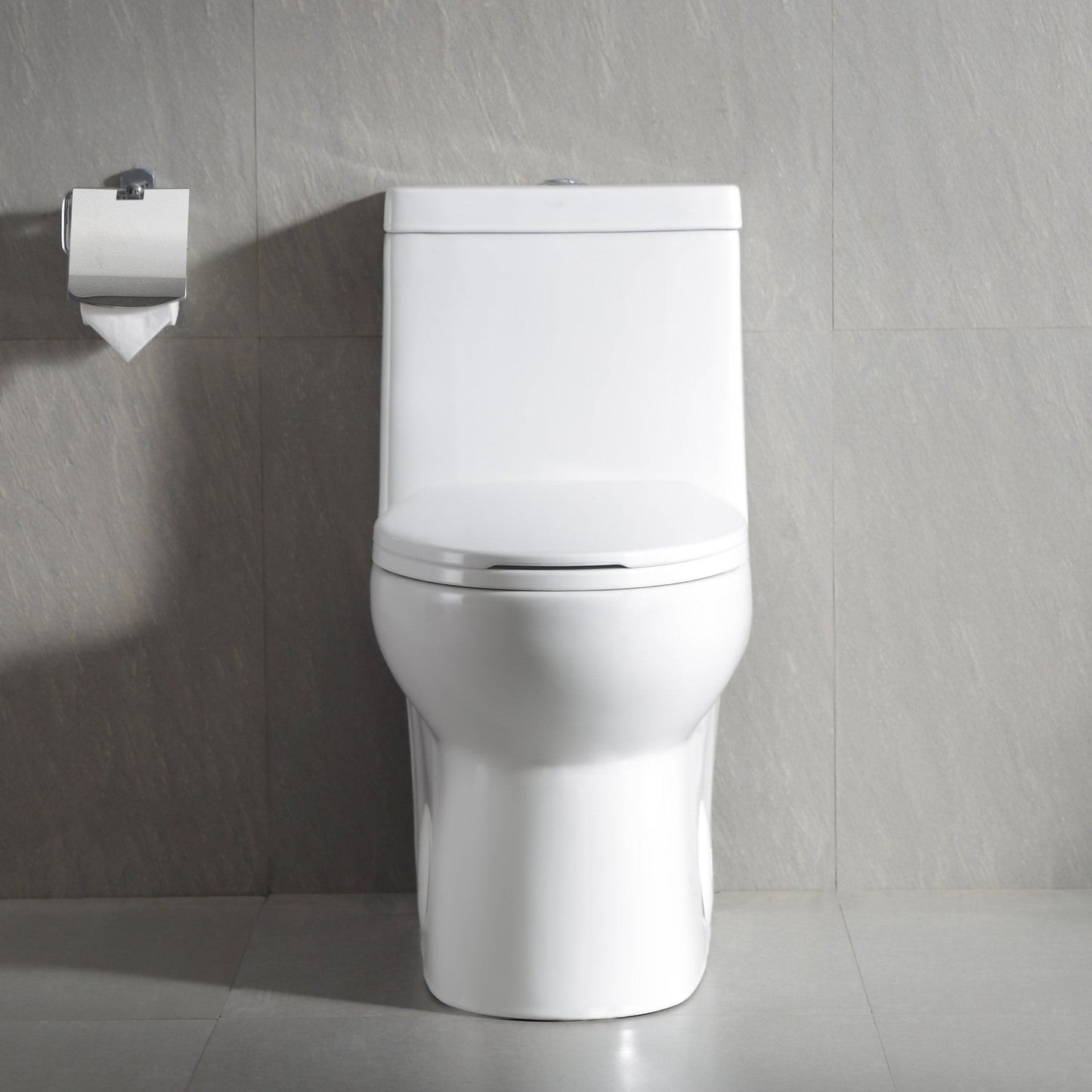

This DeerValley dual-flush elongated floor-mounted one-piece toilet features a contemporary and comfortable design. Its glazed surface adds a sleek touch to your bathroom decor. The toilet's seat lid closes silently, creating a peaceful bathroom environment for added relaxation. The Dual-Flush feature promotes water conservation, making it an environmentally-friendly choice. Installation is made easy with the included seat and wax rings. The one-piece toilet has a fully skirted surface, which not only enhances its aesthetic appeal but also makes cleaning a breeze.

What's Included

• Toilet
• Installation instruction

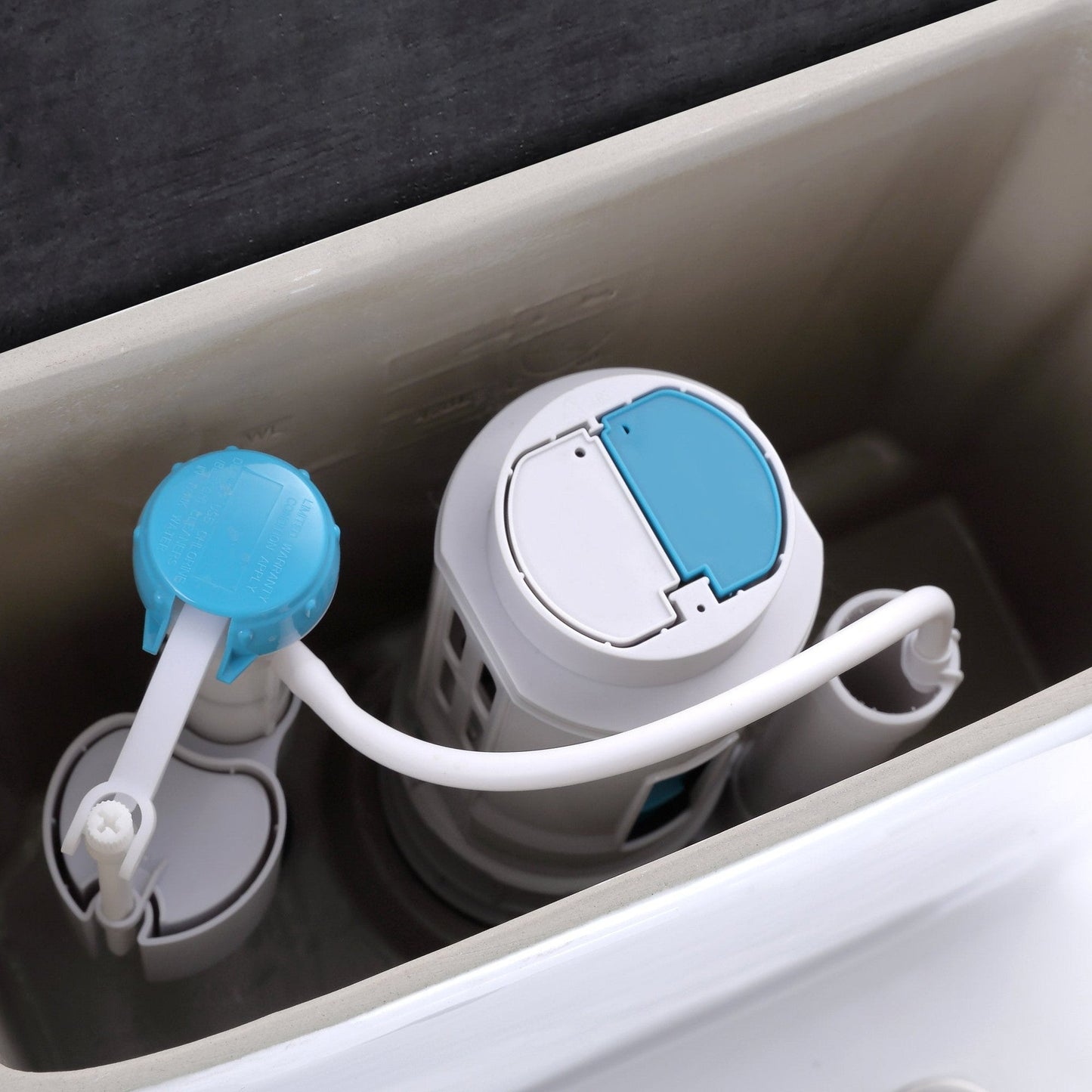

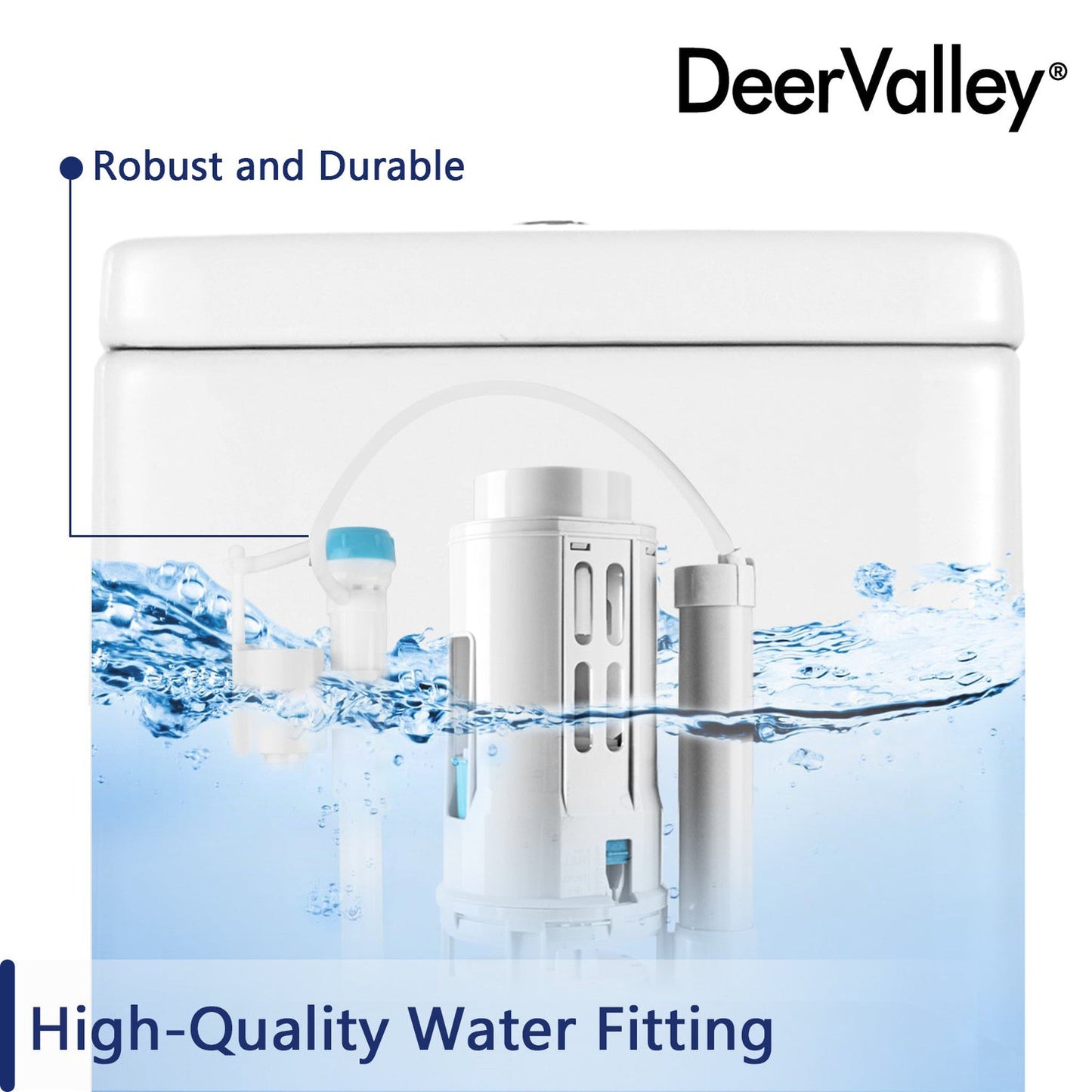

• Fill Valve: DV-F816V01
• Toilet Seat for DV-1F52816: DV-F068S11/DV-F068S21
• Toilet Seat for DV-1F52816B: DV-F816BS11
• Waxring and Bolts Kit: DV-F008P11
• Flush Button for DV-1F52816: DV-F812V31
• Flush Button for DV-1F52816B: DV-F816BV31
• Tank Lid for DV-1F52816: DV-F816T11
• Tank Lid for DV-1F52816B: DV-F816BT11
• Side Bolt Cover for DV-1F52816: DV-F026P21
• Side Bolt Cover for DV-1F52816B: DV-F026BP21
• Toilet Seat Installation Kit for DV-1F52816: DV-F816S01
• Toilet Seat Installation Kit for DV-1F52816B: DV-F816BS01

Features

• Comfortable Seating: This one-piece toilet offers a comfortable seat height of 16 3/4 inches, making it suitable for most users, except for exceptionally tall individuals. It's an excellent choice for small spaces and closets.
• Durable Craftsmanship: Crafted from ceramic and glazed through high-temperature calcination, this toilet is not only stylish but also highly durable. It resists pressure, corrosion, and scratches with ease.

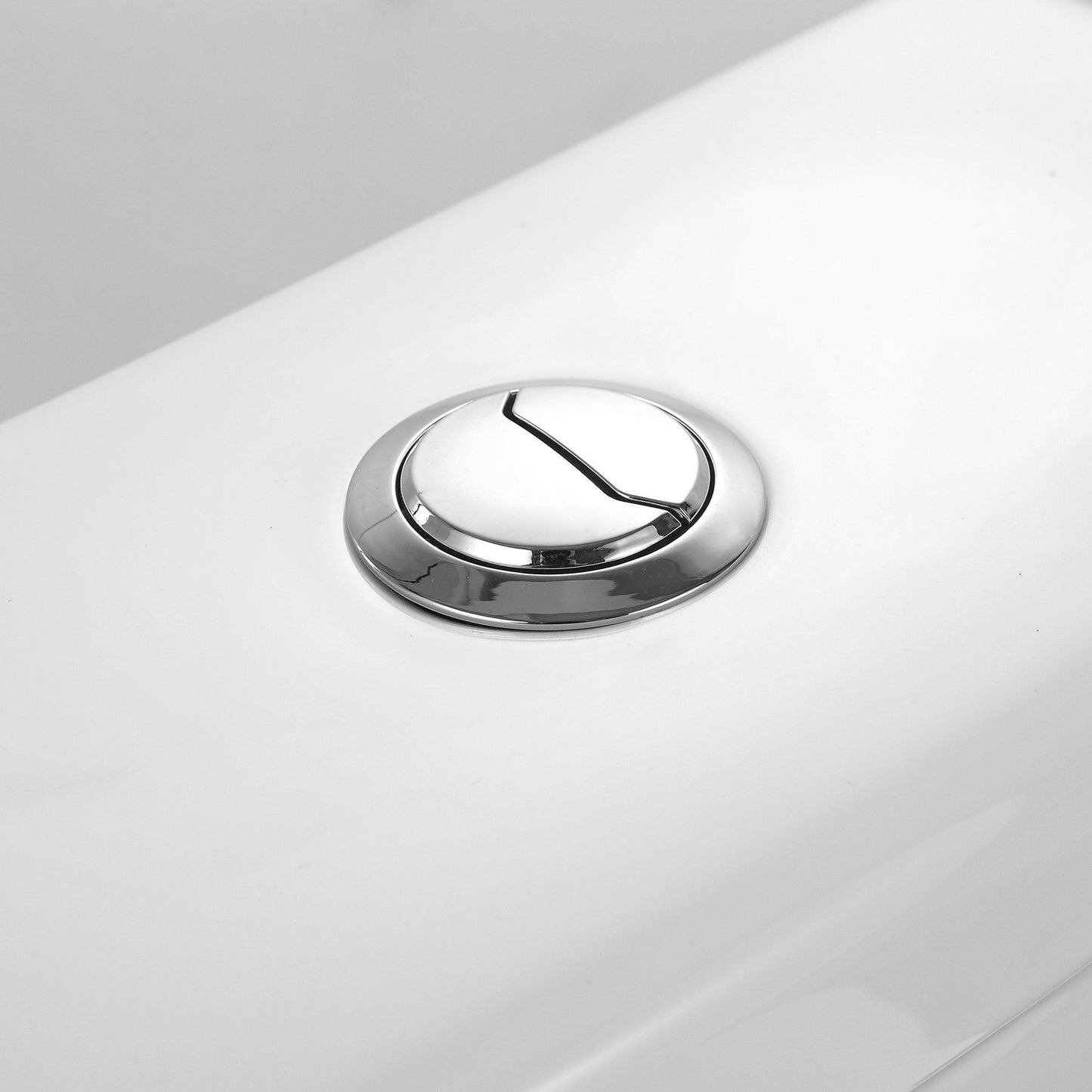

• Dual-Flush Efficiency: DeerVally highly efficient dual-flush toilet allows you to conserve water by choosing between 0.6 GPF or 1.28 GPF for different tasks. Its siphon flushing system, combined with a fully glazed flush, delivers powerful and quiet flushing performance, ensuring no clogs, leaks, or issues.

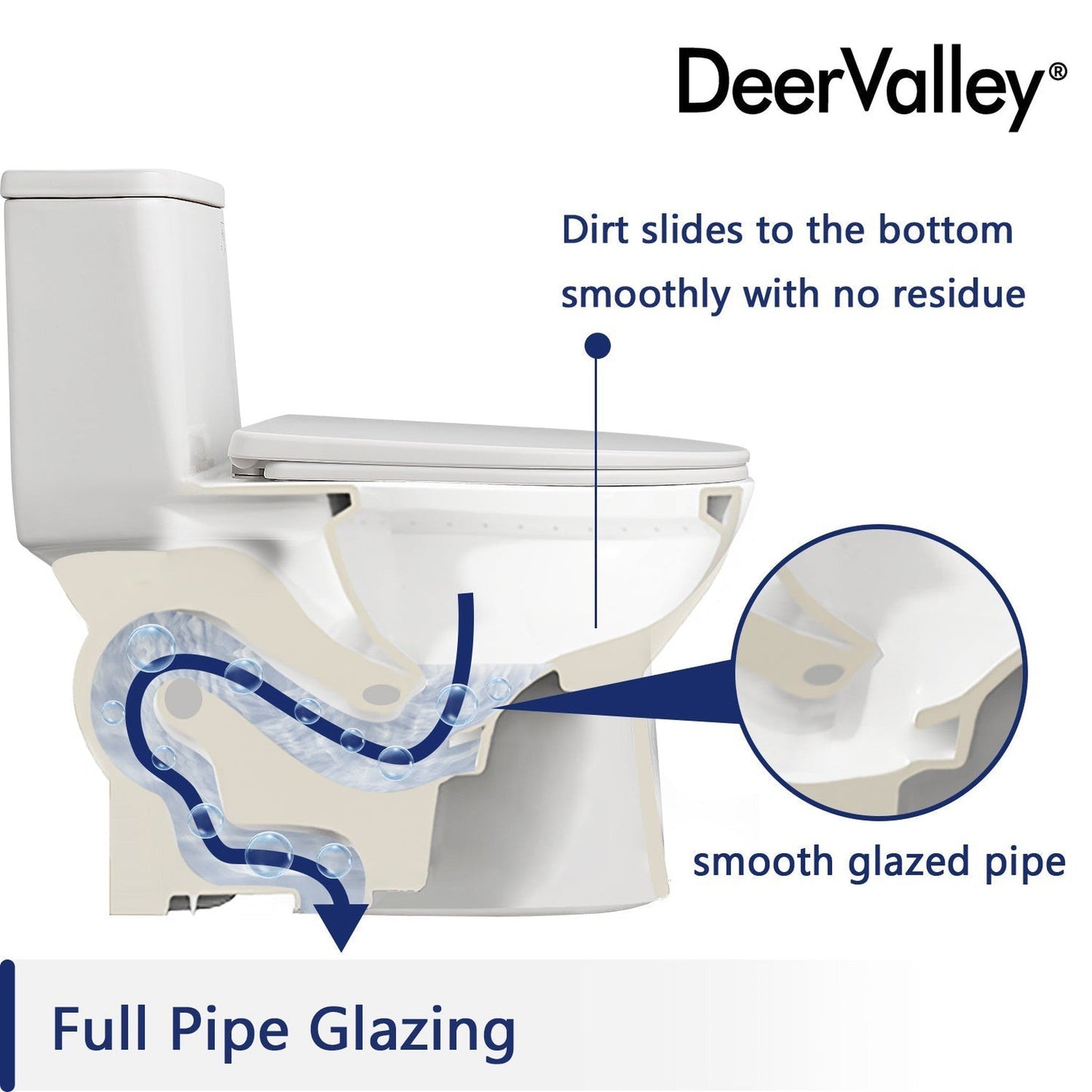

• Effortless Cleaning: Our one-piece toilet features a seamlessly concealed trapway and a fully glazed surface. Cleaning is a breeze with no tricky corners or grooves, ensuring a hygienic and trouble-free experience.
• Easy Installation: Installation is straightforward, but be sure to turn off the water supply before installing this floor-mounted one-piece toilet for a trouble-free setup.

Certifications

	cUPC: Uniquely blend safety, hygiene, quality, and performance.
	EPA: Seamlessly blend comfort with environmental responsibility, excelling in performance.
	CEC: Certified user experience, energy efficiency, and environmental preservation.

Specifications

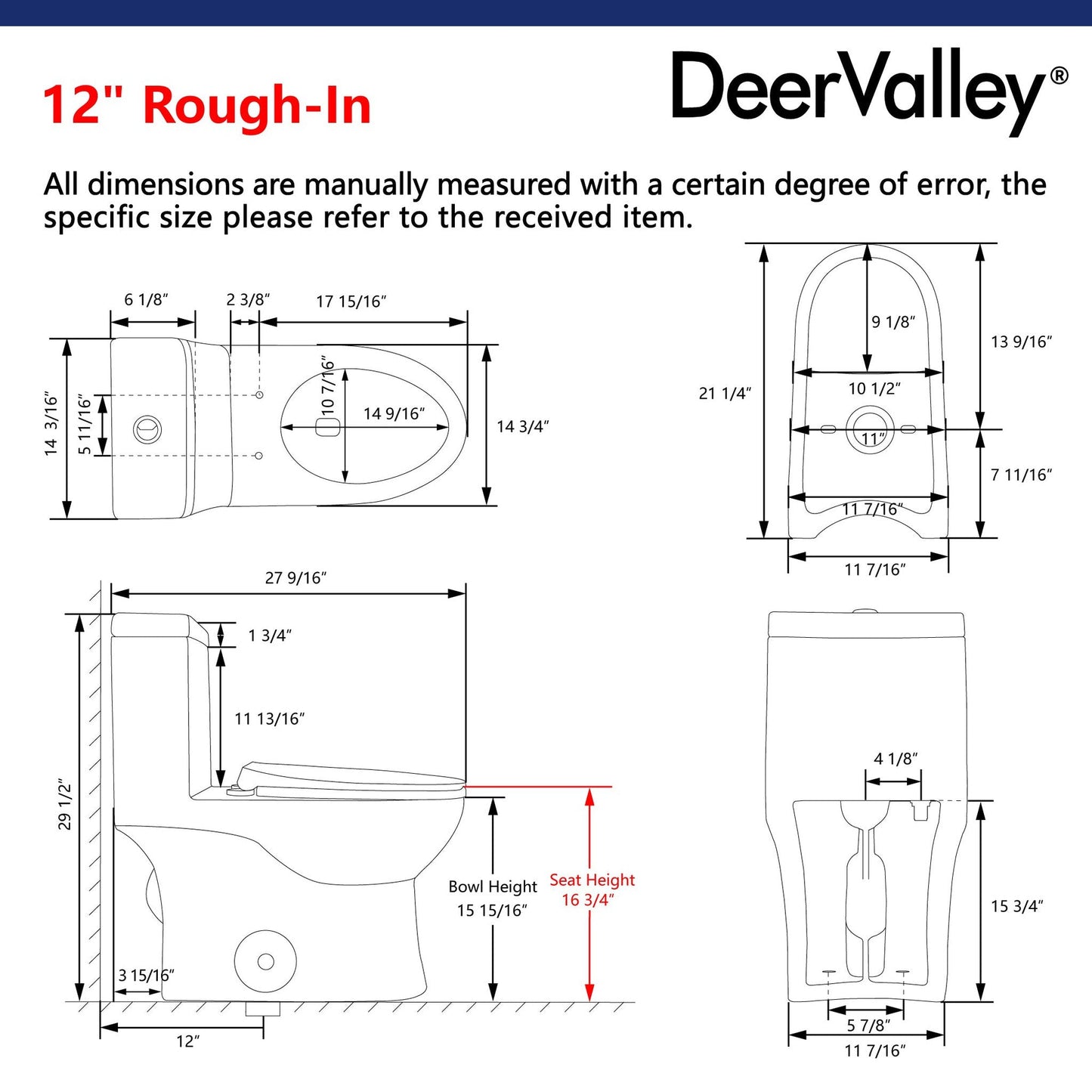

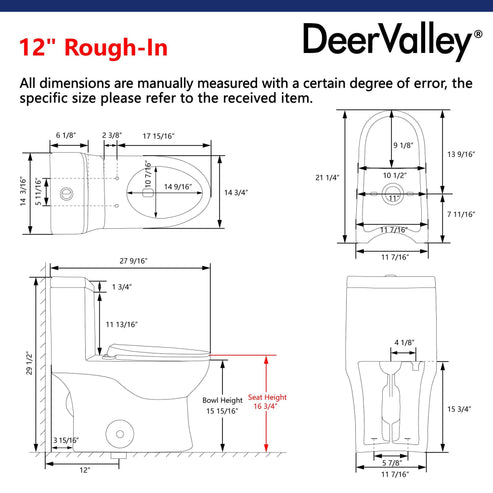

Dimensions

Warranty

LIMITED WARRANTY COVERAGE

1 YEAR LIMITED WARRANTY
DeerValley products are made with quality materials and excellent craftsmanship to provide the customers a long-lasting product. in the case of any defects in materials or craftsmanship under regular use were inspected in the first one year of delivery, DeerValley will provide replacement parts at no charge, or at its option, replace any product or part of the product that is deemed defective, under normal installation, use, service, and maintenance. This warranty applies only to the original purchaser. Proof of purchase will be required in the case of a claim. SCRATCHES ARE NOT COVERED UNDER WARRANTY.

The manufacturer warrants this product to be free of manufacture defects during the above mentioned warranty time. Please keep a copy of the original invoice as proof of purchase.

DeerValley will, at its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of delivery); or (3) issue a credit to be applied toward the purchase of a new DeerValley product shipping/delivery charges may apply and are in DeerValley's sole discretion.

DeerValley recommends the installation to be made by a licensed, professional plumber. DeerValley will not be held responsible for any damage or product failure due to improper installation, misuse, or failure to use a licensed professional. DeerValley is not responsible for any removal or installation cost.

This limited warranty shall not apply to goods which have been subject to accident, negligence, improper installation, product abuse, product misuse, or use of cleaners containing abrasives, alcohol or other organic solvents, whether performed by a contractor, service company, or yourself, are excluded from this warranty.

DeerValley responsibility under this limited warranty is limited to only replacement parts and no other costs. DeerValley will not be responsible for labor charges and/or damage incurred by installation, repair or replacement, not for any indirect incidental or consequential damages, losses, injury or costs of any nature relating to this product. Except as provided by law, this limited warranty is in lieu of and excludes all other warranties, conditions, and guarantees, whether expressed or implied, statutory or otherwise, including without restriction those merchantability of fitness for use.

RESPONSIBILITIES OF OTHERS
Inspecting the unit prior to installation is the responsibility of the installer or building contractor who acts on behalf of the user. They are responsible for insuring the unit is free of defect or damage. Notices are placed on and in the unit and on the shipping carton advising the installer of this responsibility. In the event of a problem, the unit must not be installed. DeerValley is not responsible for failures or damage that could have been discovered, repaired, or avoided by proper inspection and testing prior to installation.

Damage occurring in transit is the responsibility of the carrier. The user or installer MUST open the crate and inspect the unit for damage when it is delivered. If damage is discovered, it must be reported immediately to the seller and the carrier in writing, and an inspection requested. Failure of the carrier to respond should be reported to the seller and the carrier. Your freight claims should be filed promptly thereafter.

LIMITATIONS AND EXCLUSIONS
This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance, alteration of the product, or failure to follow care or installation instructions enclosed with your product. This warranty is void if the DeerValley product is subject to alteration, or if repairs are attempted by anyone other than an authorized agent of DeerValley. This warranty does not extend to plumbing or components installed by dealers, installers or by any party other than DeerValley.

DeerValley will not be liable for loss of use of the DeerValley inconvenience, or any other incidental or consequential costs, expense or damages. Please note that some states do not allow the exclusion or limitation of incidental damages.

DISCLAIMER
Except as expressly provided, there shall be no warranty or obligation, express or implied, oral or statutory. No dealer or other person has the authority to make any warranties or representations concerning DeerValley or its products. In no event shall DeerValley be held responsible for any such warranties or representations.

WARRANTY SERVICE
NOTE: When requesting warranty, be sure to have the following:

• Copy of original invoice
• Date of installation
• Description and pictures of defect
• Model number or description of model

To obtain warranty service and replacement part, please contact DeerValley Customer Service. DeerValley will determine whether to repair or replace your product, issue a refund, or issue a credit.

Documents & Files

• Specification Sheet
• Installation Instructions
• Warranty

Videos

One-Piece Toilet Installation Guide

Please note that the toilet model (DV-1F52812) featured in the video may show slight differences

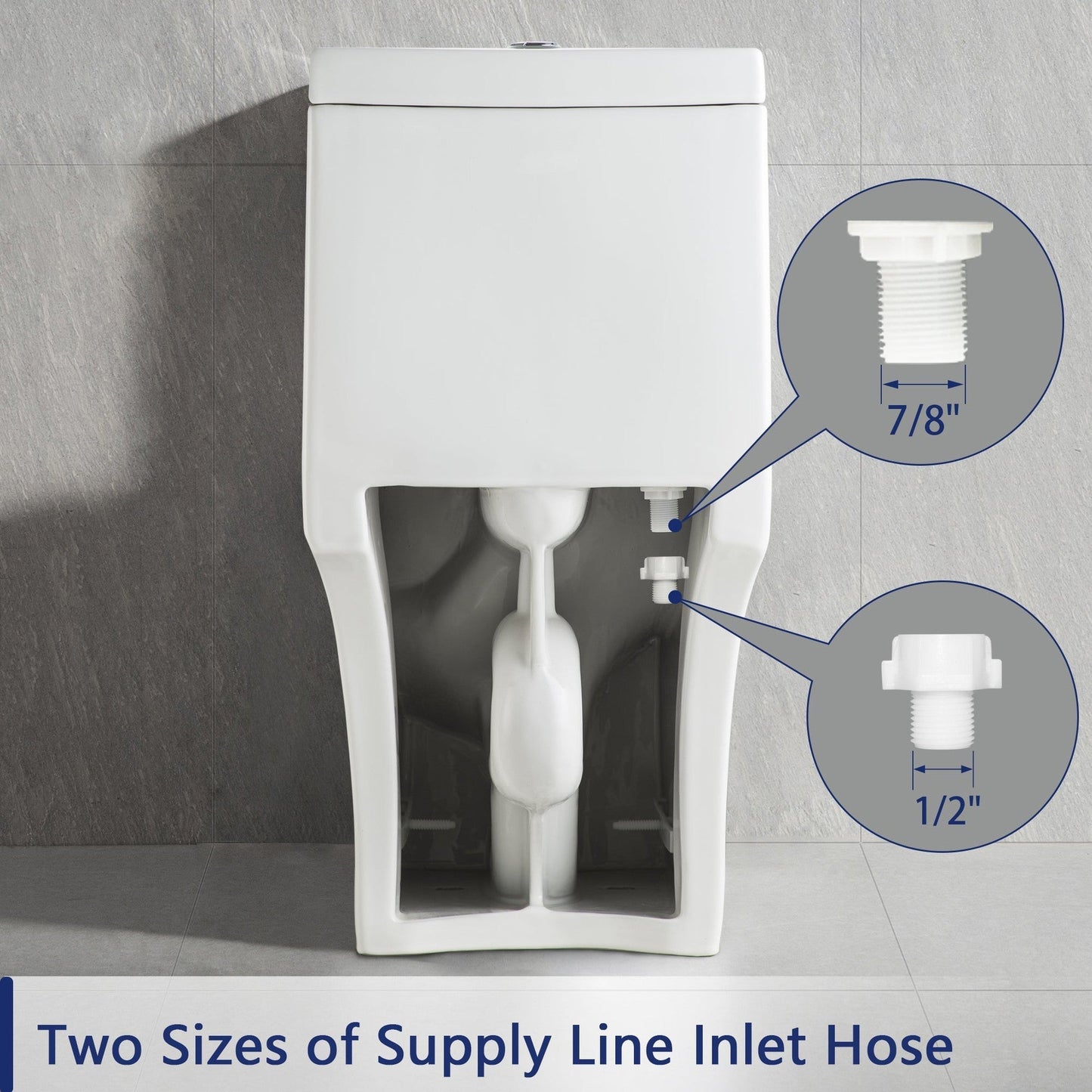

Supply Line Installation Guide

Frequently Asked Questions

PP Seat vs. UF Seat
