SKU:DV-1F52508

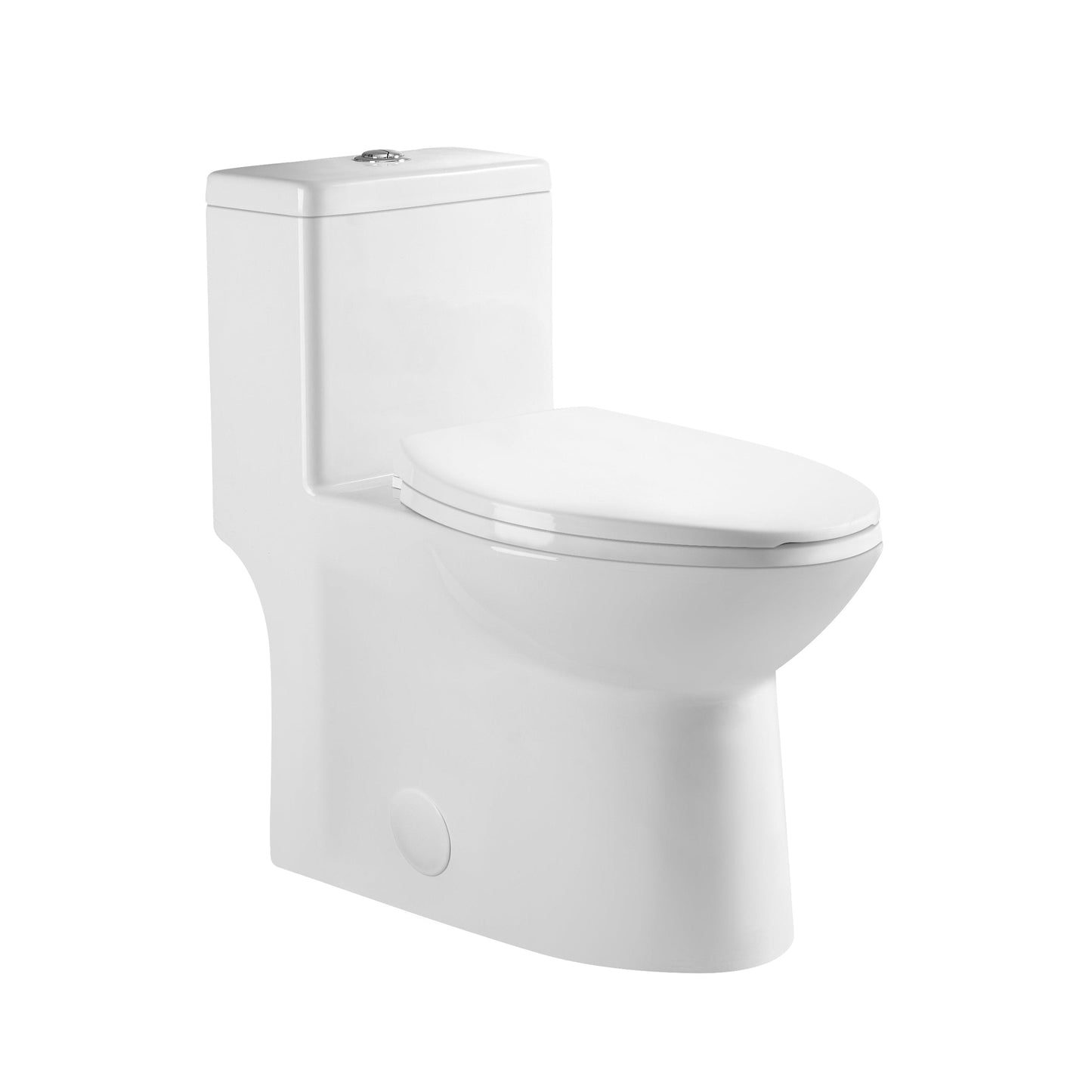

DeerValley Symmetry 1.1/1.6 GPF Dual Flush Elongated White Ceramic Comfort Height One-Piece Toilet With Soft Closing Seat

DeerValley Symmetry 1.1/1.6 GPF Dual Flush Elongated White Ceramic Comfort Height One-Piece Toilet With Soft Closing Seat

Regular price $299.99
Regular price Sale price $299.99
Sale Sold out
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

This DeerValley one-piece toilet is made from incredibly hard-wearing ceramic that can improve durability. A fully skirted trapway is both easy to clean and visually appealing, to be extremely resistant to scratches and stains. Flush can achieve a great MaP score which keeps the toilet clean as a new one after every flush. A compact elongated bowl toilet will make you feel more comfortable.

What's Included

  • Toilet Seat
  • Wax Ring Kit
  • Bolts

Parts Numbers

  • DV-F508T11 : Tank Lid
  • DV-F508S11 : Toilet Seat
  • DV-F508S01 : Toilet Seat Installation Kit
  • DV-F508V01 : Water Fitting
  • DV-F508P11 : Wax Ring and Toilet Bolts
  • DV-F508P21 : Side Cover Parts
  • DV-FMYV51 : Supply Line Connector

Features

  • One-piece construction eliminates the gap where dirt and grime collect for easy cleaning
  • Constructed with durable ceramic and finished with a glaze for cleaner, long-lasting use
  • Includes toilet, pre-installed soft closing toilet seat, pre-installed flush valve, high-quality wax ring, floor bolts, and also installation instruction

Specifications

Item Number DV-1F52508
UPC Code 751313645241
Manufacturer DeerValley
Series Symmetry
Type One Piece Standard Toilet
Material Ceramic
Gallons per flush 1.1 / 1.6 GPF
Flush type Dual Siphon Flush System
Installation Floor mount
Bowl shape Elongated bowl
Certificate cUPC & UPC certified

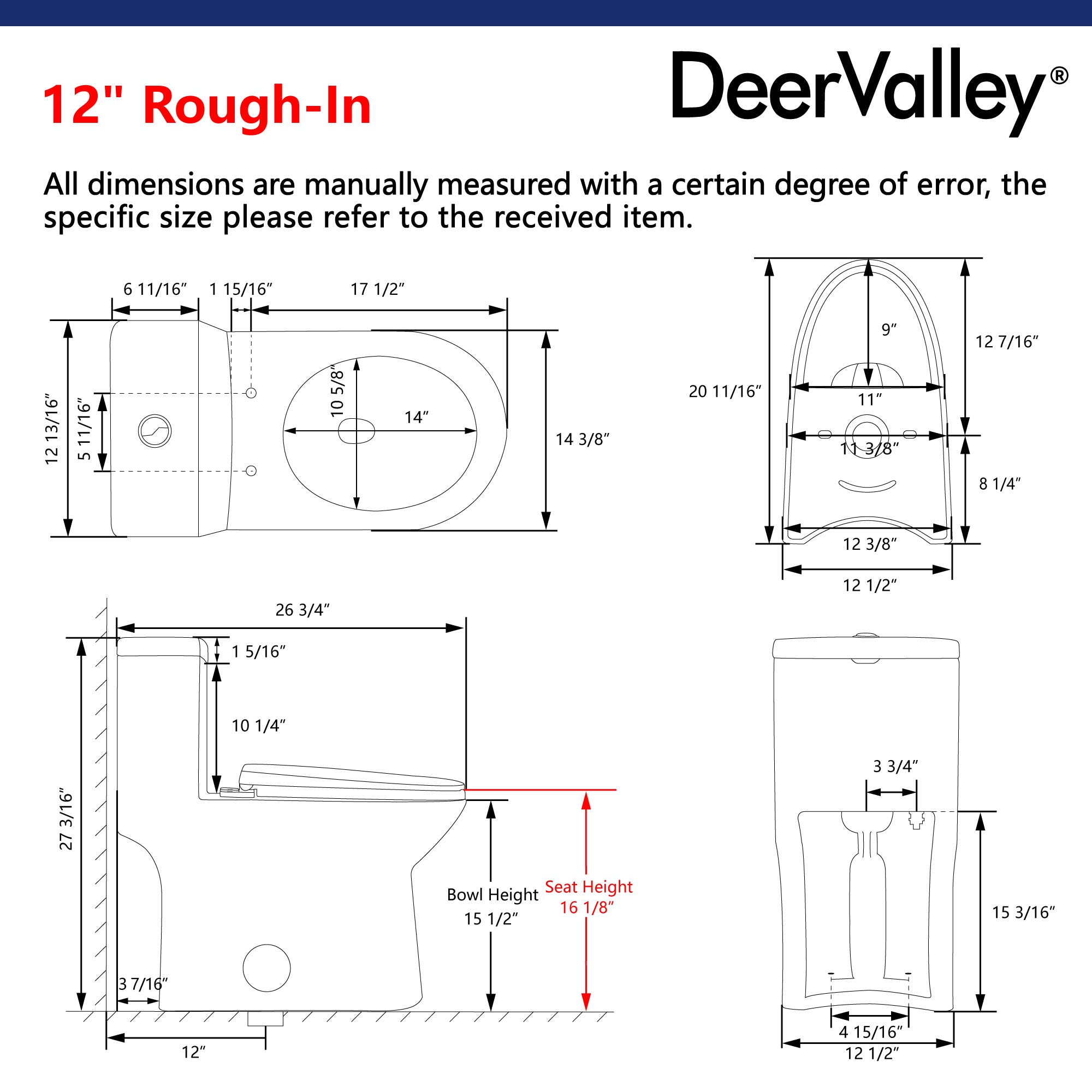

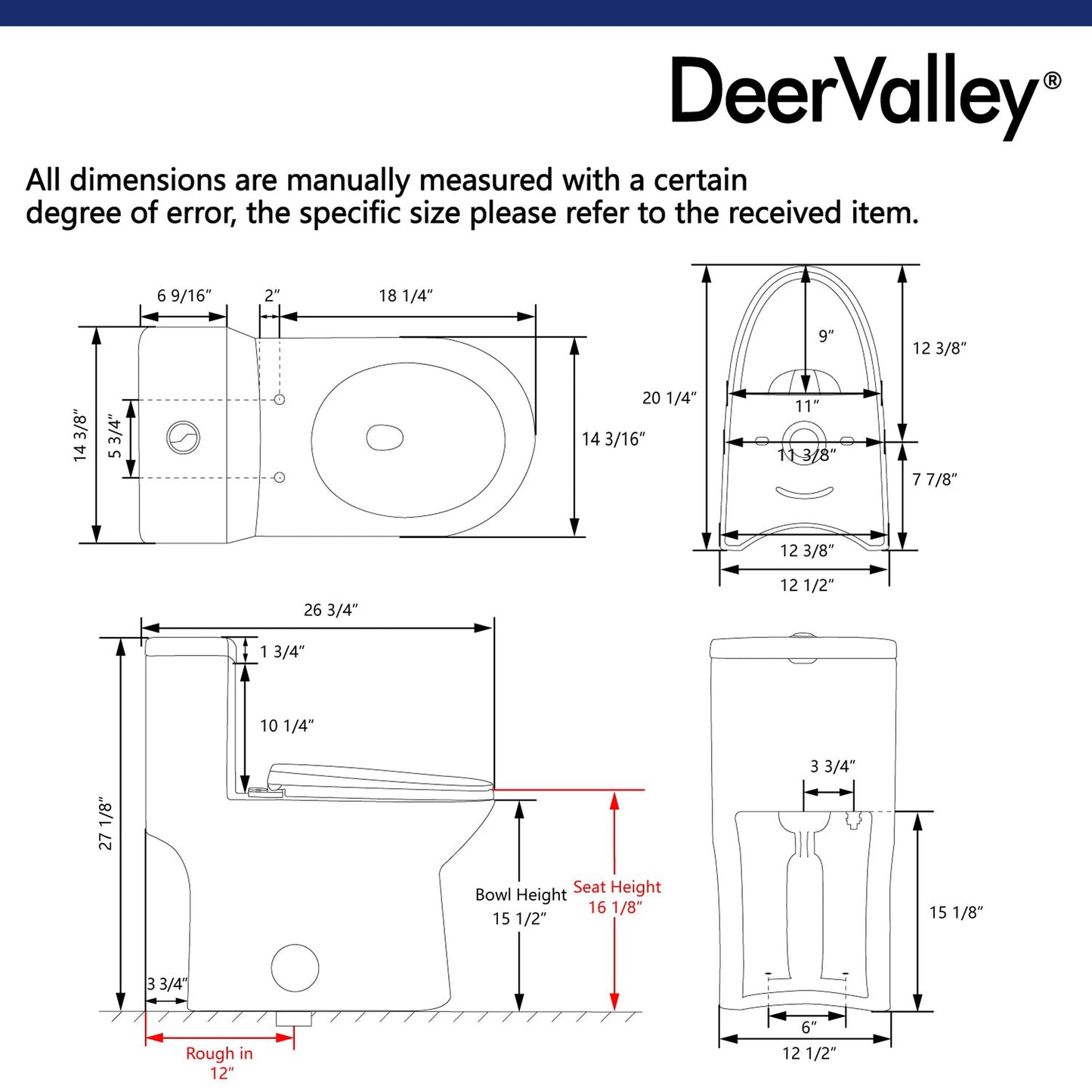

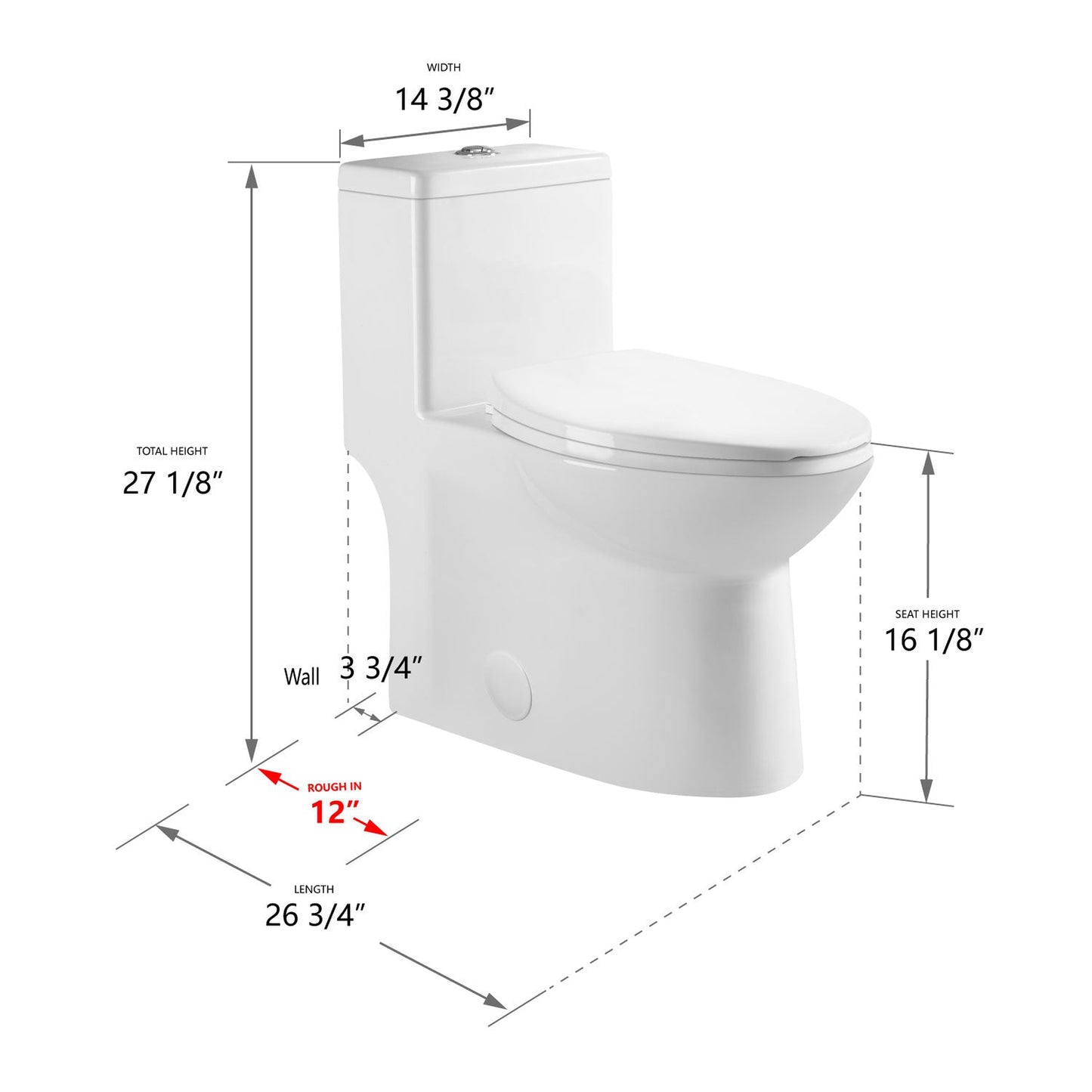

Overall Dimensions 26.97" H x 13.98" W x 26.38" L
Tank Dimensions 10.28" H x 6.69" W x 12.80" L
Tank Lid Dimensions 1.30" H x 6.69" W x 12.80" L
Toilet Seat Dimensions 1.97" Back/ 1.18" Front H x 13.98" W x 17.52" L
Toilet Seat Inside Ring Dimensions 7.87" W x 11.89" L
Bowl Dimensions 10.63" W X 13.98" L
Toilet Seat Height - Top to Bottom 16.14"
Bowl Height - Top to Bottom 15.47"
Trap-way Diameter 2.13"
Rough In Size 12.01"
Bolts Spread Distance 5.71"
Distance from the Seat Installation Hole to the Tank 1.97"
Distance from the Back of the Toilet to the Wall 3.43"
Toilet Installation Hole Distance 4.92"
Height from the Bottom of the Water Tank to the Ground 15.16"
Distance Between the Center of Adapter and the Center of Trap-way 3.74"
Toilet Base Dimension(Length & Width) 20.71" x 12.48"
Overall Product Weight 96 lbs.

Dimensions

Warranty

LIMITED WARRANTY COVERAGE

1 YEAR LIMITED WARRANTY
DeerValley products are made with quality materials and excellent craftsmanship to provide the customers a long-lasting product. in the case of any defects in materials or craftsmanship under regular use were inspected in the first one year of delivery, DeerValley will provide replacement parts at no charge, or at its option, replace any product or part of the product that is deemed defective, under normal installation, use, service, and maintenance. This warranty applies only to the original purchaser. Proof of purchase will be required in the case of a claim. SCRATCHES ARE NOT COVERED UNDER WARRANTY.

The manufacturer warrants this product to be free of manufacture defects during the above mentioned warranty time. Please keep a copy of the original invoice as proof of purchase.

DeerValley will, at its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of delivery); or (3) issue a credit to be applied toward the purchase of a new DeerValley product shipping/delivery charges may apply and are in DeerValley's sole discretion.

DeerValley recommends the installation to be made by a licensed, professional plumber. DeerValley will not be held responsible for any damage or product failure due to improper installation, misuse, or failure to use a licensed professional. DeerValley is not responsible for any removal or installation cost.

This limited warranty shall not apply to goods which have been subject to accident, negligence, improper installation, product abuse, product misuse, or use of cleaners containing abrasives, alcohol or other organic solvents, whether performed by a contractor, service company, or yourself, are excluded from this warranty.

DeerValley responsibility under this limited warranty is limited to only replacement parts and no other costs. DeerValley will not be responsible for labor charges and/or damage incurred by installation, repair or replacement, not for any indirect incidental or consequential damages, losses, injury or costs of any nature relating to this product. Except as provided by law, this limited warranty is in lieu of and excludes all other warranties, conditions, and guarantees, whether expressed or implied, statutory or otherwise, including without restriction those merchantability of fitness for use.

RESPONSIBILITIES OF OTHERS
Inspecting the unit prior to installation is the responsibility of the installer or building contractor who acts on behalf of the user. They are responsible for insuring the unit is free of defect or damage. Notices are placed on and in the unit and on the shipping carton advising the installer of this responsibility. In the event of a problem, the unit must not be installed. DeerValley is not responsible for failures or damage that could have been discovered, repaired, or avoided by proper inspection and testing prior to installation.

Damage occurring in transit is the responsibility of the carrier. The user or installer MUST open the crate and inspect the unit for damage when it is delivered. If damage is discovered, it must be reported immediately to the seller and the carrier in writing, and an inspection requested. Failure of the carrier to respond should be reported to the seller and the carrier. Your freight claims should be filed promptly thereafter.

LIMITATIONS AND EXCLUSIONS
This warranty does not cover instances of negligence, misuse, abuse, improper installation, carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, misapplication, damages caused by improper maintenance, alteration of the product, or failure to follow care or installation instructions enclosed with your product. This warranty is void if the DeerValley product is subject to alteration, or if repairs are attempted by anyone other than an authorized agent of DeerValley. This warranty does not extend to plumbing or components installed by dealers, installers or by any party other than DeerValley.

DeerValley will not be liable for loss of use of the DeerValley inconvenience, or any other incidental or consequential costs, expense or damages. Please note that some states do not allow the exclusion or limitation of incidental damages.

DISCLAIMER
Except as expressly provided, there shall be no warranty or obligation, express or implied, oral or statutory. No dealer or other person has the authority to make any warranties or representations concerning DeerValley or its products. In no event shall DeerValley be held responsible for any such warranties or representations.

WARRANTY SERVICE
NOTE: When requesting warranty, be sure to have the following:

  • Copy of original invoice
  • Date of installation
  • Description and pictures of defect
  • Model number or description of model

To obtain warranty service and replacement part, please contact DeerValley Customer Service. DeerValley will determine whether to repair or replace your product, issue a refund, or issue a credit.
