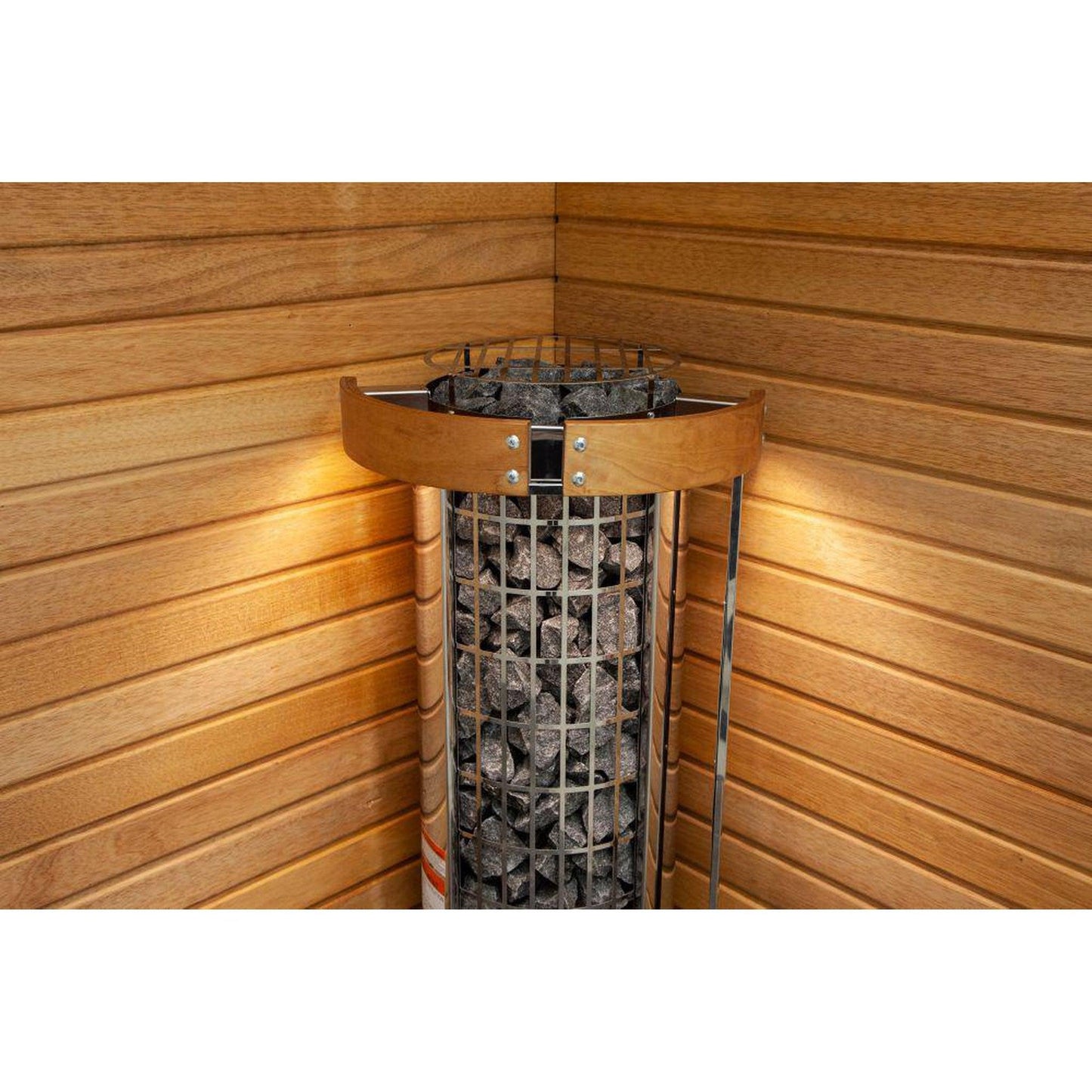

The Harvia Cilindro H electric heater has an outer casing that is partially open at the front, allowing users to enjoy the benefits of a large stone surface and place the heater containing a massive amount of stones in a small space. You can adjust between gentle and sharp steam by throwing water in the middle or on top of the stone pillar.
Harvia Cilindro PC110E, a modern steel pillar style sauna heater available in 240V single phase, is engineered to power sauna rooms up to 636 cubic feet (CF). The Harvia Cilindro electric heater contains a massive amount of stones. Thanks to the grate-like outer shell, each bather can adjust the nature of the steam: soft when throwing water onto the side of the heater and sharp when throwing water straight on top of the stone pillar. Cilindro is impressive to both look at and experience.
The Harvia Cilindro PC110E sauna heating unit required Xenio control for operation is sold separately.
Click Here To Know More About Sauna
|
What's Included
- Sauna Heater
- Installation and operation manual
- 2-Year Warranty (Consumer Use)
Not Included (Sold Separately)
- Digital Control
- Sauna Stones (Requires 6 Boxes)
- Safety Railing
- Embedding Flange
Features
- Side-wall or corner of room install
- Stainless Stee construction
- 10.5kW
- For sauna rooms from 141 to 636 cu. ft.
- Requires a minimum of 264 lbs of stones (6 box-AC3000)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Stainless Steel elements
- Direct rock-to-heating element contact
- Industrial-grade, serviceable heating elements
- Designed, engineered, and made in Finland
- Dimensions: 16" W (406mm) x 15" D (381mm) x 45" H (1143mm)
- 2-Year Warranty (Consumer Use)
- Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
Specifications
Model | Cilindro PC110E |
User Group | Households |
Power Output | 10.5 kW |
Prime Energy/Fuel | Electric (high voltage 208V 3~) |
Control Type | Controlled by a separate control unit |
Installation Type | Floor |
Installation Orientation | Vertically |
Color | Stainless Steel |
Main Material | Steel |
Construction Material | Stainless Steel |
Certifications & Listing | ETL |
Mountable Inside Sauna Room? | Yes |
Contains Wood? | No |
Hardwired | Yes |
Certificates | UL |
Technical documentation languages | EN, FR |
Ambient temperature min | 0°C (32°F) |
Ambient temperature max | 60°C (140°F) |
Use Environment | Interior - wet area |
Warranty Consumer (months) | 24 |
Warranty Professional (months) | 12 |
Warranty Community (months) | 12 |
Product Height | 45" (1143mm) |
Product Width | 16" (406mm) |
Product Depth | 15" (381mm) |
Heater Weight | 46.3 lbs |
Distances
Safety distance front (non-combustible materials) | 100 mm |
Safety distance side (non-combustible materials) | 30 mm |
Safety distance behind (non-combustible materials) | 30 mm |
Safety distance (Ceiling) | 830 mm |
Safety distance (Floor 3ph) (depends on connections and therefore from output, star/delta) | 70 mm |
Safety distance (Floor 1ph) (depends on connections and therefore from output, star/delta) | 70 mm |
Room min. recommended volume | 4 m³ |
Room max. recommended volume | 18 m³ |
Room min. height(depends on connections and therefore from output, star/delta) | 1980 mm(74.80) |
Electrical Specifications
Power table | 10.5 |
IP Class | IPX4 |
Electrical Frequency | 60 Hz |
Electrical Group Options | 240VAC, 1Ph, 60Hz |
Logistics
EAN | 6417659019927 |
Customs tariff number EU | 85162999 |
ETIM number | EC001884 |
UNSPSC number | 40101800 |
Sales unit | pcs |
Quantity | 1 |
Packaging materials | Cardboard |
Package height | 1145 mm(45.07") |
Package width | 420 mm(16.53") |
Package depth | 420 mm(16.53") |
Gross weight | 24 kg |
Cardboard weight | 1.35 kg |
Sales lot 2 Quantity | 6 |
Sales lot 3 Quantity | 12 |
Warranty
Documents & Files
- Harvia Cilindro PC110E Datasheet
- Harvia Cilindro Installation Manual
-
Harvia Heater Stones Additional Product User Instruction
- Harvia Heater & Element Chart
- ETL Declaration of Conformity
