Harvia KIP80B 8 kW 240V 1PH Stainless Steel Wall Mounted Electric Sauna Heater With Built-in Time and Temperature Controls
Harvia KIP80B 8 kW 240V 1PH Stainless Steel Wall Mounted Electric Sauna Heater With Built-in Time and Temperature Controls
Sauna Stones
Optional Accessories
-- Please Select --
Decorative Stones
Bucket & Ladle Set
Buckets
Ladles
Bath Brush
No, Thank You
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

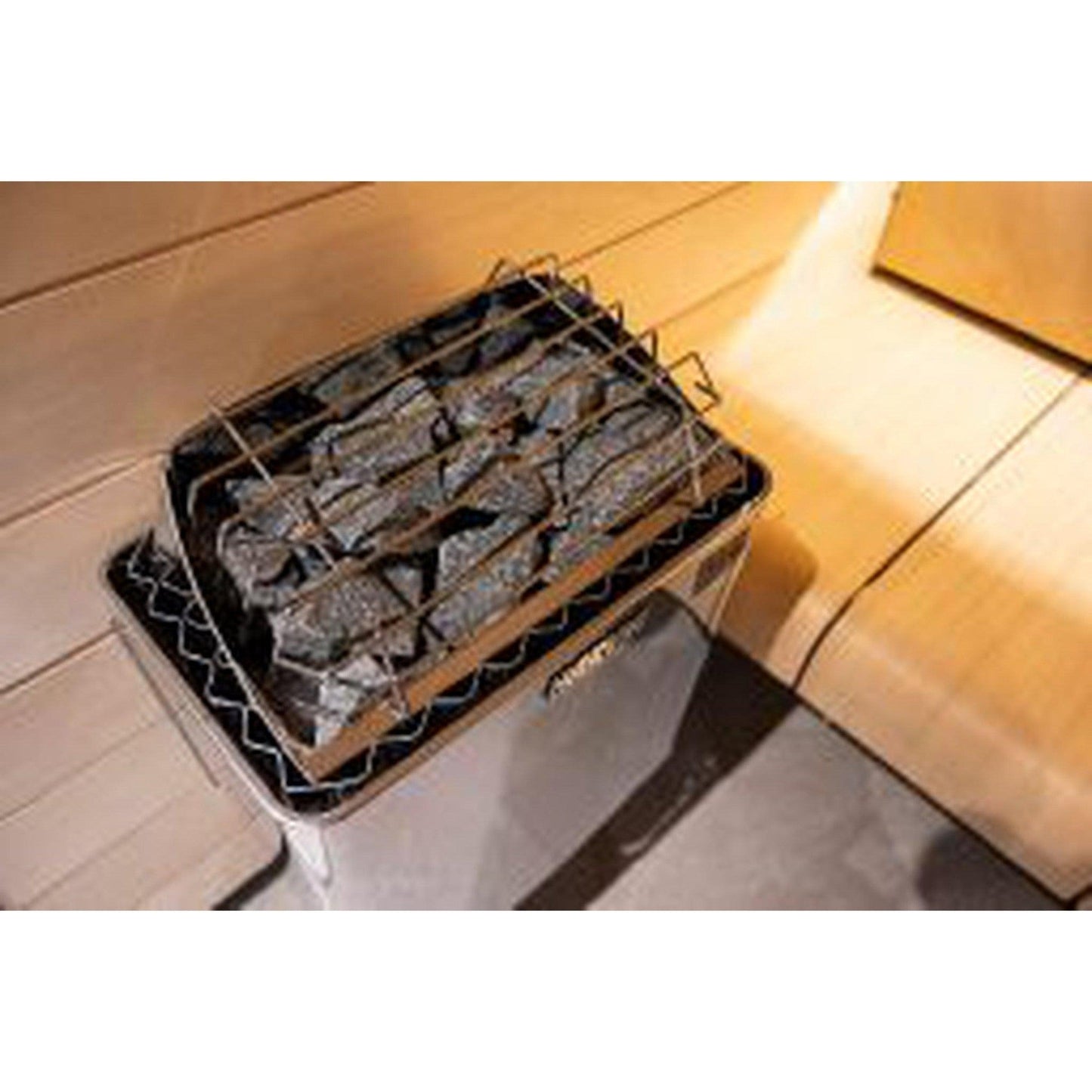

The Harvia KIP heater is a traditional wall-mounted sauna heater with built-in controls. The heater is constructed with stainless steel and includes a protective stone guard. The heater has a large stone cavity for maximum heat release, and the dual wall construction allows the exterior to remain cool to the touch. The left dial controls the temperature and the right dial is the on/off control along with a delay timer. You can set the heater to turn on up to 8 hours after it is set, and the heater will automatically shut off after 60 minutes of operation.
The Harvia KIP80B sauna heater is designed to power home saunas up to 424 adjusted cubic feet (ACF). The Harvia KIP80B features durable stainless-steel construction, industrial-grade heating elements, built-in control panel, and several other innovative components. Designed and made in Finland, the KIP80B heater generates an intense, satisfying heat each sauna session. The sauna unit is crafted of corrosion-resistant stainless steel for years of dependable, maintenance-free operation.
The KIP80B is equipped with a built-in control panel attached to the base of the sauna heater for convenient, easy-to-use operation. The control unit includes a 60-minute timer and thermostat and allows users to preset their sauna startup delay up to 8 hours in advance. Harvia KIP Series sauna heaters are uniquely engineered to provide an invigorating sauna experience. The KIP80B features direct contact between the sauna rocks and heating elements, ensuring a more consistent, radiant heat. The sauna heating unit's large rock capacity provides optimal heat storage and efficiency. Bathers choose Harvia KIP Series heaters for reliability, quality, and affordability. The wall-mounted KIP80B sauna heater is is perfect for any home sauna kit.
The Harvia KIP80B 8kW sauna heater operates in 240V, single-phase (1PH) configuration. Harvia KIP Series heaters are available in four power levels to best suit your needs. The Harvia KIP80B sauna oven carries a limited lifetime warranty and is fully serviceable. Harvia heaters are UL-listed to ensure your safety.
Click Here To Know More About Sauna
|
What's Included
- Sauna Heater
- Installation and Operation Manual
- 2-Year Warranty
Not Included (Sold Separately)
- Sauna Stones (Requires 1 Box)
Features
- Wall-mounted
- Stainless Steel Construction
- 8kW
- For sauna rooms from 250 to 425 cu. ft.
- Requires a minimum of 50 lbs of stones (1 box-AC3000)
- Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
- Built-in controls
- Industrial-grade, serviceable heating elements
- Direct rock-to-heating element contact
- UL Listed
- Designed, engineered, and made in Finland
- Dimensions: 16" W (406mm) x 11" D (279mm) x 24" H (609mm)
- 2-Year Warranty (Consumer Use)
- Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.
Specifications
Model | KIP80B |
User Group | Households |
Power Output | 8 kW |
Control Type | Controlled by manual switches |
Installation Location | Wall |
Installation Orientation | Vertically |
Technical documentation languages | EN FR |
Color | Stainless Steel |
Main Material | Steel |
Construction Material | Stainless Steel |
Certifications & Listing | UL |
Mountable Inside Sauna Room? | Yes |
Contains Wood? | No |
Hardwired | Yes |
Ambient temperature min | 0 °C |
Ambient temperature max | 60 °C |
Use Environment | Interior-wet area |
Remote use options | No |
Warranty Consumer (months) | 24 |
Warranty Professional (months) | 12 |
Warranty Community (months) | 12 |
Product Width | 16" (406mm) |
Product Depth | 11" (279mm) |
Product Height | 24" (609mm) |
Product Weight | 40 lbs |
Distances
Safety distance front (non-combustible materials) | 125 mm |
Safety distance side (non-combustible materials) | 125 mm |
Safety distance behind (non-combustible materials) | 0 mm |
Safety distance (Floor 3ph) (depends on connections and therefore from output, star/delta) | 178 mm |
Safety distance (Floor 1ph) (depends on connections and therefore from output, star/delta) | 178 mm |
Room min. recommended volume | 7.1 m³ |
Room max. recommended volume | 12 m³ |
Room min. height(depends on connections and therefore from output, star/delta) | 1980 mm |
Electrical
Power Table | 8 |
IP Class | IPX4 |
Electrical Frequency | 60 Hz |
Fuse (240VAC, 1 ph, 60Hz) pcs x ampers | min. 33,4A / 2 group: min. 22,3 A |
Supply cable (240VAC, 1ph, 60Hz) pcs x ampers | 8AWG |
Electrical group options | 240VAC, 1ph, 60Hz |
Logistics
EAN | 6417659027427 |
Customs tariff number EU | 85162999 |
ETIM number | EC001884 |
UNSPSC number | 40101800 |
Sales unit | pcs |
Quantity | 1 |
Packaging Materials | Cardboard |
Package Height | 500 mm |
Package Width | 700 mm |
Package Depth | 370 mm |
Gross Weight | 17.3 kg |
Sales lot 2 Quantity | 8 |
Sales lot 3 Quantity | 24 |
Warranty
Documents & Files
- Harvia KIP80B Datasheet
- Harvia KIP Series Installation Manual
- Harvia Sauna Stone Additional Product Uset Instruction
- Harvia Heater & Element Chart
- Additional Instruction How to Operate
