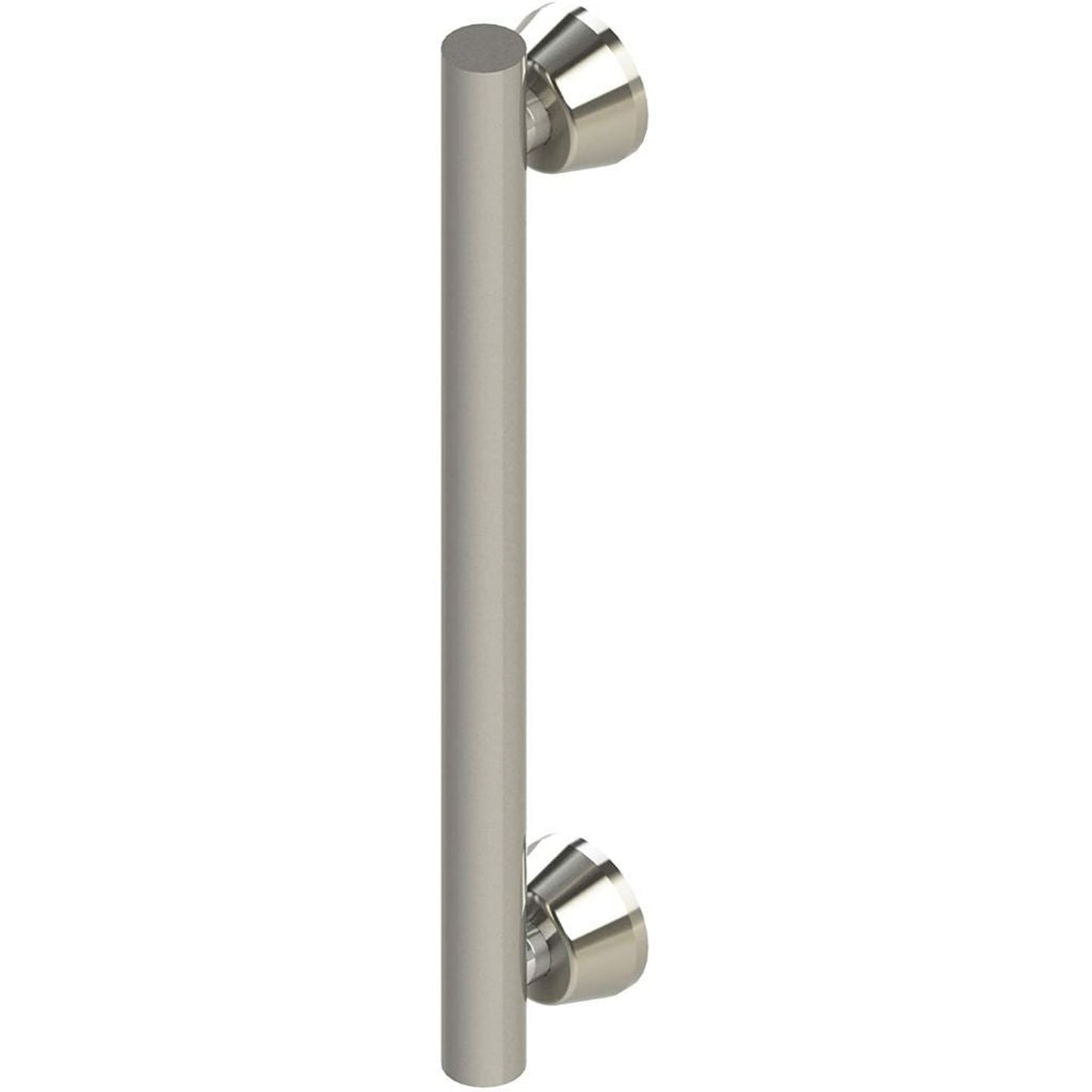

Invisia 18" Brushed Stainless Wall-Mounted Linear Bar With Integrated Grab Bar

Invisia 18" Brushed Stainless Wall-Mounted Linear Bar With Integrated Grab Bar

Regular price $189.00
Regular price $209.00 Sale price $189.00
Sale Sold out
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

Not your average grab bar.

The Linear Bar combines subtle details into a design that’s both elegant and functional. Safety doesn’t come at the cost of beauty anymore.

The Invisia Linear Bar is a curved grab bar designed to disguise safety in a bathroom accessory. The Invisia Linear Bar is intended for moderate vertical and horizontal load bearing to provide sitting and standing support for people with reduced mobility. The Invisia Linear Bar is installed with appropriate fasteners to a structural wall. The maximum user weight for this product is 500lbs / 227kgs. Note: Product is not intended to support full body weight. The Invisia Linear Bar is not to be used in any other way than described above.

Invisia’s Linear Bar is a simple and understated way to add new life to the safety features of any bathroom. With a user weight capacity that can support up to 500lbs / 227kgs, the decorative Linear Bar grants users peace of mind without compromising the beauty of the space. Featuring several colour options to complement décor, the luxurious Linear Bar can be installed anywhere—and at any angle—that support is needed.

Features

  • Invisia™ Linear Bar adds beautiful safety to any bathroom and supports up to 500lbs.
  • 9-Hole flanges make for an easy install anywhere and at any angle to provide support where you want it; stylish flange covers conceal mounting hardware.
  • 2-point wall connection provides maximum structural support (NOTE: product must be anchored to structural walls only).
  • Made from rust-resistant, #304 stainless steel.
  • ADA compliant rail diameter (1.25”); ADA compliant wall clearance (1.50”); Exceeds ADA 4.26.3 structural strength requirements for grab bars and fasteners (250lbs).
  • Solid construction and mounting.
  • Discreet wall mounts that conceal mounting hardware.
  • Suitable for use in a wet environment.

Product Overview

Rust Resistant

Stainless steel construction keeps your Linear Bar looking shiny and new.

Limited Lifetime Warranty

We stand behind all our products with a limited lifetime warranty.

ADA Compliant

Supports up to 500 lbs/227 kg when properly installed. Exceeds ADA guideline 4.26.3.

Invisible Installation

Mounting screws are completely concealed by the flange cover for a sleeker look.

Attractive risk management

Whether you’re making an investment in your future, or trying to prevent falls today—you can look good doing it in 4 different finishes.

Endless possibilities

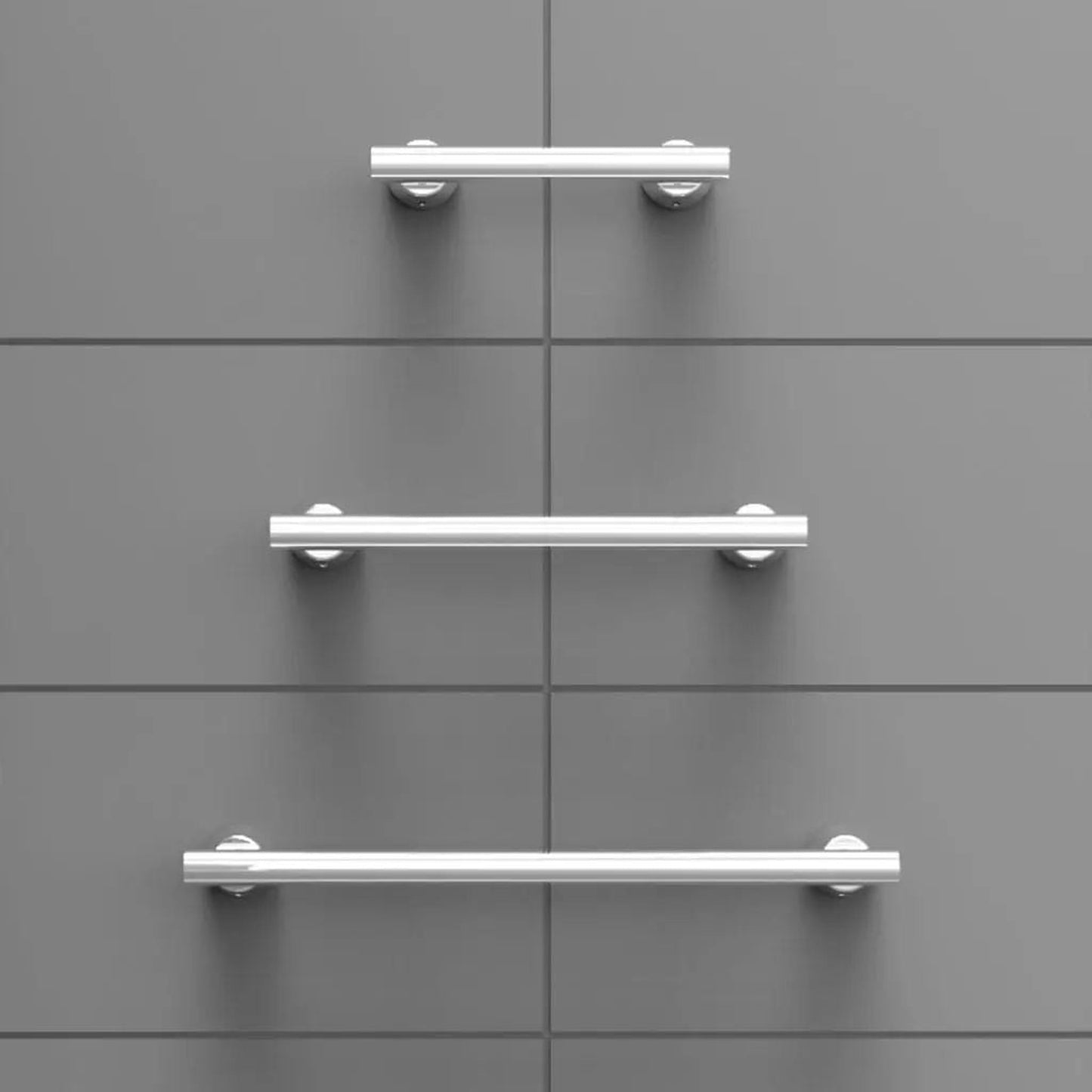

Available in 3 sizes, install your Linear Bar vertically, horizontally, or diagonally for support anywhere you need it.

Always find a stud

Unlike traditional grab bars, ours feature a 9-hole flange which allows for easy and secure installation almost anywhere.

Beautiful, functional details

In addition to being 20% smaller than typical grab bar mounting hardware, ours is watertight by design to prevent rust.

    Specifications

    Material #304 Stainless Steel
    Finish Brushed
    Weight Capacity 500lbs / 227kg (ADA Compliant)
    Rail Diameter 1.25" / 32mm (ADA Compliant)
    Rail Length 18" / 457mm
    Wall Clearance 1.50" / 38mm (ADA Compliant)
    Assembly Required No
    Installation Required Yes
    Warranty Limited Lifetime Warranty
    Shipping Dimensions 20.75" W x 4" D x 3" H
    Package Weight 2.75lbs / 1.25kgs

    Product Dimensions

    Model A (Bar Length) B (Center Spacing)
    18 18" / 457mm 14.75" / 375mm
