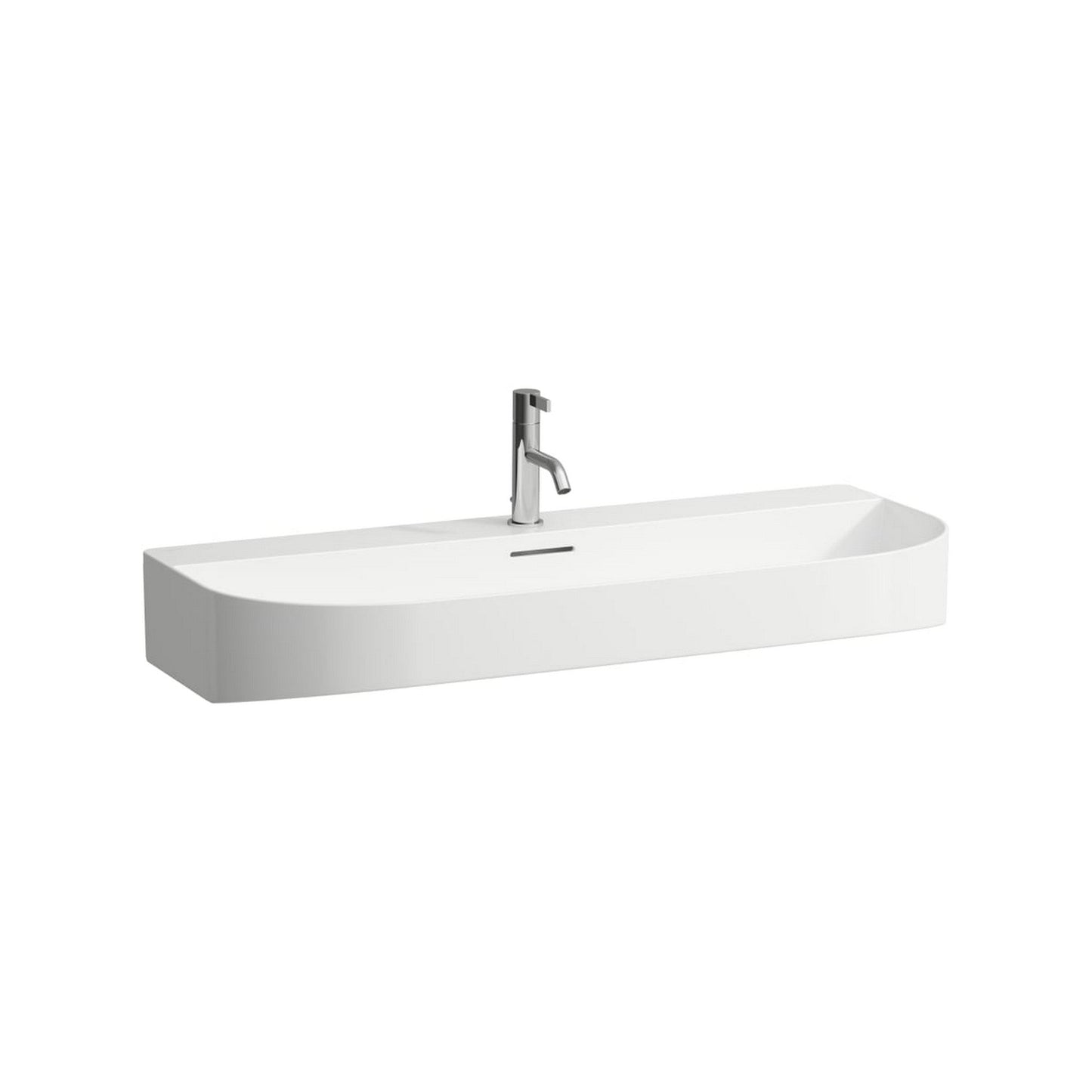

Laufen Sonar 39" White Ceramic Countertop Bathroom Sink With Faucet Hole
Laufen Sonar 39" White Ceramic Countertop Bathroom Sink With Faucet Hole
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
The internationally acclaimed and eclectic designer Patricia Urquiola reveals the third generation of Laufen's SaphirKeramik - she is taking this extraordinary material with great sensitivity into a third dimension - creating this new collection with the name: Sonar.
Expressive and yet minimalist, Sonar’s formal language plays with arcs and angles, emphasizing the slender lines of SaphirKeramik. To further enhance the lightness of the objects, Urquiola and Laufen developed a fine, three-dimensional texture for the external surfaces of the washbasin bowls.
SaphirKeramik remains a protagonist in Laufen’s production and it continues transforming the way interior design is applied in the world of bathroom culture.
The textured version can be selected as an optional alternative to the traditional smooth surface and is reminiscent of sound waves propagating in water.
The Sonar collection includes floor-standing and wall-mounted washbasins, two washbasin bowls, and a double washbasin bowl, also available in matte white and all made of SaphirKeramik together with a new furniture collection.
What's Included
- Sink
- Mounting set M 6/16" x 5 8/16" (M10 x 140 mm), Part Nr. H899882
- Mounting set, Part Nr. H891940
- Template, Part Nr. 896341
Not Included
- Faucet
- Vanity
- Push-open drain valve with SaphirKeramik cover, Part Nr. H898192
- Pop-up drain valve with pull lever with SaphirKeramik cover, Part Nr. H898191
Features
- Rectangular countertop sink
- With overflow slot, with tap bank
- Overflow channel glazed
- Undersurface ground
- Overall dimensions: 39 3/8" W x 16 9/16" x 5 11/16" H
- Meets or exceeds: ASME A112.19.2, cUPC/IAPMO listed
- SaphirKeramik (unique extra strong ceramic material)
- Limited 5-year warranty
Specifications
Characteristics |
Faucet Holes | One |
Finish | White |
Material | SaphirKeramik (unique extra strong ceramic material) |
Shape | Rectangle With Curved Edges |
Bowl Position | Central |
Installation | Countertop, Wall-Mounted |
Overflow | Standard |
Washbasin capacity (l) | 14 |
Number of Fixing Points | 4 |
Product Dimensions & Weight |
Bowl Width (in) | 39 3/8 (1000mm) |
Bowl Depth (in) | 12 3/16 (310mm) |
Bowl Height (in) | 3 15/16 (100mm) |
Width (in) | 39 3/8 (1000mm) |
Depth (in) | 16 9/16 (420mm) |
Height (in) | 5 11/16 (145mm) |
Weight (lb) | 47.4 (21.5kg) |

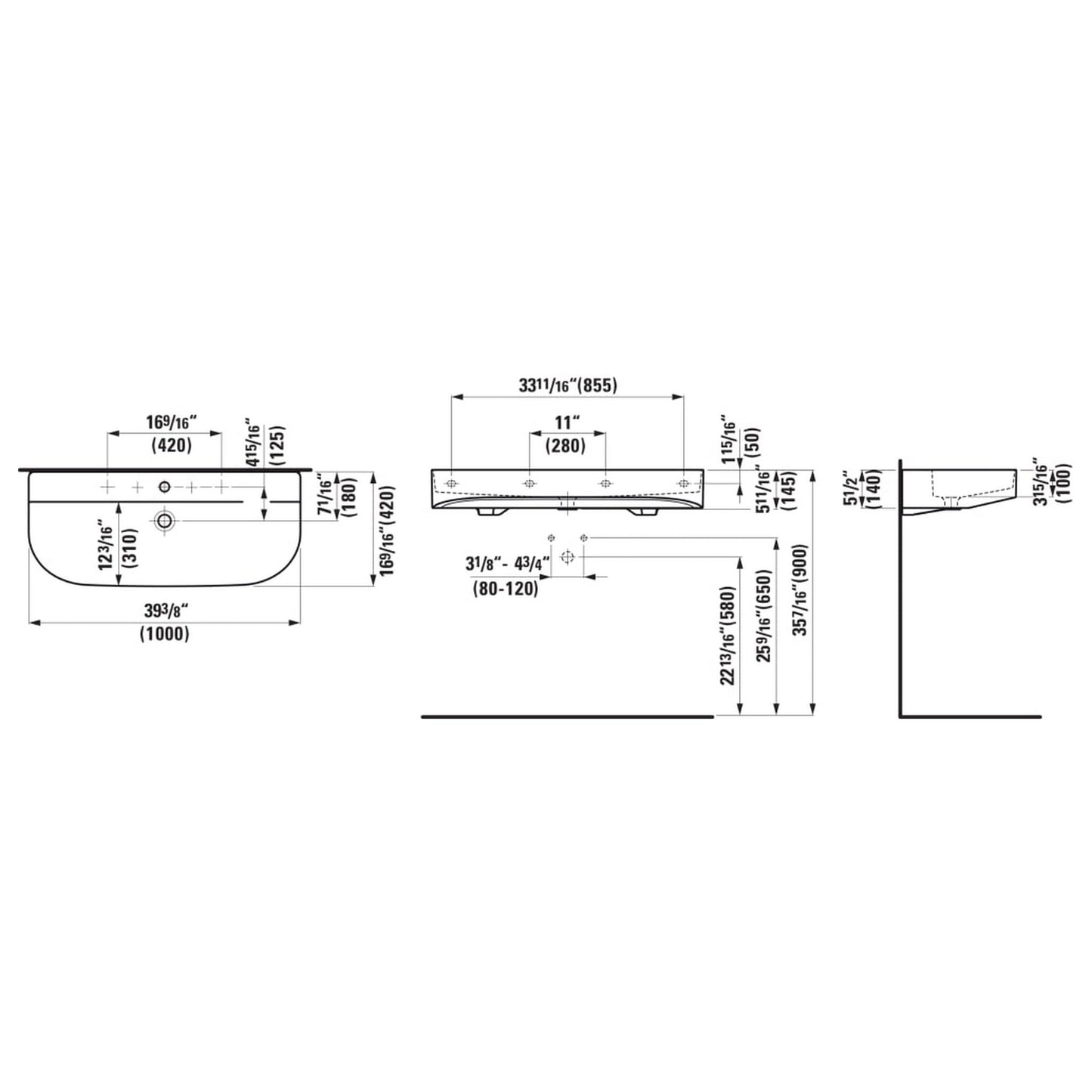

Technical Drawings
Certifications
Swiss Quality
Products with the Q-Plus certification comply with European standards and abide by stringent Swiss standards as defined by Suissetec/VSA. Laufen ceramic products are compliant with these Swiss quality standards and are recommended accordingly.
Laufen Green Mission
Laufen is committed to protecting the environment, placing great emphasis on sustainable manufacturing processes in regard to energy, water and materials uses. Laufen implores efficient and eco-friendly practices across all stages of production – from product development to marketing materials. For example, Laufen uses the waste heat generated in the production process to dry our ceramic pieces.
Laufen's production sites operate in accordance with strict, international environmental principles. The Swiss Agency for Efficient Energy Use has awarded Keramik Laufen AG its prestigious label for being actively involved in voluntary climate protection. Additionally, Laufen Austria AG- with its production sites at Wilhemsburg and Gmunden- was awarded the EMAS environmental prize for outstanding environmental performance. Overall, Laufen supports and promotes active environmental policies; policies that are embedded in the company's principles and upheld by our workforce around the world.
cUPC/ASME Compliant
The Uniform Plumbing Code (cUPC) and American Society of Mechanical Engineers (ASME) are trade organizations that cooperatively meet to create mechanical design and test routines for plumbing products. These are trade organizations tasked with creating guidelines for safe and interchangeable products that provide value for consumers and competition among manufacturers. All of Laufen Bathroom ceramic products (unless noted otherwise) meet the design requirements and laboratory testing demands of these organizations. Organizations that provide this testing routine include the International Association of Plumbing and Mechanical Officials (IAPMO Group), which has issued several of Laufen's certifications.
Warranty
Laufen branded ceramic products and all bathtubs (acrylic, Santec, Marbond) are warranted against defects in material and/or workmanship for a period of five (5) years from the date of original purchase. | |
Furniture items including vanities, wall cabinets, and related accessories are warranted against defects in material and workmanship for a period of one (1) year from the date of original purchase. |
|
Components such as bolts, fill and flush valves, drains, and seats with covers are warranted against defects in material and workmanship for a period of one (1) year from the date of original purchase. |
Documents & Files
SaphirKeramik: A Revolution In Ceramic
SaphirKeramik, patented and available on the market, is one of the latest, globally significant innovations from Laufen. This revolutionary, ceramic material reaches its exceptional hardness blended with corundum, a colorless mineral, which is a component of sapphires. This gives SaphirKeramik a flexural strength equal to that of steel. Yet it has the potential to be wafer-thin, giving designers almost infinite freedom to experiment – and tear up the rulebook of bathroom design.
