Mesa 54" x 35" x 85" Blue Tempered Glass Freestanding Walk In Steam Shower With Left-Side Door Configuration, 3kW Steam Generator and 12 Acupuncture Water Body Jets

Mesa 54" x 35" x 85" Blue Tempered Glass Freestanding Walk In Steam Shower With Left-Side Door Configuration, 3kW Steam Generator and 12 Acupuncture Water Body Jets

9 reviews
Regular price $2,996.00
Regular price $4,494.00 Sale price $2,996.00
Sale Sold out
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The Mesa WS-803L walk-in steam shower features tempered blue glass and dual interior control panels. The WS-803L also includes dual shower wands and fold-up seating making it a perfect two-person shower.  Featuring a slightly curved front, sliding glass doors, and brushed nickel trim, the 803L steam shower is a great upgrade for any contemporary bathroom.

What's Included

Features

  • Left Side Control Panel Configuration
  • 3kW Steam Generator

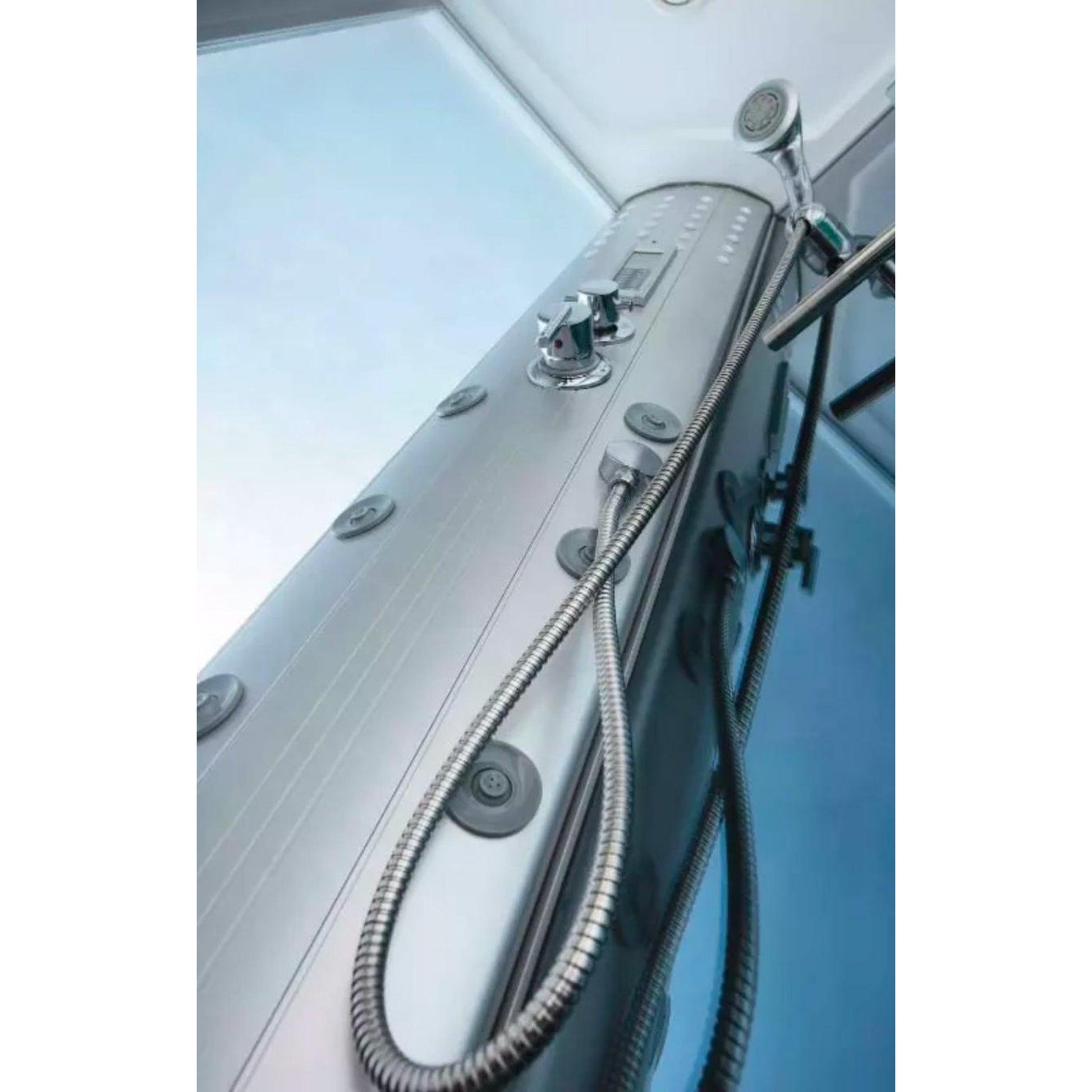

  • 12 Acupuncture Water Body Jets
  • 2 Adjustable Handheld Shower Wands
  • Rainfall Shower Head
  • FM Radio Built-In
  • Tempered Blue Glass
  • Storage Shelves
  • Blue LED Lighting
  • Dual Fold Up Corner Seats
  • Ventilation Fan
  • Towel Bar
  • Ozone Sterilization System
  • Flexible Drain Hose: You can pretty much put your drain anywhere you want.  All Mesa units come with a pre-cut drain and flexible hose.  This means you are now able to put your drain or steam shower anywhere you want!!
    Click here for details...

    Mesa's Flexible Drain Hose

    Mesa Steam Showers, bathtubs, and whirlpools include a flexible drain hose for fast easy installation. Mesa includes a flexible drain hose to help you get the job done faster and easier, with professional-grade durability and more versatility than a traditional corrugated pipe. Flexible and expandable, it easily bends around any obstacle, holds its shape during installation and with a simple snap, its integrated soil-tight fittings lock securely and stay connected during backfilling.

Specifications

Electrical

    • ETL Certified
    • 3000W Steam Generator
    • 220v ETL Approved (Standard)
    • 12v Lighting
    • 20 AMP Dual Pole Breaker

    Plumbing

      • Hot/Cold Connection – ½” Faucet Lines
      • Flexible Hoses

      Drainage System

        • 1 ½” Drain Intake
        • 1 ½” Flexible Drain Hose

        Dimensions

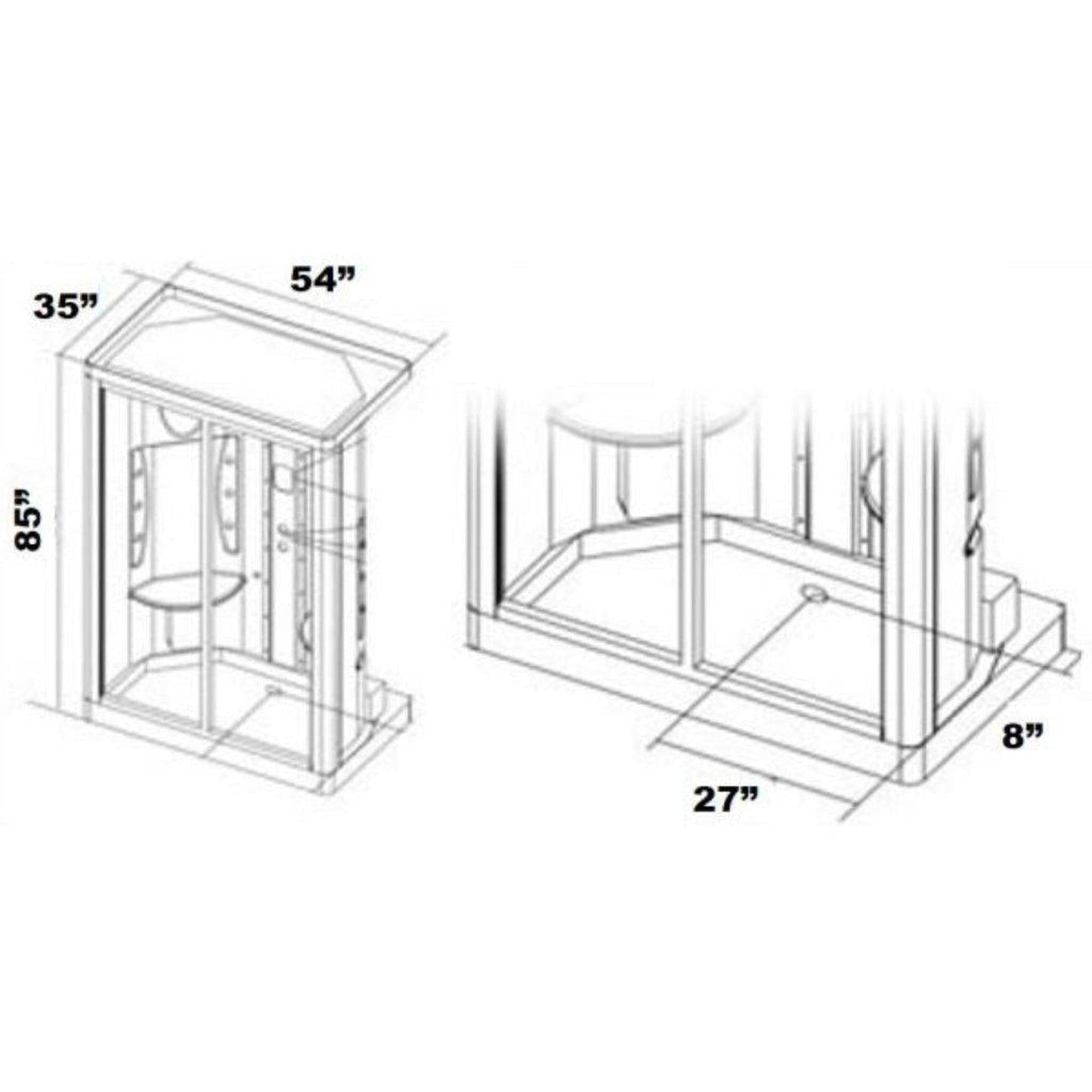

        • 54" W x 35" D x 85" H (Add 2" for ventilation exhaust pipe)

        Warranty

        All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delaminating, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels.

        All steam shower parts carry a (1) one-year guarantee against defects.

        Mesa Steam Showers recommends that a certified plumber or electrician replace the spare part. Mesa Steam Showers does not accept any responsibility or liability for the installation of spare parts.

        Documents & Files

        Videos

        Frequently Asked Questions

        Does the unit come in one piece or in panels?



        All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
        Can I fit the parts through a standard doorway?



        Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
        What type of Electrical Connection and Breaker will I need?



        One 30 AMP GFCI Breaker.
        I would like to place on the second floor, will there be a weight problem?



        The unit is about 500 lbs.+water and your weight, and that is definitely a case by case type question. Please consult your contractor based off of these weights we have provided.
        What does the inline heat pump do?



        The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
        How many HOT/COLD Connections are required?



        Regardless of the number of showerheads, all units have one hot/cold connection.
        Where is the HOT/COLD Connection located?



        The connection is located behind the shower hot/cold controls which differs per unit. Normally the hot/cold is about 30" from the the floor on the back of the unit. Flex hoses are included for easy hook ups no matter where your current hot/cold is located.
        Where is the steam generator located?



        The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up an room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
        Do I need an access panel?



        The steam showers are designed to be free standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
