SKU:WS-701A

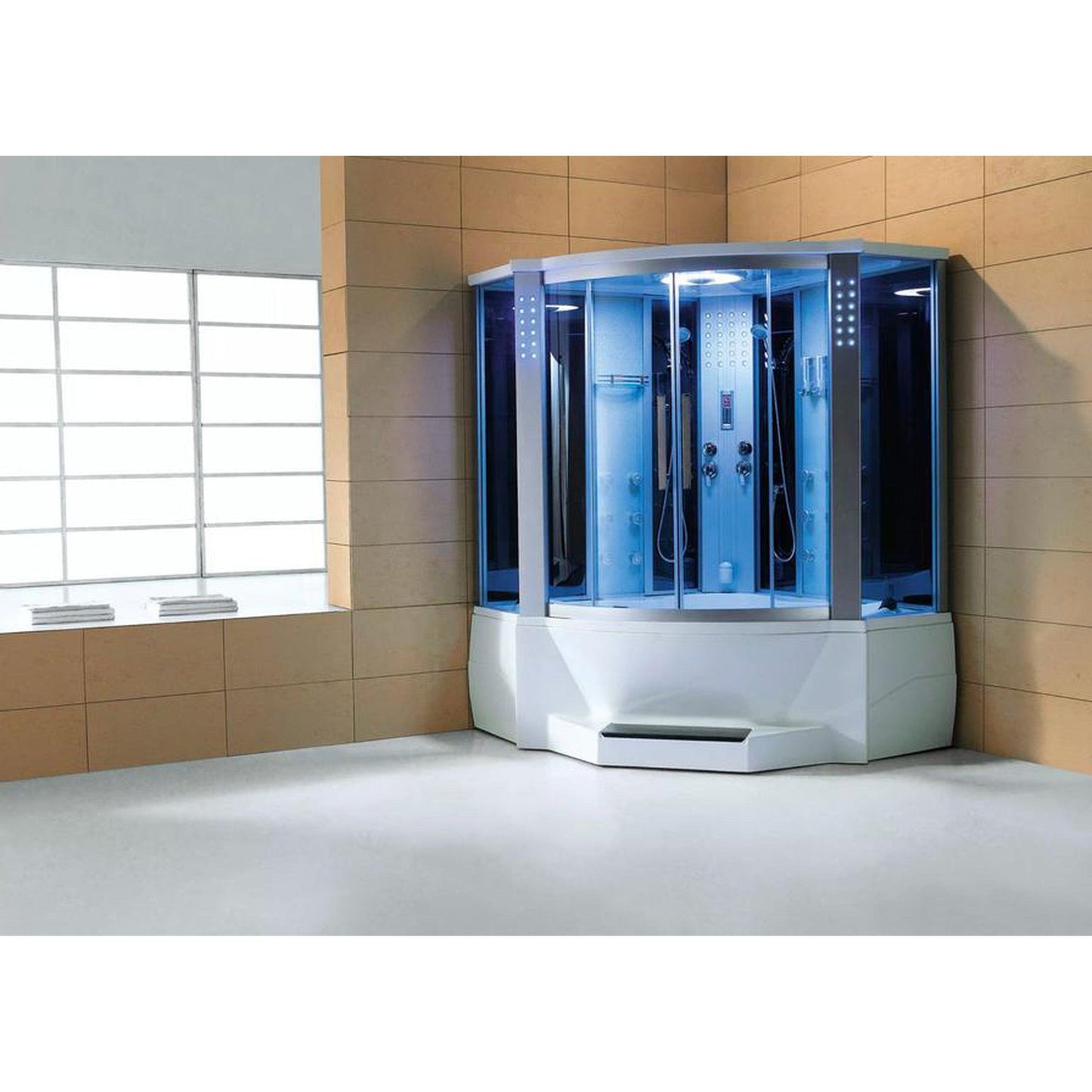

Mesa 66" x 66" x 85" Corner Blue Tempered Glass Combination Steam Shower Jetted Tub With 4kW Steam Generation, 12 Acupuncture Body Jets and 6 Whirlpool Jets

Mesa 66" x 66" x 85" Corner Blue Tempered Glass Combination Steam Shower Jetted Tub With 4kW Steam Generation, 12 Acupuncture Body Jets and 6 Whirlpool Jets

4 reviews
Regular price $4,290.00
Regular price $6,435.00 Sale price $4,290.00
Sale Sold out
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The Mesa 701A combination steam shower with jetted tub is our largest steam shower combination measuring 66" x 66". This fully loaded combination steam shower features our exclusive upgraded 4kW high output steam engine, 12 acupuncture jets, and 6 whirlpool jets giving you an unmatched therapeutic sauna experience. You and a partner can indulge yourself in a state of complete relaxation and tranquility in the expansive jetted tub.

What's Included

Features

  • Upgraded LCD Computer Control Panel
  • 4kW High Output Steam Generator
  • 12 Acupuncture Body Jets
  • 6 Whirlpool Jets
  • 2 Adjustable Handheld Shower Heads
  • Rainfall Shower Head
  • FM Radio Built-In
  • Ozone Sterilization System
  • Adjustable Temperature and Time Control
  • Acupuncture Massage
  • Advanced computerized LCD
  • Oversized Rainfall Shower Head
  • Adjustable Handheld Showerhead
  • Jetted Tub with 6 Massage Jets
  • Sliding Glass Doors
  • Storage Shelves
  • Blue Tinted Glass
  • Towel rack
  • CD/MP3 Connection
  • Overhead LED Lighting
  • Ventilation Fan
  • Digital Timer and Temperature Control
  • Storage Shelves
  • Built-in Seating Above Tub
  • Fluorescent Blue Mood Lighting
  • 70 Gallon Water Capacity
  • The frame is aluminum and the tub is acrylic
  • Flexible Drain Hose: You can pretty much put your drain anywhere you want.  All Mesa units come with a pre-cut drain and flexible hose.  This means you are now able to put your drain or steam shower anywhere you want!!
    Click here for details...

    Mesa's Flexible Drain Hose

    Mesa Steam Showers, bathtubs, and whirlpools include a flexible drain hose for fast easy installation. Mesa includes a flexible drain hose to help you get the job done faster and easier, with professional-grade durability and more versatility than a traditional corrugated pipe. Flexible and expandable, it easily bends around any obstacle, holds its shape during installation and with a simple snap, its integrated soil-tight fittings lock securely and stay connected during backfilling.

Specifications

Electrical

    • ETL/CSA Certified
    • 3000W Steam Generator
    • 12v Lighting
    • 1.2 HP Water Pump
    • 220v – (2) 20 AMP Dual Pole Breakers
    • 220v Heat Pump (Optional)

    Plumbing

      • Hot/Cold Connection – ½” Faucet Lines
      • Flexible Hoses

      Drainage System

        • 1 ½” Drain Intake
        • 1 ½” Flexible Drain Hose

        Dimensions



        • 66" W x 66" D x 85" H ( Add 2" for ventilation exhaust pipe)
        • Dry weight is approximately 685 pounds

        Warranty

        All steam showers carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the steam shower from peeling, fading, delamination, or cracking. Structural components include acrylic panels, shower pan, ceiling, and glass panels.

        All steam shower parts carry a (1) one-year guarantee against defects.

        All jetted tubs and air tubs carry a (7) seven-year structural warranty against manufacturer defects. The structural warranty protects the structure of the tub from peeling, fading, delamination, or cracking.  All jetted tub and air tub parts carry a (5) five-year guarantee against defects.

        Mesa Steam Showers recommends that a certified plumber or electrician replace the spare part. Mesa Steam Showers does not accept any responsibility or liability for the installation of spare parts.

        Documents & Files


        Frequently Asked Questions

        Does the unit come in one piece or in panels?



        All units come in panels. The great thing about our Stand Alone Steam Showers is that they are pre-assembled with pre-drilled holes. You can move any of the units through a standard 32" doorway for easy access into remodeled homes, basements, and other unique situations.
        Can I fit the parts through a standard doorway?



        Yes, all units can fit through a standard 32" doorway. Even units with a whirlpool tub will fit through any space larger than 26".
        What type of Electrical Connection and Breaker will I need?



        One 30 AMP GFCI Breaker.
        I would like to place it on the second floor, will there be a weight problem?



        The unit is about 500 lbs.+water and your weight, and that is definitely a case-by-case type question. Please consult your contractor based on these weights we have provided.
        What does the inline heat pump do?



        The inline Heat Pump is attached to the water pump, and the heat pump will maintain the water temperature in the tub portion of the unit.
        How many HOT/COLD Connections are required?



        Regardless of the number of showerheads, all units have one hot/cold connection.
        Where is the HOT/COLD Connection located?



        The connection is located behind the shower hot/cold controls which differ per unit. Normally the hot/cold is about 30" from the floor on the back of the unit. Flex hoses are included for easy hookups no matter where your current hot/cold is located.
        Where is the steam generator located?



        The steam generator is located underneath the tub and on certain units, it is placed on the back of the unit. All generators are mounted to the frame or screwed to the back of the unit so that they do not take up an room beyond the dimensions of the shower. All of the steam showers will sit flush against the wall.
        Do I need an access panel?



        The steam showers are designed to be free standing units so that in case of an issue behind the unit, you can easily slide the unit away from the wall for access. The plumbing and the electrical connections are flexible so that you can easily make this happen. If at all possible, an access panel is a terrific option in case of any future issues.
