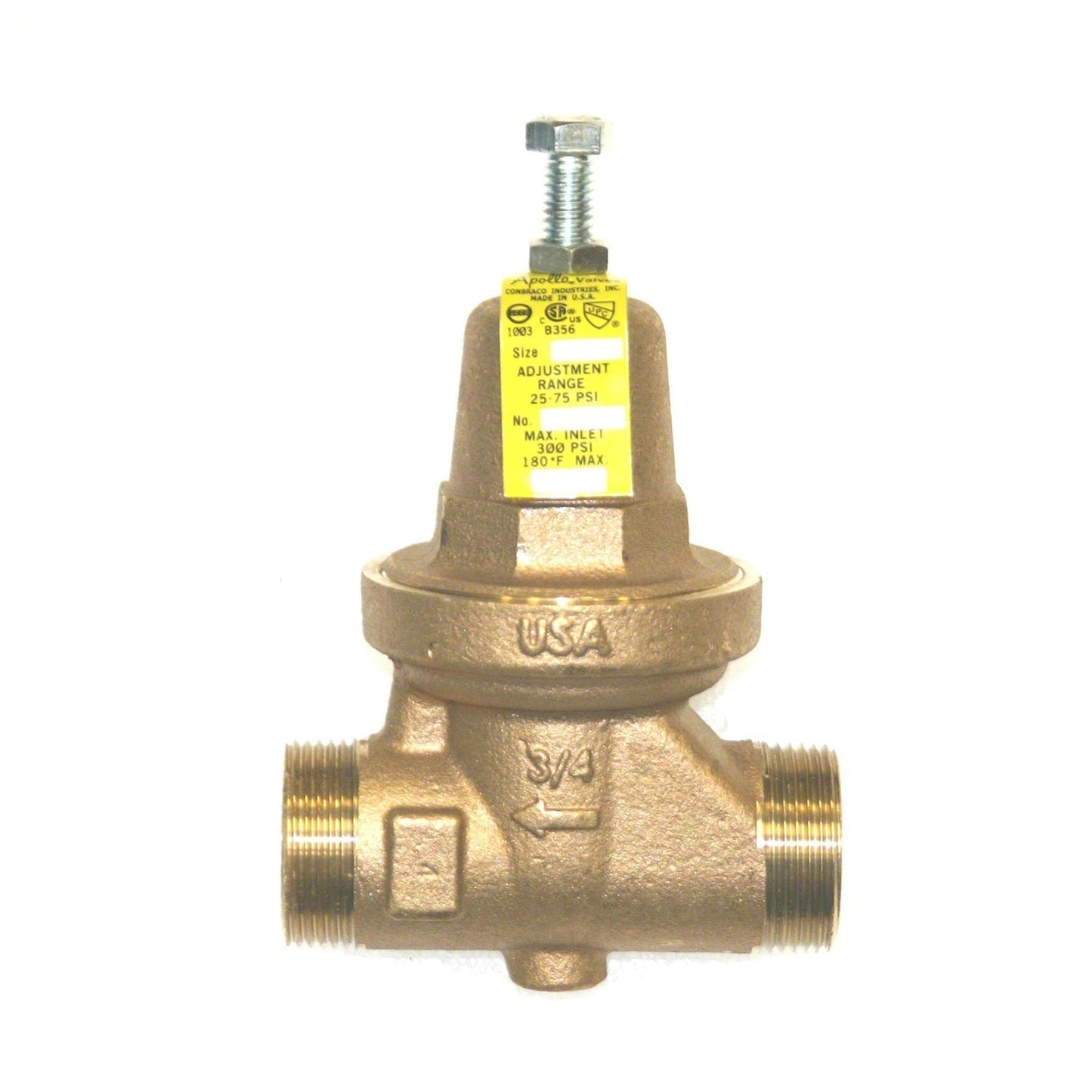

MrSteam 4" x 3" x 5" Brass Pressure Release Valve For MS, MSSUPER, and SAH Residential Generators
MrSteam 4" x 3" x 5" Brass Pressure Release Valve For MS, MSSUPER, and SAH Residential Generators
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
"MAKING STEAM SINCE 1917"
The pressure reducing valve with a balanced piston design has an internal thermal expansion bypass, corrosion-resistant sealed bronze body, bonnet, and an integral SS strainer.
Pressure Reducing Valve For MS, MSSUPER, and SAH Residential Generators
Features
- Stainless Steel springs
- Corrosion Resistant Sealed Body and Bonnet
- Integral SS Strainer
- Balanced Piston Design
- Internal Thermal Expansio By-Pass
- Maximum Supply Pressure up to 300 psig
- 100% Factory Tested
- Temperature Range 33° F – 180° F
- 100% Manufactured in USA
Specifications
Weight | 2 lb |
Width | 3.55" |
Depth | 2.56" |
Height | 5.34" |
Dimension | 3.55" x 2.56" x 5.34" |
Compatible Generator | All eSeries Generators |
Construction Materials | Brass |
Country Of Origin | United States |
Material Specifications
Part Name | Material |
Body | Bronze, ASTM B584 |
Covers | Bronze, ASTM B584 |
Diaphragm | FDA Grade Buna w/Polyester |
Seat Disc | FDA Grade EPDM |
Stem | Brass, ASTM B-16 |
Spring | Stainless Stee |
O-Rings | FDA Approved Nitrile |
Technical Drawing
Downloads
Warranty
Limited Warranty for Mr.Steam® Residential Steambath Controls and Accessories Installed in the United States and Canada.
Mr.Steam® warrants that its MR.STEAM RESIDENTIAL STEAMBATH CONTROLS AND ACCESSORIES, installed in the United States or Canada including without limitation: iTempo™, Tempo/Plus™, iSteam®, AudioWizard™, SteamGenie® , iGenie™, AromaSteam, ChromaSteam®, MusicTherapy® In-Shower Speakers, MS Light, HomeWizard®, Drip Pan, Wall Mounted Steam/Shower Seats, and AutoFlush® automatic drain valves (collectively, Mr.Steam Controls and Accessories), are free from defects in materials and workmanship for two year from the date of purchase by the original consumer purchaser. Mr.Steam will repair or replace (at its option) Mr.Steam Controls and Accessories if they fail to conform to this limited warranty. All warranty work will be performed without charge when the Mr.Steam Control and Accessory is returned to the location designated by Mr.Steam within 2 years of the date of purchase.
