MrSteam Commercial CU 2 Generator 48 kW 240 V 3 ph Package with Digital 1 Control, Steamhead & Blowdown System

MrSteam Commercial CU 2 Generator 48 kW 240 V 3 ph Package with Digital 1 Control, Steamhead & Blowdown System

Regular price $15,360.00
Regular price $19,200.00 Sale price $15,360.00
Sale Sold out
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.


Our Commercial Generator Packages are ideal for large steam rooms in hotels, resorts, spas and clubs. At the heart of these packages are our consistently reliable, low maintenance and high performing CU Generators that are manufactured to the same exacting standards that the U.S. Navy, the CDC and hospital operating rooms demand. Packages include a CU Generator, Digital 1 Control, CU SteamHead, Steam Solenoid, Automatic Blowdown System with Digital Timer, and Auxiliary Manual Reset making it easy to specify and order.

Whats Included

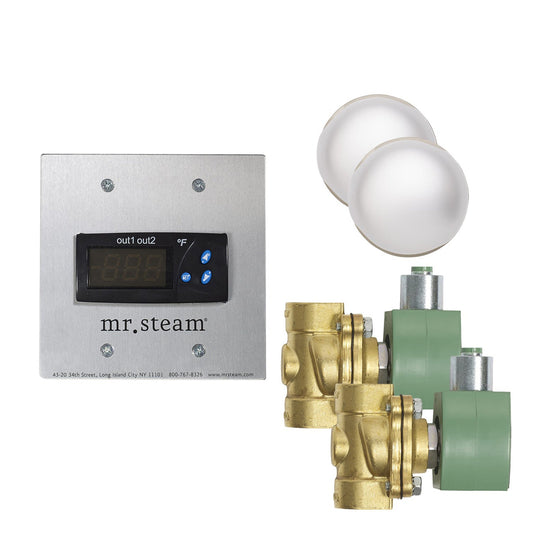

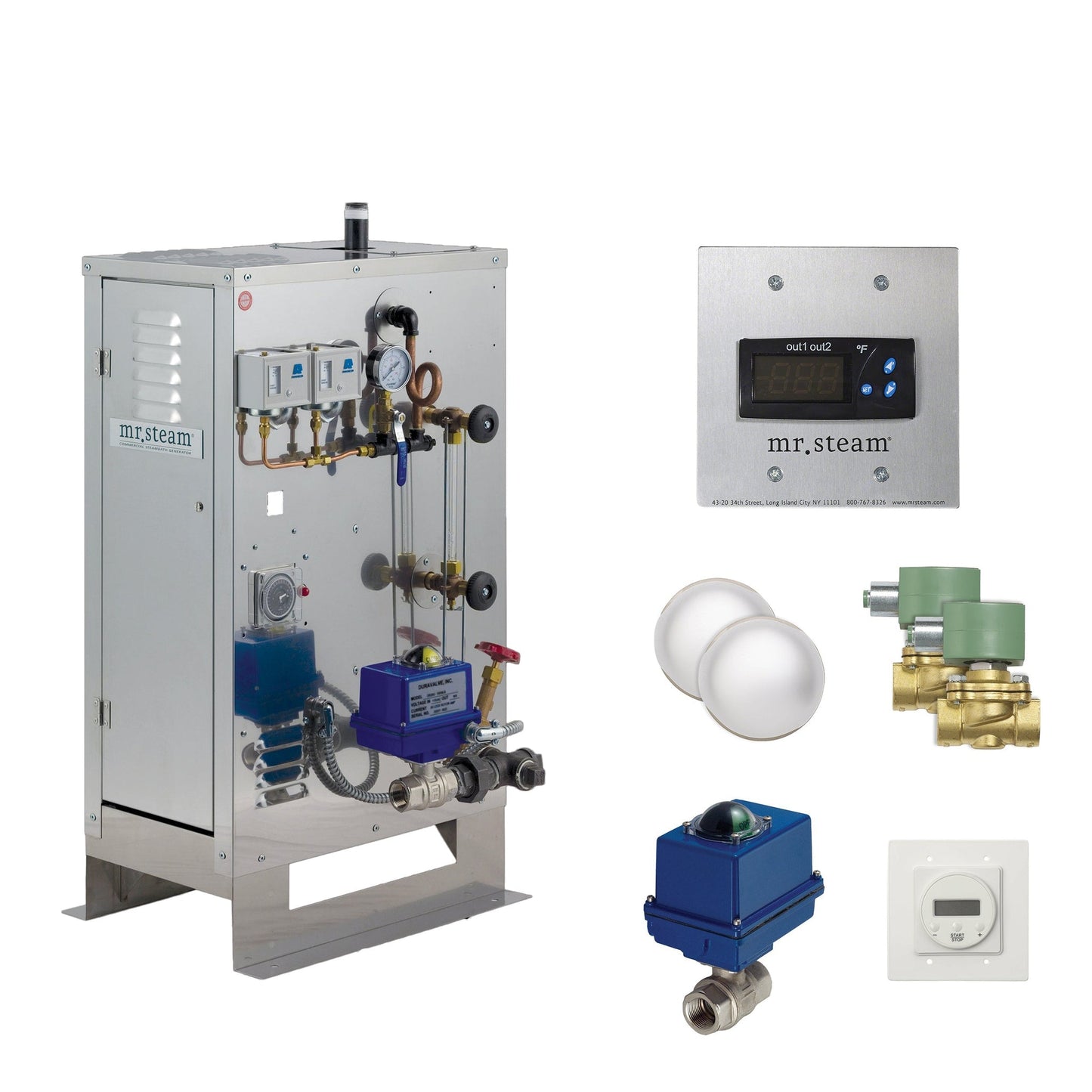

  • CU Generator (C2000AC3)
  • Digital 1 Control (CU1-D1)
  • CU Steamhead (CU103984PC)
  • Automatic Blowdown (CU81600-1D)

Commercial Steam Room System


The Perfect Steam Experience for Your Venue

Go From Zero to Five-Stars. The best commercial steam bath for businesses are the ones people already love to use. The CU Commercial System is ideal for large commercial venues such as health clubs, large resorts, and large spas. No matter the size of your space, our steam bath system gives you everything you need to create the perfect steam experience for your customers, and your venue. The result is a touchpoint experience that becomes more memorable, more revitalizing, and ultimately more gratifying.


Ideal for large venue steam rooms such as hotels, resorts, spas, and clubs.


Engineered to satisfy by responding reliably and automatically, maintaining pre-set temperatures within the steam.


MrSteam CU Commercial Systems deliver longevity, functionality and durability no matter how long it’s in operation.

3D View

Everything You Need for Your Commercial Steam Room

Commercial Steam Room Generator Package

Everything needed to create a Commercial Steam Room System is now packaged together for easy ordering. Ideal for large steam rooms in hotels, resorts, spas and clubs our Commercial Generator Packages give you everything you need to be operational once installed. At the heart of these packages are our CU Generators. Consistently reliable, low maintenance and high performing, they are manufactured to the same exacting standards that the CDC and hospital operating rooms demand.

CU Generator

Ideal for large steam rooms in hotels, resorts, spas and clubs. Consistently reliable, low maintenance and high performing.

Digital 1 Control

Maintains selected room temperature and features a high temperature shutoff

CU Steamhead

Provide a steam dispersion that has no moving parts, and requires no field assembly

Automatic Blowdown

Stainless steel, motor-driven, straight-through, self-cleaning ball valve for boiler water blowdown.

  • Programmable hour/day time cycle
  • Boiler-grade heavy duty motorized ball valve
  • Industrial steam-rated 100 PSIG ball value with Telfon® seal
  • Plated brass valve body with stainless steel ball and stem
  • Owner/operator schedules start-up/shut-down, and blowdown times from generator

Commercial Steam Room Clients Who Love Mr.Steam


Try out a Steam Room Near You

You can find MrSteam installed and serving clients’ needs at Canyon Ranch, The Ritz-Carlton, The Luxor, Bellagio, MGM Grand in Las Vegas, among many, many other major resorts, athletic franchises, and popular health facilities. If you’re considering steam yourself, we encourage you to try us out.


  • Package includes 9KW 240V/Single Phase Generator
  • Package includes Digital 1 Control Package plus Automatic Blowdown System and Auxiliary Manual Reset
  • CU Generator has an ASME and National Board Registered Pressure Vessel
  • Automatic Blowdown Timer Provides 24-hour/7-Day Automatic Startup/Shutdown and AutoFlush® Operation
  • CU Generator has a long-life stainless-steel heating element
  • SteamOnDemand maintains pre-selected temperature instantly
  • Stainless Steel Jacket
  • cUL listed

Product Specifications

Weight 300 LB.
Width (Side To Side) 37"
Depth (Front To Back) 31"
Height (Top To Bottom) 52"
Dimensions 37" x 31" x 52"

Technical Specifications

AMPS 116 A
Certification & Listings cULus, ASME
Construction Materials  Stainless Steel
Control (Adjustable Session?) no
Control (Adjustable Temperature?) Yes, 80-120°F
Control (Clock?) Yes
Control (Steam Head Included?) Yes
Control (Screen Size) 1.7" W x 0.738" H.
Country Of Origin United States
Generator (Automatic Shut-Off) No
Generator (BTU) 163782.8
Generator Drain Location  Front
Generator (Drain Opening) 1" NPT
Generator (End Connection) NPT
Generator (Fuel Type/ Power Option) Electric
Generator (GPM) 0.864
Generator (Inlet/ Outlet) "1/4"" NPT Water Inlet
1"" NPT Steam Outlet"
Generator (Line Fuse) 150
Generator (Max Room Volume) 2000 CU.FT.
Generator (Maximum Pressure) 15 PSI
Generator (Maximum Temperature) 60°C
Generator (MBH) 163.78
Generator Phase 3 PH
Generator (Pipe Fitting & Tubing) "1/4"" NPT Water Inlet
1"" NPT Steam Outlet"
Generator (Wire Gauge) ?
Installation Type  Hardwired
Kilowatts 48 KW
Watts  48000 W
Volts 240V
Uses Electricity? Yes


    Limited 1-Year Warranty (US & Canada)

    Limited Warranty for Mr.Steam® Residential Steambath Controls and Accessories Installed in the United States and Canada.

    Mr.Steam® warrants that its MR.STEAM RESIDENTIAL STEAMBATH CONTROLS AND ACCESSORIES, installed in the United States or Canada including without limitation: iTempo™, Tempo/Plus™, iSteam®, AudioWizard™, SteamGenie® , iGenie™, AromaSteam, ChromaSteam®, MusicTherapy® In-Shower Speakers, MS Light, HomeWizard®, Drip Pan, Wall Mounted Steam/Shower Seats, and AutoFlush® automatic drain valves (collectively, Mr.Steam Controls and Accessories), are free from defects in materials and workmanship for two year from the date of purchase by the original consumer purchaser. Mr.Steam will repair or replace (at its option) Mr.Steam Controls and Accessories if they fail to conform to this limited warranty. All warranty work will be performed without charge when the Mr.Steam Control and Accessory is returned to the location designated by Mr.Steam within 2 years of the date of purchase.


    Installation Manual



    Options & Accessories


    Fuses botanical fragrance and steam together to create the aromatherapy experience


    AromaSteam fragrance gallon. Specially formulated & packaged for use with the AromaSteam system


    Alerts you when steam exceeds the maximum set temperature


    Recessed Light Designed To Withstand Heat & Moisture​


    Easy-to-use-timer so that patrons can safely time their sessions


    Emergency stop switch to shut down the steam generator
