SKU:CU360AG3

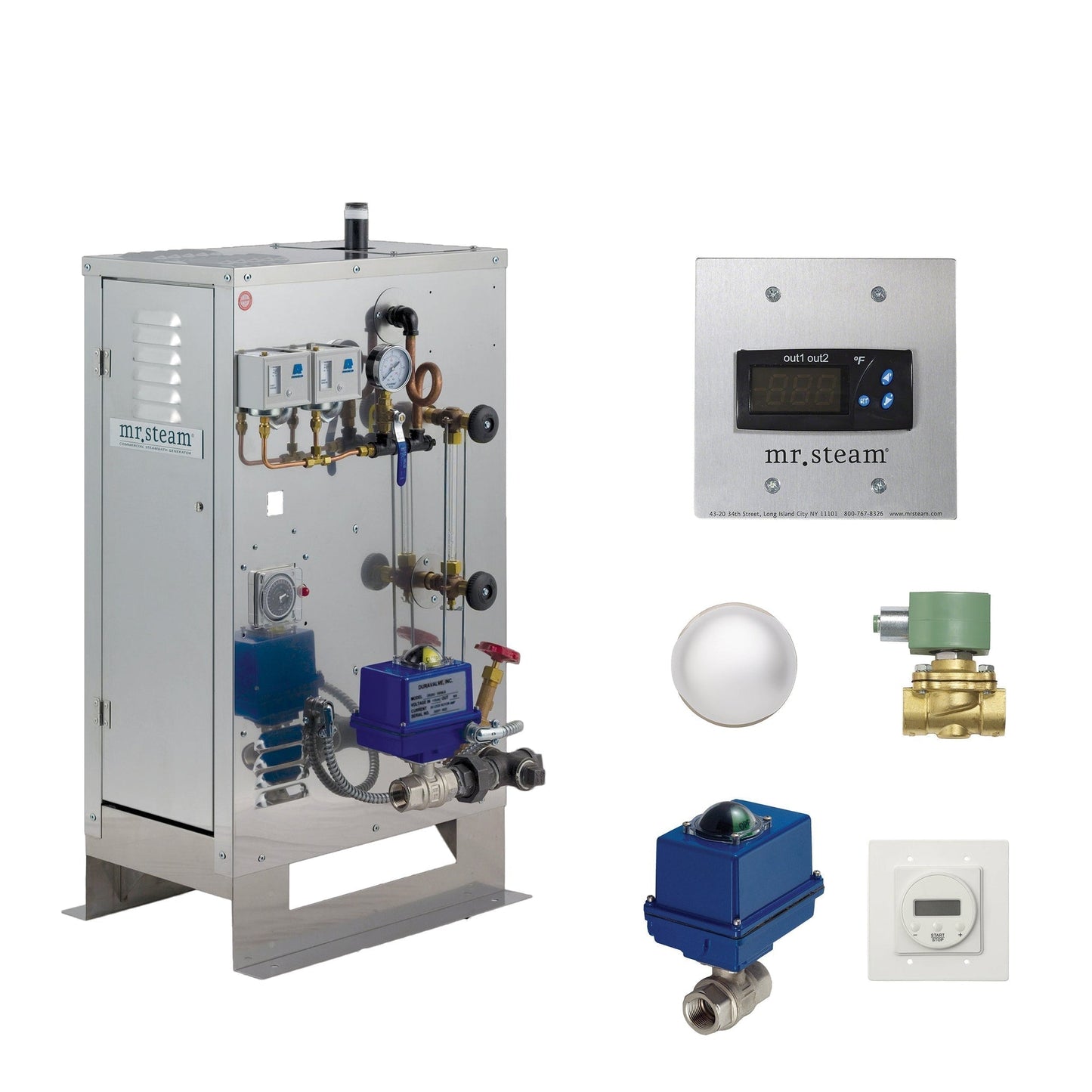

MrSteam Commercial CU1 Generator Package 9 kW 600 V with Digital 1 Control Package and Blowdown Tank & Steamhead

MrSteam Commercial CU1 Generator Package 9 kW 600 V with Digital 1 Control Package and Blowdown Tank & Steamhead

Regular price $4,920.00
Regular price $6,150.00 Sale price $4,920.00
Sale Sold out
  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

"MAKING STEAM SINCE 1917"

Our Commercial Generator Packages are ideal for large steam rooms in hotels, resorts, spas and clubs. At the heart of these packages are our consistently reliable, low maintenance and high performing CU Generators that are manufactured to the same exacting standards that the U.S. Navy, the CDC and hospital operating rooms demand. Packages include a CU Generator, Digital 1 Control, CU SteamHead, Steam Solenoid, Automatic Blowdown System with Digital Timer, and Auxiliary Manual Reset making it easy to specify and order.

Commercial Steam Room System

STEAM FOR HOTELS, RESORTS, SPAS & CLUBS

The Perfect Steam Experience for Your Venue

Go From Zero to Five-Stars. The best commercial steam bath for businesses are the ones people already love to use. The CU Commercial System is ideal for large commercial venues such as health clubs, large resorts, and large spas. No matter the size of your space, our steam bath system gives you everything you need to create the perfect steam experience for your customers, and your venue. The result is a touchpoint experience that becomes more memorable, more revitalizing, and ultimately more gratifying.

FOR LARGE VENUES

Ideal for large venue steam rooms such as hotels, resorts, spas, and clubs.

INDUSTRIAL GRADE

Engineered to satisfy by responding reliably and automatically, maintaining pre-set temperatures within the steam.

ROUND THE CLOCK USAGE

MrSteam CU Commercial Systems deliver longevity, functionality and durability no matter how long it’s in operation.

3D View

Everything You Need for Your Commercial Steam Room

Commercial Steam Room Generator Package

Everything needed to create a Commercial Steam Room System is now packaged together for easy ordering. Ideal for large steam rooms in hotels, resorts, spas and clubs our Commercial Generator Packages give you everything you need to be operational once installed. At the heart of these packages are our CU Generators. Consistently reliable, low maintenance and high performing, they are manufactured to the same exacting standards that the CDC and hospital operating rooms demand.

CU Generator

Ideal for large steam rooms in hotels, resorts, spas and clubs. Consistently reliable, low maintenance and high performing.

Commercial Steam Room Clients Who Love Mr.Steam




Try out a Steam Room Near You

You can find MrSteam installed and serving clients’ needs at Canyon Ranch, The Ritz-Carlton, The Luxor, Bellagio, MGM Grand in Las Vegas, among many, many other major resorts, athletic franchises, and popular health facilities. If you’re considering steam yourself, we encourage you to try us out.

Features

  • Package includes 12kW 600V with Digital 1 Control Package and Blowdown Tank
  • Package includes Digital 1 Control Package plus Automatic Blowdown System and Auxiliary Manual Reset
  • CU Generator has an ASME and National Board Registered Pressure Vessel
  • Automatic Blowdown Timer Provides 24-hour/7-Day Automatic Startup/Shutdown and AutoFlush® Operation
  • CU Generator has a long-life stainless-steel heating element
  • SteamOnDemand maintains pre-selected temperature instantly
  • Stainless Steel Jacket
  • cUL listed

Product Specifications

Weight 230 LB.
Width (Side To Side) 20"
Depth (Front To Back) 30"
Height (Top To Bottom) 38"
Dimensions 20" x 30" x 38"

Technical Specifications

AMPS 35 A
Certification & Listings cULus, ASME
Construction Materials  Stainless Steel
Country Of Origin United States
Generator (Automatic Shut-Off) No
Generator (BTU) 122837.04
Generator Drain Location  Right
Generator (Drain Opening) 1" NPT
Generator (End Connection) NPT
Generator (Fuel Type/ Power Option) Electric
Generator (GPM) 0.65
Generator (Inlet/ Outlet) Water feed 1/4" NPT; Steam Outlet 1" NPT

Generator (Max Room Volume) 360 CU.FT.
Generator (Maximum Pressure) 15 PSI
Generator (Maximum Temperature) 120°C
Generator (MBH) 122.84
Generator Phase 3 PH
Generator (Pipe Fitting & Tubing) Water feed 1/4" NPT; Steam Outlet 1" NPT; Drain 1" NPT
Generator (Wire Gauge) 8 AWG
Installation Type  Hardwired
Kilowatts 9KW
Watts  9000W
Volts 600V
Uses Electricity? Yes

    Warranty

    Limited 1-Year Warranty (US & Canada)

    Limited Warranty for Mr.Steam® Residential Steambath Controls and Accessories Installed in the United States and Canada.

    Mr.Steam® warrants that its MR.STEAM RESIDENTIAL STEAMBATH CONTROLS AND ACCESSORIES, installed in the United States or Canada including without limitation: iTempo™, Tempo/Plus™, iSteam®, AudioWizard™, SteamGenie® , iGenie™, AromaSteam, ChromaSteam®, MusicTherapy® In-Shower Speakers, MS Light, HomeWizard®, Drip Pan, Wall Mounted Steam/Shower Seats, and AutoFlush® automatic drain valves (collectively, Mr.Steam Controls and Accessories), are free from defects in materials and workmanship for two year from the date of purchase by the original consumer purchaser. Mr.Steam will repair or replace (at its option) Mr.Steam Controls and Accessories if they fail to conform to this limited warranty. All warranty work will be performed without charge when the Mr.Steam Control and Accessory is returned to the location designated by Mr.Steam within 2 years of the date of purchase.

    Downloads

    Installation Manual

     Brochure

    Videos







    Options & Accessories


    CU AROMAFLO

    Fuses botanical fragrance and steam together to create the aromatherapy experience

    AROMASTEAM FRAGRANCE

    AromaSteam fragrance gallon. Specially formulated & packaged for use with the AromaSteam system

    CU ALARM

    Alerts you when steam exceeds the maximum set temperature

    LED LIGHT

    Recessed Light Designed To Withstand Heat & Moisture​

    DIGITAL TIMER

    Easy-to-use-timer so that patrons can safely time their sessions

    CU STEAMSTOP

    Emergency stop switch to shut down the steam generator

    Frequently Asked Questions

    Are you worried that installing a steam shower in your home might be an intimidating prospect? After all, this is likely something you’ve never done before. And you may have questions – lots of questions – and aren’t sure where to get the answers.

    That’s why we created this steam shower FAQ – to give you answers to your top steam shower installation questions. We’ll help you learn how easy it is to install a steam shower and how quickly you can enjoy the benefits of steam at home!
