"MAKING STEAM SINCE 1917"

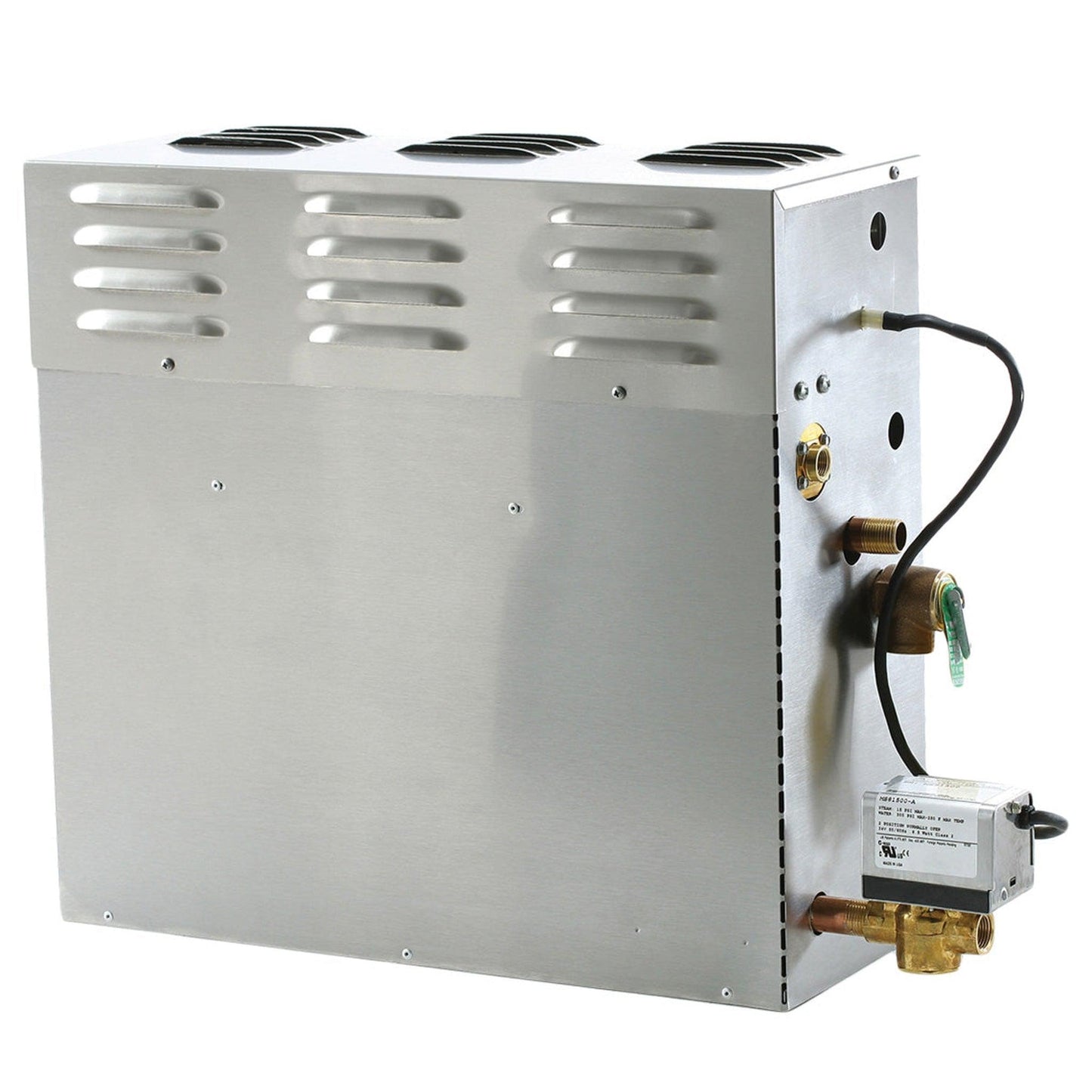

CU Series Commercial Generators meet rigid requirements and nationally recognized testing standards, including UL. ASME steam pressure vessels are built to the ASME Boiler and Pressure Vessel Code requirements and are National Board Registered. Vertical construction means a smaller footprint, which means the generator can be located within the tightest of mechanical rooms. High quality fibrous glass pressure vessel insulation delivers maximum energy performance.

Commercial Steam Room Clients Who Love Mr.Steam

Try out a Steam Room Near You

You can find MrSteam installed and serving clients’ needs at Canyon Ranch, The Ritz-Carlton, The Luxor, Bellagio, MGM Grand in Las Vegas, among many, many other major resorts, athletic franchises, and popular health facilities. If you’re considering steam yourself, we encourage you to try us out.

Features

• Stainless steel heating elements are corrosion-resistant

• ASME-grade flanges support longevity and reliable performance

• An Integral pressure gauge and sight glass provides operating information at a glance

• Standard full port drain valve enables maximum draining of the pressure vessel

• Comes equipped with a hinged access door for ease of installation and service

• Optional Automatic Blowdown System features electronically controlled maintenance and 24-hour/7-day programming


Product Specifications

Technical Specifications

Warranty

Limited 1-Year Warranty (US & Canada)

Limited Warranty for Mr.Steam® Residential Steambath Controls and Accessories Installed in the United States and Canada.

Mr.Steam® warrants that its MR.STEAM RESIDENTIAL STEAMBATH CONTROLS AND ACCESSORIES, installed in the United States or Canada including without limitation: iTempo™, Tempo/Plus™, iSteam®, AudioWizard™, SteamGenie® , iGenie™, AromaSteam, ChromaSteam®, MusicTherapy® In-Shower Speakers, MS Light, HomeWizard®, Drip Pan, Wall Mounted Steam/Shower Seats, and AutoFlush® automatic drain valves (collectively, Mr.Steam Controls and Accessories), are free from defects in materials and workmanship for two year from the date of purchase by the original consumer purchaser. Mr.Steam will repair or replace (at its option) Mr.Steam Controls and Accessories if they fail to conform to this limited warranty. All warranty work will be performed without charge when the Mr.Steam Control and Accessory is returned to the location designated by Mr.Steam within 2 years of the date of purchase.

◄ Click here to see the terms, conditions, and exclusions

This warranty does not apply to Controls and Accessories that are or have been: Used in any non-residential setting. Damaged by reason of local water conditions nstalled or operated other than in accordance with the applicable Mr.Steam supplied Installation, Operation and Maintenance Manual. This warranty applies to Controls and Accessories purchased and installed in the United States and Canada only. This warranty does not cover any costs to remove or reinstall the Control or Accessory. All freight charges must be pre-approved by Mr.Steam. This warranty applies only to Controls and Accessories purchased on or after January 1st, 2013. The foregoing is in lieu of all express or implied warranties. There are no warranties which extend beyond the description contained herein and specifically liability for any breach of any implied warranty of merchantability or fitness for a particular purpose is excluded. The duration of any warranties which may be implied by law notwithstanding the previous sentence (including the warranties of merchantability and fitness for a particular purpose) shall in no event exceed one year. In no event shall Mr.Steam be liable for special, incidental, or consequential damages arising from ownership or use of any Mr.Steam product or for any delay in the performance of its obligations under this warranty due to causes beyond its control. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You may have other rights, which vary from state to state.

Downloads

Videos

Frequently Asked Questions

Are you worried that installing a steam shower in your home might be an intimidating prospect? After all, this is likely something you’ve never done before. And you may have questions – lots of questions – and aren’t sure where to get the answers.

That’s why we created this steam shower FAQ – to give you answers to your top steam shower installation questions. We’ll help you learn how easy it is to install a steam shower and how quickly you can enjoy the benefits of steam at home!

◄Click Here To See The FAQ Section

How do I size my steam shower generator? Mr. Steam considers how to size a steam shower generator so important that we've developed the Virtual Spa System. It provides a streamlined step-by-step guide that walks you through sizing a generator, and also selecting your control, steam head and adding other options as well if you like. Go to https://usbathstore.com/ and enter the dimensions of your shower enclosure and select what finish material you’ll be installing on the walls, and ceiling and VirtualSpa will tell you which generator is best for your project.

Where can I purchase MrSteam products – Steam Shower Packages, Steam Showers Control, Steam Shower Generator, and Steam Shower Accessories?   Visit US Bath Store

Where can I find the Smart Sizing tool to determine what size MrSteam Residential Steam Shower generator I need?   To find the Smart Sizing tool, go to https://usbathstore.com/. You will find it just below the new interactive Virtual Steam Shower Generator and the Steam Shower generator Video. If you would also like to virtually select the steam shower control and steam head, please visit https://usbathstore.com/.

Do MrSteam Steam Shower Systems work with smart home and home automation systems?   Your MrSteam SteamShower System can integrate with many Home Automation and Smart Home systems by using our HomeWizard System, https://usbathstore.com/. Speak with your Home Automation system professional about installation options.

What are the differences between the MrSteam Steam Shower Controls, iSteam3, AirTempo, iTempoPlus, and iTempo?   They offer four distinct steam shower controls. Their most technologically advanced control, with unsurpassed swipe touch functionality in a sleek, contemporary package, the iSteam3. The only wireless steam shower control available, Air Tempo mounts on almost any hard surface. Their push-button friendly iTempoPlus and iTempo that mount nearly flush and are available in 11 designer finishes. You can learn about each in this complete article, Which Steam Shower Control Is Right for You?

Does My Existing Tub/Shower Need To Be Modified?   Most do, while others may not need to be. All have to be water tight on all walls and the ceiling. A licensed contractor who is familiar with steam can help you make that happen. We do recommend ceiling heights be no higher than 8’. You only need to tile and water seal the portion of the ceiling that will be directly exposed to the steam (inside the steam shower). The primary purpose is to retain heat and prevent moisture from escaping the shower enclosure.

What Determines The Size Of A Mrsteam Steam Shower Generator?   The size of your shower enclosure, in total cubic feet, along with finish material, will determine which MrSteam generator you will need. The larger the space, the more steam you need to fill it. And the more steam you need, the larger the generator needs to be. You may be reconfiguring a current shower for steam or constructing an entirely new space – large or small. We do recommend that your shower enclosure not be smaller than 3’ x 3’ x 7’. That way you have enough space to stand or sit a safe distance from the steam head. In all cases, there are a few criteria to take into account when selecting the right generator size: The steam shower dimensions: length, width, height. Multiply each to determine your total room volume in cubic feet. The materials for the shower walls and ceiling each have different heat retention properties, and this will be a factor in the generator you choose

Where Do I Install The Mrsteam Generator?   A MrSteam generator can be installed anywhere within 60’ of your steam room—in a heated attic or basement, closet, vanity, etc. We recommend leaving 12” of excess space on the top and sides for servicing and to ensure adequate ventilation. Do not install the steam generator inside the actual shower enclosure or in an unheated location where the water supply piping might freeze. Read this article: https://usbathstore.com/blogs/learning-center/how-to-install-a-steam-generator-3-minute-video-from-mrsteam

How Much Water Does A Steam Shower Use – And How Much Does It Cost To Operate?   You may be surprised to learn that energy usage for a MrSteam steam shower is typically less than $1 for an average steam shower session. To produce the steam needed for a typical 20-minute steam bathing session, a home steam generator only needs to heat two gallons of water—much less water than you use in a bath or shower! A week’s worth of steam sessions uses only 14 gallons of water.

Who Should Help Us Install The Steam Shower?   Because steam shower installation involves both water and electricity, we recommends professional installation by a licensed plumber, electrician, or contractor who is familiar with steam. USBathStore can supply the names of contractors and answer any questions your builder or contractor might have about steam shower installation.

Who Should Help Us Install The Steam Shower?   Because steam shower installation involves both water and electricity, we recommends professional installation by a licensed plumber, electrician, or contractor who is familiar with steam. USBathStore can supply the names of contractors and answer any questions your builder or contractor might have about steam shower installation.

How Does A Home Steam Shower Work?   A steam generator, typically no larger than a briefcase and often installed in a vanity or closet, heats the water to a boil. You push a button, delivering the resulting steam from the generator to the steam head outlet and into your shower enclosure. And then you relax and enjoy the luxury of steam. It's really quite simple.

When/Where Did Steam Bathing Begin?   The desire to cleanse, purify and enjoy steam in a communal setting stretches back as far as the Bronze Age. Steam bathing has always been a way to meet and socialize, relax and leave behind the stress of the day – whether that be in the thermae of ancient Rome, the sweat lodges of the Native Americans or the spring-fed onsen of the Japanese.

What Kind Of Wall And Ceiling Materials Are Best For Constructing A Steam Shower?   The more porous a material (e.g., marble, shale, granite, glass block, or concrete), the more quickly it will dissipate heat, rather than retaining it. If you choose the natural beauty of marble or stone for your steam shower, be sure to select a more powerful generator to compensate for the faster heat loss. Conversely, choosing nonporous materials like ceramic, porcelain or acrylic, will retain heat in the shower, and a smaller generator will be adequate.

Do I Have To Tile The Entire Bathroom Ceiling Or Just The Shower Ceiling?   You only need to tile the portion of the ceiling that will be directly exposed to the steam (inside the steam shower). Remember, the primary purpose of the tile is to retain heat and prevent moisture from escaping the shower enclosure.

Where Should I Install The Steam Generator?   A MrSteam generator can be installed anywhere within 60 feet of your steam room—in a heated attic or basement, closet, vanity etc. Just note that we recommend leaving 12 inches of excess space on the top and sides for servicing and to ensure adequate ventilation. Do not install the steam generator inside the actual shower enclosure or in an unheated location where the water supply piping might freeze.

What Kind Of Seating Should I Install In The Steam Shower?   Seating style is a personal preference and may depend on the shower room’s size. To maximize space in smaller showers, you might opt for a fold-up seat, such as the MrSteam teak seat, coated for moisture protection. Some users opt for a tiled bench that can be installed diagonally in a corner or along a wall, opposite the steam head.

How Much Does A Steam Generator Cost?   List prices for generators begin at $1,575 plus installation costs. Use our Virtual Spa Tool to get a handle on the pricing.

What Is The Minimum Size For A Steam Shower?   We recommend that your shower enclosure be a minimum of 3’ x 3’ x 7’. That way you have enough space to safely stand or sit on a fold-up seat installed across from the steam head.

Is It Ok To Have A Window In My Steam Shower?   While a window in the shower is common in some homes, many homeowners are concerned about steam (moisture) getting between the window and the outside wall. For steam showers that have an exterior window, you need to make sure they are properly insulated to prevent steam from escaping. We recommend using double-paned windows. If your window slides open, make sure it is gasketed to prevent steam loss during a shower.

Can I Include A Transom In My Steam Shower?   Some people have a transom window in their shower (think of a horizontal window that sits above a door, which sometimes is hinged to allow air movement). Although this window is mostly a design choice, it offers the practical benefit of allowing air into the shower when steam is not used. This allows moisture to exit from the enclosure (compared to a closed, air tight door). Just make sure it’s closed during a steam shower.

Do I Need To Slope My Steam Shower’s Ceiling?   Small grouted ceiling tiles tend to drip at the edges. As a result, smaller tiles with many grout joints may require a slight slope to prevent condensation from dripping down on top of the unsuspecting bather. In a residential setting, slope the ceiling 1/2" per foot away from where you will be sitting. If you use a solid material for your ceiling, like a sheet of Swanstone, you may not need a slope since it doesn’t trap condensation the same way grouted tiles do.

Can I Install Lighting In My Steam Shower?   When installing a light in a steam shower, make sure it is vapor proof and provides protection against moisture entry. The light is typically protected by a ground fault circuit interrupter (GFCI), which will shut off the power if it detects moisture in the fixture. MrSteam manufactures both recessed and surface mounted lights that are UL and cETus listed.

What Should I Do If My Steam Generator Starts Leaking Water?   Your steam generator should not leak, but in the event that it does, turn off the water along with the unit’s power supply. Contact our technical service department at 00-614-7411 and be ready to provide the generator’s model and serial number, how long it has been installed and where the leak appears to be coming from. We recommend installing a drip pan under the steam generator, which will prevent moisture damage in the case of possible leaks.

Why Is Sealing Steam Shower Windows And Doors So Important?   Sealed windows and doors mean that your steam shower will do what it’s supposed to do: provide you with a steam room experience in an enclosure where steam doesn’t escape and drafts can’t get you. There are two aspects to ensuring that perfect steam shower experience: We recommend installing a drip pan under the steam generator, which will prevent moisture damage in the case of possible leaks.

How to Seal Your Steam Shower Windows   Imagine that the personal steam spa sanctuary you have in mind is one where the outdoors seems to be one with indoors. Expansive windows bring sunlight and greenery inside. As you step into your glass enclosed steam shower, and billowy steam fills the space, you bask in the sunny green-tinted mist and feel the weight of the world leave your shoulders… That vision is totally doable as long as you – or rather your installation professional – properly seal your steam shower windows and doors. So, let’s talk about it. Why Is Sealing Steam Shower Windows And Doors So Important? Sealed windows and doors mean that your steam shower will do what it’s supposed to do: provide you with a steam room experience in an enclosure where steam doesn’t escape and drafts can’t get you. There are two aspects to ensuring that perfect steam shower experience: Windows in your steam shower enclosure that face and may open to the outside The glass windows, panels and doors around your steam shower enclosure Let’s explore both and how to ensure each is properly sealed. How To Seal An Exterior Window In A Steam Shower A poorly insulated window anywhere in your home is problematic. Even more when you have an exterior window in your steam sanctuary. Not only can it lead to energy loss, but also to uncomfortable drafts that completely take away from your relaxing SteamTherapy wellness session. An exterior window connects the inside of your home to the outside; it visually brings the natural world into your home. However, since it interacts with the outdoors, it also has to deal with temperature changes that can stress the window materials through expansion and contraction. Furthermore, according to the Second Law of Thermodynamics, heat naturally moves toward cold surfaces. If your exterior steam shower window isn’t properly sealed, that steamy vapor will escape outdoors or penetrate the window itself. Advice On Sealing Your Steam Shower Exterior Windows So you can experience the outdoors in your steam room on your terms only (i.e., the steam stays in and the cold air stays out), here is advice for dealing with those exterior windows. Kris Lee, MrSteam Regional Sales Manager who started out in technical support, explains that for maximum protection you should ensure that your external window is composed of double paned glass to prevent any heat or cold from coming in or going out. The editors at Fine Homebuilding magazine encourage the use of vinyl-clad windows housed in a wooden jamb, cement backer board, a waterproof membrane, and a good quality silicone caulk. About the window, they explain, “The vinyl provides maintenance-free protection from moisture for the window itself. The all-wood jamb provides a flat and sound base. Make sure that you locate the window outside the range of the spray from the showerhead.” And, ‘When the tile is complete and the grout is sealed, use a good silicone caulk where any two planes come together, like where the window meets the newly tiled jamb.’ They also recommend checking every year to anticipate cracked joints that you might caulk or grout if necessary. How To Seal The Glass Windows, Panels And Doors Around Your Steam Spa For The Best Puffy White Steam Next is sealing the glass windows, large glass doors and side panels that face inside your home and allow even more light into your steam shower. Your personal steam shower needs to be enclosed and insulated to keep the soothing steam in place. It should be equipped with a water-tight shower door, too. And although the shower space needs to be water-tight, it does not have to be air-tight. In fact, some air infiltration, especially around the shower door, allows you to see the steam form. “When your shower is completely water-tight, you get that puffy white vapor that is integral to the steam experience,” says Lee. "Create a water-tight seal steam shower door seal--rather than just an air-tight one--to get the best puffy white steam." Advice On Sealing Glass Windows, Panels And Doors According to Lee, it’s best to seal doors and glass panels with a glazing gasket or strips. These gaskets or strips are made of rubber; they go on each side of the glass, holding it in place while keeping moisture in the shower area. Similarly, add a silicone weather strip at the bottom of the glass door for a better seal. The editors of Buildipedia say the key to successfully installing waterproof glass panels is to lay down a thick bead of silicone caulk on shower curbs and side rails, as well as any joints where the frames meet the walls. Bonus Tip: How To Ventilate Your Sealed Steam Shower So you’ve taken care of properly sealing all your windows, glass panels and doors, and can go about regularly enjoying all of your steam shower’s steamy goodness. Here’s how to easily let that steam out when you’re done: Turn on your shower to condense the remaining steam in the enclosure before stepping out. Use an exhaust fan. Standard exhaust fans (located outside of your steam shower) will remove the moist air from your bathroom. Install a louver. When opened, a louver will let air out of your steam shower so the exhaust fan can take care of it. Reminder: No heating, venting or air conditioning devices should be installed inside the steam room! In short, if you do have windows in your steam shower, you don’t need to worry. As long as they are properly sealed, they won't in any way detract from your steam room experience. What Other Steam Shower Questions Can We Help You With? At MrSteam, we’re dedicated to answering all of your questions regarding steam room installation and design. If you have questions about steam, let us know in the comments. We want you to fully enjoy the health and wellness benefits of steam.
