"MAKING STEAM SINCE 1917"

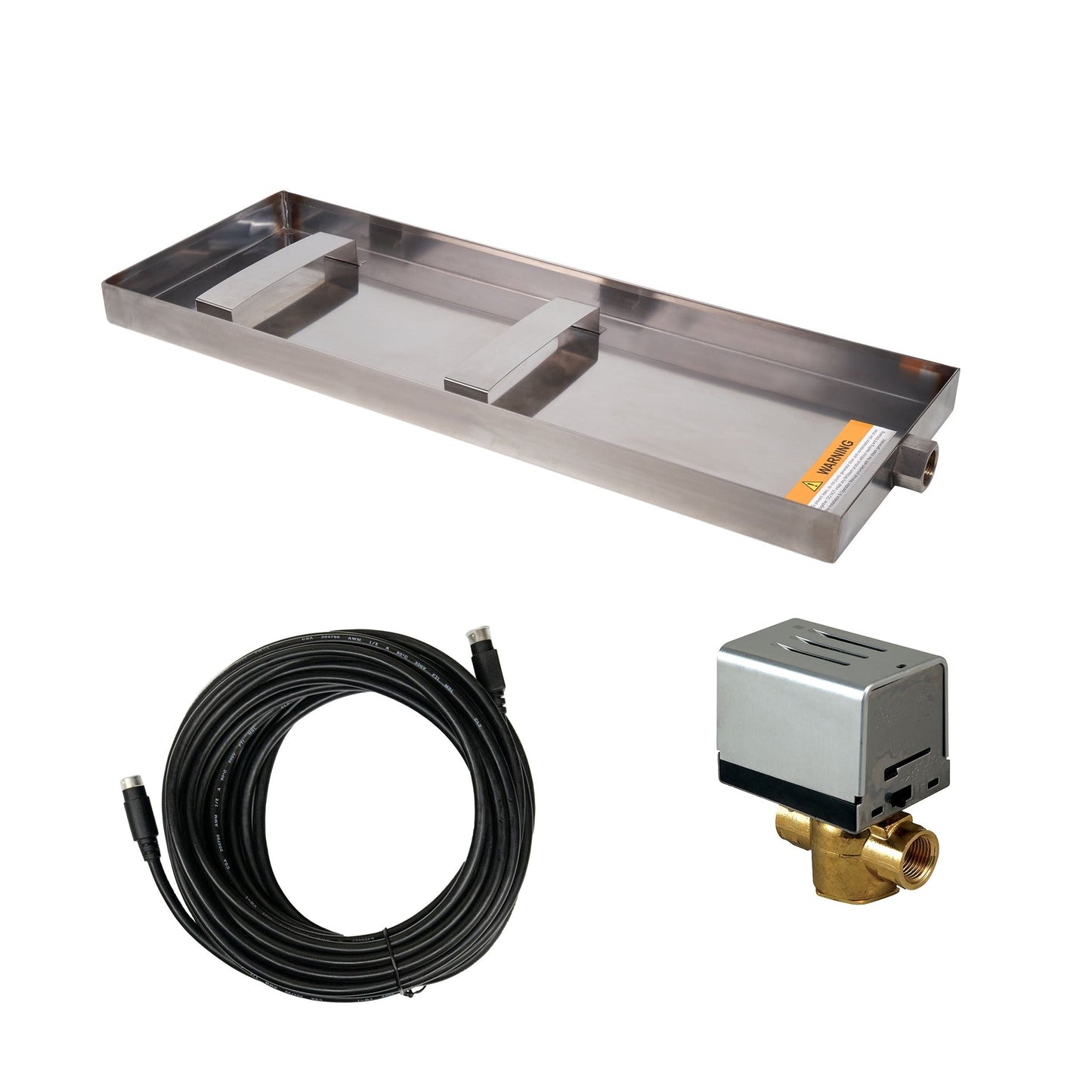

The package has everything you need for the rough in stage of a steam shower system installation of a MS Generator, and features an AutoFlush®, a Condensation Pan®, and a 30-foot control cable.

What's Included

AutoFlush® Self-Cleaning System

Clean Steam... Every Time®

Clean Steam Without Lifting a Finger

Your steam generator is the most important component of your steam shower. Protect your investment with AutoFlush. AutoFlush is a MrSteam exclusive product. It’s an automatic self-cleaning system that promotes a long, healthy life for steam generators by automatically flushing the generator of sediment two hours after every steambath.

We automate everything in the background, so no work is needed after every steam shower session. AutoFlush assures that you get clean steam every time.

The optional AutoFlush System feature automatically drains the MrSteam system following each use. A time delay allows the water to cool down (about two hours) before it drains by gravity for a safe and gentle operation.

◄Click here to know more about the AutoFlush® Features

	Electronic Valve The system quietly flushes impurities through a ½” electronically-activated valve – no small opening to clog.
	Automatic Flush Automatically flushes old water and impurities from your steam generator after every session, no buttons to push to initiate draining.
	Prolongs Generator Impurities and old water are flushed through an electronically activated valve. There’s nothing to remember.

Steam Installation & Planning

Box Contents AutoFlush Valve with Cord Installation instructions

Note If the Express Steam® option has been installed, the AutoFlush will drain for ten minutes then refill with fresh water to begin the pre-heat cycle.

Condensation Pan

Prevents Water Spillage From The Generator

Protects against potential water leaks

Sitting under our e-SERIES Generators, the Condensation Pan protects from potential water escape. Just locate the condensation pan on a solid level surface and place the steam generator inside the condensation pan. Ensure the steam generator is level as the condensation pan drains by gravity.

Mr.Steam strongly recommends the use of a condensation pan in the unlikely event of a plumbing leak

◄Click here to know more about the Condensation Pan

Specifications Pairs with e-SERIES MrSteam generators 25” x 9” x 1 ½” (L x W x H)

Steam Installation & Planning

Important Note All plumbing shall be performed by a qualified licensed plumber and in accordance with applicable national and local codes. Check local plumbing code for receptor, trap, and vent requirements.

Features

• Complete rough in kit for use with all MrSteam MS Generators

• AutoFlush introduces fresh water before each steam bath and drains the MS Series Generator tank following use

• Condensation Pan installs beneath the MS Steam Generator, connects to an approved drain line to collect, and direct a potential water accumulation or leak

• 30-Foot Control Cable for iSteam3, iTempoPlus and iTempo Steam Shower Controls

• MS Rough-In Kit for AirTempo includes: (1) Autoflush® (1) Condensation Pan (1) 30-Foot Control Cable

Product Specifications

Technical Specifications

Warranty

Limited 2-Years Warranty (US & Canada)

Limited Warranty for Mr.Steam® Residential Steambath Controls and Accessories Installed in the United States and Canada.

Mr.Steam® warrants that its MR.STEAM RESIDENTIAL STEAMBATH CONTROLS AND ACCESSORIES, installed in the United States or Canada including without limitation: iTempo™, Tempo/Plus™, iSteam®, AudioWizard™, SteamGenie® , iGenie™, AromaSteam, ChromaSteam®, MusicTherapy® In-Shower Speakers, MS Light, HomeWizard®, Drip Pan, Wall Mounted Steam/Shower Seats, and AutoFlush® automatic drain valves (collectively, Mr.Steam Controls and Accessories), are free from defects in materials and workmanship for two year from the date of purchase by the original consumer purchaser. Mr.Steam will repair or replace (at its option) Mr.Steam Controls and Accessories if they fail to conform to this limited warranty. All warranty work will be performed without charge when the Mr.Steam Control and Accessory is returned to the location designated by Mr.Steam within 2 years of the date of purchase.

◄ Click here to see the terms, conditions, and exclusions

This warranty does not apply to Controls and Accessories that are or have been: Used in any non-residential setting. Damaged by reason of local water conditions nstalled or operated other than in accordance with the applicable Mr.Steam supplied Installation, Operation and Maintenance Manual. This warranty applies to Controls and Accessories purchased and installed in the United States and Canada only. This warranty does not cover any costs to remove or reinstall the Control or Accessory. All freight charges must be pre-approved by Mr.Steam. This warranty applies only to Controls and Accessories purchased on or after January 1st, 2013. The foregoing is in lieu of all express or implied warranties. There are no warranties which extend beyond the description contained herein and specifically liability for any breach of any implied warranty of merchantability or fitness for a particular purpose is excluded. The duration of any warranties which may be implied by law notwithstanding the previous sentence (including the warranties of merchantability and fitness for a particular purpose) shall in no event exceed one year. In no event shall Mr.Steam be liable for special, incidental, or consequential damages arising from ownership or use of any Mr.Steam product or for any delay in the performance of its obligations under this warranty due to causes beyond its control. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You may have other rights, which vary from state to state.

Downloads

• Planning Guide
• General Installation Guide
• Benefits Brochure
• Steam Benefits Brochure
• AutoFlush® (MS81500E)

• Condensation Pan (103867)
• AutoFlush® Installation
• AutoFlush® Specifications
• Condensation Pan Specifications
• Warranty
