PULSE ShowerSpas 4001R-SSB

PULSE ShowerSpas Ergo Slide Bar and Grab Bar Right Installation in Brushed Stainless Steel With Multi Function Hand Shower

PULSE ShowerSpas Ergo Slide Bar and Grab Bar Right Installation in Brushed Stainless Steel With Multi Function Hand Shower

Regular price $150.50
Regular price $215.00 Sale price $150.50
Sale Sold out

Shower Seat

-- Please Select --

No, Thank You

Corner Bar

-- Please Select --

No, Thank You

Safety Bar

-- Please Select --

No, Thank You

Valve Bar

-- Please Select --

No, Thank You

Mixing Valve

-- Please Select --

No, Thank You

  • Free Shipping on Orders Over $200
  • Free Returns & No Restocking Fees for 100 Days
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Providing quality decorative plumbing products for over 17 years!

The Pulse ShowerSpas Ergo Slide Bar is a Concealed Screw Slide/Grab Bar and is built to exceed ADA standards. This Stainless Steel grab bar with an ergonomic soft-grip includes an ADA-compliant handshower holder and multi-function handshower along with convenient finger-tip flow control to allow for a trickle option. Handshower can be mounted on the existing shower arm and can be used as a showerhead. The ErgoSlideBar is compatible with any pre-existing or new shower system.

What's Included

  • Stainless Steel Grab Bar and Slide Bar
  • Hand Shower
  • Shower Hose
  • Shower Arm Mount with Hand Shower Holder
  • Mounting Hardware

Not Included

  • Corner Bar (sold separately)
  • Safety Bar (sold separately)
  • Valve Bar (sold separately)
  • Mixing Valve (sold separately)

Features

  • Made of 304 Stainless Steel
  • ADA Compliant
  • L-type stainless steel rail, ErgoSlideBar diameter 32mm, grab and slide bar
  • Slider specifically designed to be used by people with limited mobility
  • Multi-function handshower includes a finger-tip flow control to allow for trickle option
  • Handshower holder with ADA-compliant sliding and lock function
  • Ergonomic soft grip provides comfortable grip placement
  • 72-inch hose
  • Compatible with any pre-existing or new shower system
  • All fixtures in Brushed Nickel finish
  • Grab bar in brushed stainless finish
  • Mounting hardware included
  • Left or Right side

Specifications

Finish Brushed Stainless Steel
Height 31.5"
Width 13.7"
Depth 3.6"
Weight 8 lbs
Dimensions 31.5" H x 13.7" W x 3.6" D
Shipping Box Size 32" L x 15" W x 4" H
Shipping Box Weight 11 lbs
Flow Rate 2.5 GPM/9.5 LPM
Materials Stainless Steel, ABS
Handshower Function Multi-Function
Handshower Spray Functions Wide/Jet/Wide and Massage
Handshowerhead Material ABS
Handshowerhead Diameter 4.25"
Handshower Hose Length 72"
Prop 65 Required N/A
Prop 65 Chemical N/A
Prop 65 Warning WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
Massachusetts Approval No
Shipping Restrictions CA, CO, NV and New York City, NY

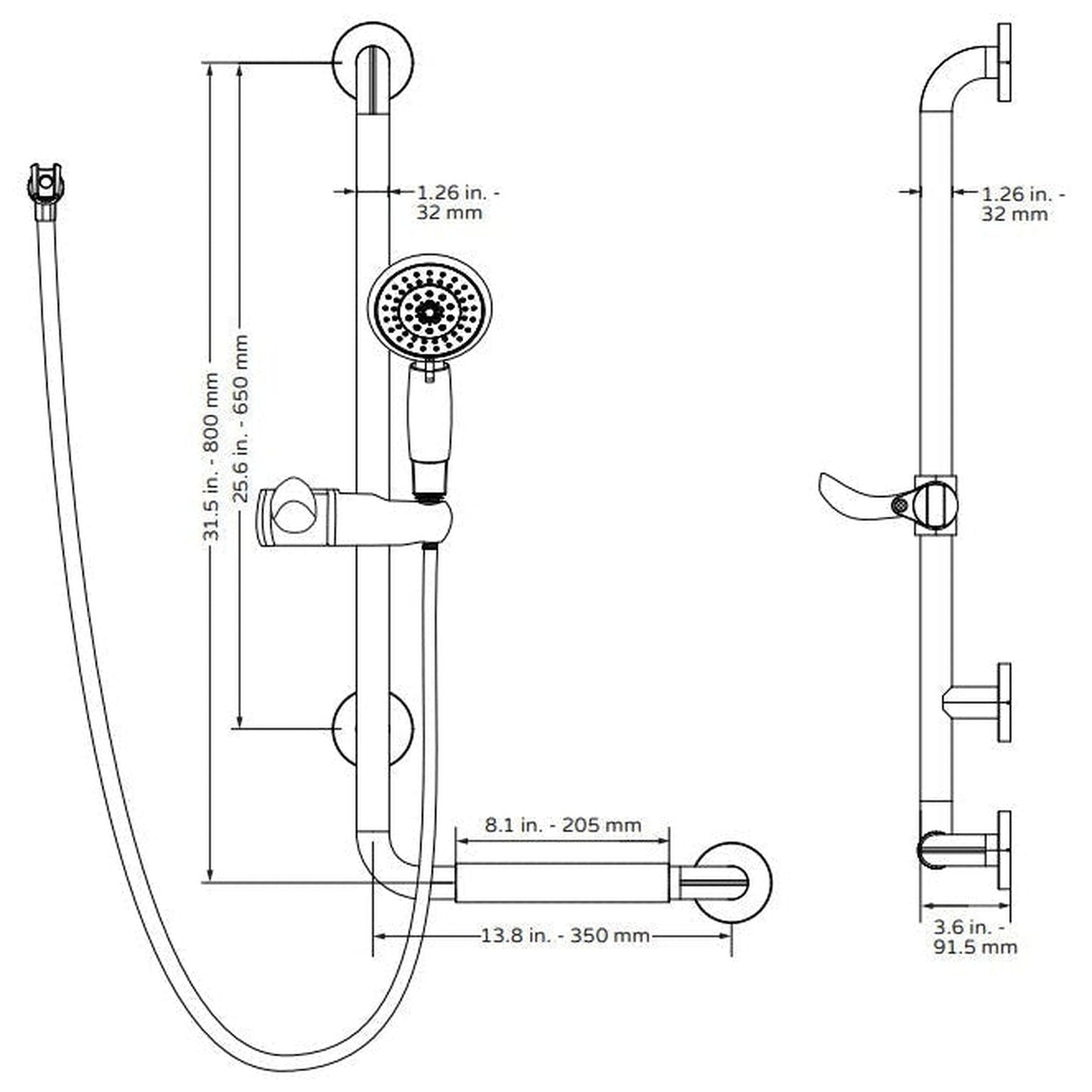

Dimensions

Care & Maintenance

To keep your ShowerSpa looking new, wipe down after each use with a soft cotton cloth.

Protect your ShowerSpa from hard water stains and mineral deposits by periodically using an auto spray wax

Clean using mild liquid soap and a non-abrasive sponge or cloth. Rinse with clean water.

If the flow rate of your ShowerSpa is less than desired or reduces over time, flow restrictors located in the inlet fitting can be removed for cleaning. If further assistance is required contact our customer support.

Do Not Use Any Kind Of Chemical Or Abrasive

Warranty

Defects Covered: Warranty Period. Pulse Shower Spas, Inc. (“Pulse”) warrants to the original consumer purchaser who purchases this shower spa (the “Product”) for use in his or her own home, that the Product will be free from defects in material and manufacturing workmanship for as long as the original consumer purchaser owns that same home. For all other purchasers (including, but not limited to purchasers for industrial, commercial and business use), the above warranty will apply for a period of 5 years from the original date of purchase.

Remedy: If the Product does not conform to the above warranty, Pulse, at its option, will repair or replace the Product, free of charge, or refund your purchase price. For warranty claims, please visit www.pulseshowerspas.com/index.php/warranty. Pulse may require that you return the Product to Pulse, shipping prepaid, in which case Pulse will provide you with a return materials authorization number (RMA). Pulse may also require that you provide evidence of the date you purchased the Product. Pulse will ship a new or repaired Product to you, at the expense of Pulse, or refund your purchase price. Service labor performed by you or others in connection with the removal or replacement of the Product will not be reimbursed by Pulse.

Exclusions: Pulse shall not be responsible for failure of the Product, and the above warranties will not apply, if the product fails as a result of improper installation, improper use, modifications or repairs by anyone other than Pulse, or accident or abuse (including damage during shipment).

Warranty on Repairs and Replacements: For consumer purchasers who purchased the Product for home use, repaired or replacement Products will continue to be covered under this warranty for as long as he or she owns that same home. For other purchasers, repaired or replacement Products will be covered for the balance of the original warranty period.

Downloads

Frequently Asked Questions

What size pipe do I need for the Showerspa?



 The Pulse Showerspa is set up for ½’’ supply lines. If you have ¾’’ supply lines you can reduce them at the stub out location to ½’’.
Can I use them in new construction?



 Yes, builders are utilizing the PULSE Showerspa more and more because of the ease of installation and all the showering functions incorporated into one system.
How much pressure do I need to have performance from the jets?



We recommend 45psi or above. They will function on less, however the performance may be affected.
How much does a Showerspa weigh?



The Showerspas range in weight from 25 to 35lbs.
Can I have two functions operating at the same time?



It depends on the model. Most models have a single control/diverter valve where you select one function at a time. However some models are plumbed with two diverters allowing you to operate two functions at the same time.
What is the rain showerhead spray like?



It is a very soothing effect, for a more concentrated spray most people switch to the handheld, a nice option to have.
Do the Showerspas come with all hardware for installation?



All the hardware to mount the Showerspa is included. Depending on the situation, some plumbing connectors/fittings may need to be purchased to complete the plumbing connections.
Does Pulse Showerspas carry replacement parts?



Yes, we inventory spare parts for all our models.
How do I know if the jets have a massaging action?



Refer to the specification pages for the particular model you are interested in or give us a call or send an email.
Should a licensed plumbing contractor install my Showerspa?



PULSE recommends a licensed plumbing contractor complete the installation but a handy person with plumbing experience should be able to complete the installation. We recommend you follow all local plumbing codes when installing.
What is the warranty period for my PULSE Showerspa?



Three-year limited manufacturer’s warranty.
Do I need a special enclosure in my shower?



You need to take preventative measures so water doesn’t escape the shower area.
Can the jets be cleaned out if they clog?



Most of the Showerspa jets have flexible rubber tips which help to eliminate mineral build-up.
How do I clean my Showerspa?



Use mild cleaners without any abrasives or harsh chemicals. To help keep the Showerspa clean, we recommend a coat of wax or a RainX® type of product be applied a 3-4 times a year and wipe off the Showerspa after each use.
Will any Shower Systems work with my shower valve?



Yes, the Lanikai1028-CH/BN and all of our “Shower Systems” units will work with your current valve.
