PULSE ShowerSpas Splash ABS Contruction Rain Shower System in Chrome Finish 2.5 GPM With 2-Body Jet and Hand Shower

PULSE ShowerSpas Splash ABS Contruction Rain Shower System in Chrome Finish 2.5 GPM With 2-Body Jet and Hand Shower

Regular price $234.50
Regular price $335.00 Sale price $234.50
Sale Sold out

Mixing Valve

-- Please Select --

No, Thank You

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
Providing quality decorative plumbing products for over 17 years!

The Splash Shower System replaces your existing showerhead in minutes with a complete shower system. Simply select the function or combination of functions you desire via the conveniently located brass diverter. Choose from a soothing rain shower, pulsating body jets or a convenient handshower. Specifically designed for easy installation and simple functionality, the Splash delivers a first-class experience to any shower. Typical installation is less than 1 hour—even for the do-it-yourself. It simply connects to the water supply at your existing showerhead location and uses your existing hot/cold shower valve. This product cannot be shipped to CA, CO and New York City, NY due to their 1.8 gallons per minute flow restriction.

What's Included

  • 1 pc. Splash Showerspa
  • 2 pcs. Body Jets
  • 1 pc. Rubber Washer (6mm)
  • 1 pc. Showerhead
  • 1 pc. 90° Degree Inlet Fitting
  • 1 pc. Compression Nut
  • 1 pc. Mounting Plate
  • 1 pc. 2½" Brass NPT Nipple
  • 6 pcs. Nylon Wall Anchor (7x37mm)
  • 6 pcs. Philips Coarse Screw (5x35mm)
  • 1 pc. Retaining Washer
  • 1 pc. Brass Nut
  • 3 pcs. Rubber Washer (2mm)
  • 1 pc. Supply Line
  • 1 pc. Hand Shower Mount
  • 1 pc. Hand Shower
  • 2 pcs. Nylon Wall Anchor (5x30mm)
  • 2 pcs. Philips Coarse Screw (4x35mm)
  • 2 pcs. Philips Machine Screw (4x25mm)
  • 2 pcs. Lock Washer
  • 2 pcs. Nut (4mm)
  • 1 pc. Escutcheon Base Plate (ABS)
  • 1 pc. Escutcheon Cover (ABS)
  • 1 pc. Hand Shower Hose
  • 1 pc. Shower Arm Plug
  • 1 pc. Chrome Escutcheon
  • 1 pc. Supply Line Extension (40cm)
  • 1 pc. Supply Line Connector

Not Included

  • Mixing Valve (sold separately)
  • Slide Bar

Features

  • Surface-mounted and completely pre-plumbed, easily retrofit your existing shower without a remodel
  • Durable ABS construction is lightweight, corrosion-resistant and provides superior strength
  • 8" Rain showerhead with soft tips to clear mineral buildup for long-lasting performance
  • 2 Pulsating body jets provide a soothing spray with adjustable positioning
  • Invigorating handshower with 59" double-interlocking stainless steel hose
  • Brass diverter easily switches functions—place between functions for further enjoyment
  • Rub tips clean with Spray Straight™ technology
  • Simply replaces your existing showerhead/shower arm
  • Backflow protection in the handshower hose
  • Drill-less mounting

Specifications

Finish Silver
Fixture Finish Chrome
Height 36.5"
Width 7"
Depth 16.5"
Weight 6 lbs
Dimensions 36.5" H x 7" W x 16.5" D
Shipping Box Size 38" L x 16" W x 7" H
Shipping Box Weight 12 lbs
Flow Rate 2.5 GPM/9.5 LPM Shower System
Materials ABS, Brass
Valve Type N/A
Valve Included No
Cartridge Technology N/A
cUPC Approved Unit No
Diverter Location Integrated
Shower Arm Reach 12.5"
Showerhead Width 8"
Showerhead Shape Square
Showerhead Functions Single Function
Showerhead Spray Pattern Rain
Handshower Function Single Function
Handshower Spray Functions Massage
Handshowerhead Material ABS
Handshowerhead Diameter 1.5"
Handshower Hose Length 59"
Connection 1/2 NPT Brass Nipple
Slide Bar Included No
Body Jets Included Yes
Body Jet Quantity 2
Prop 65 Required Yes
Prop 65 Chemical Lead
Massachusetts Approval No
Shipping Restrictions CA, CO, NV and New York City, NY
Prop 65 Warning WARNING: This product can expose you to certain chemicals, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov

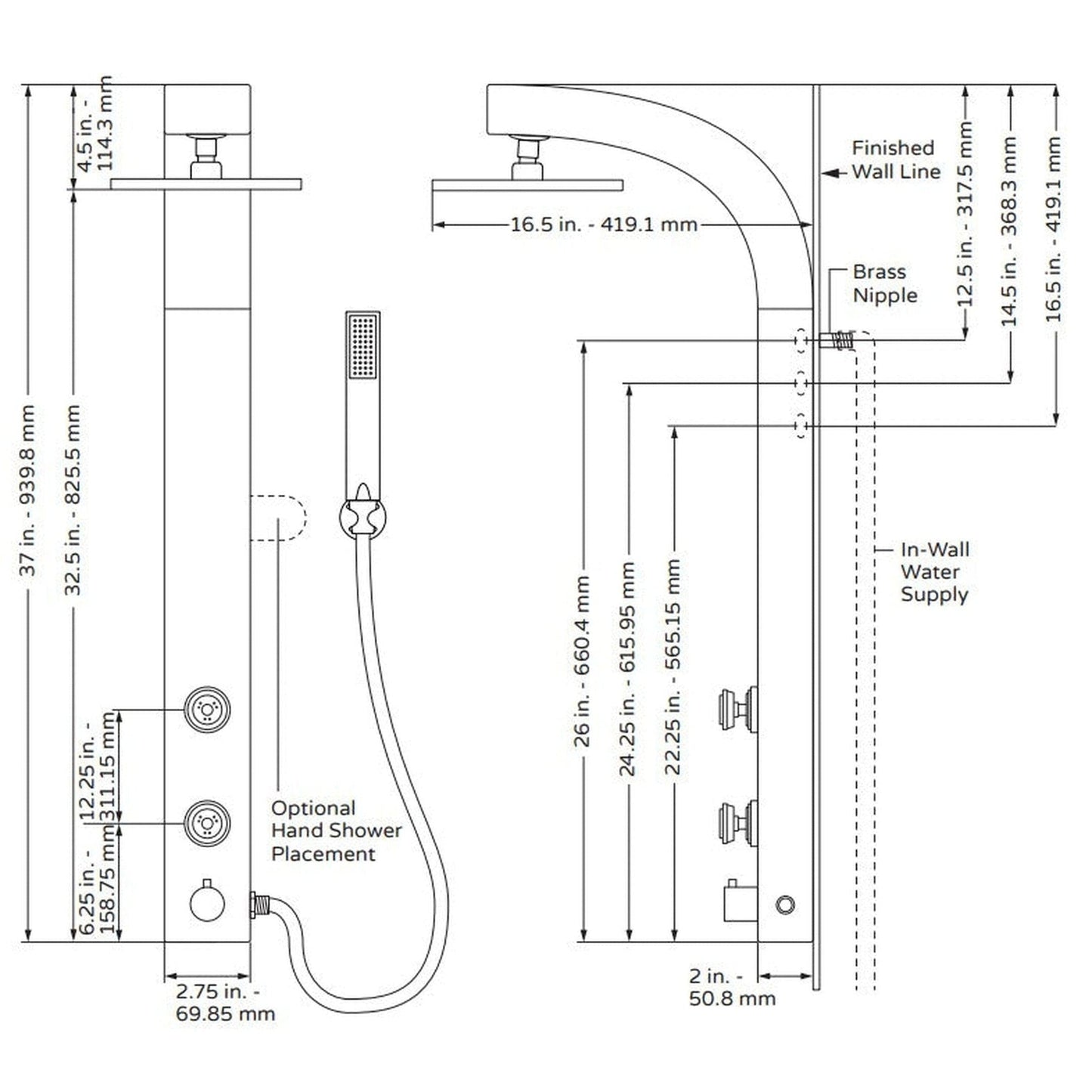

Dimensions

Care & Maintenance

To keep your ShowerSpa looking new, wipe down after each use with a soft cotton cloth.

Protect your ShowerSpa from hard water stains and mineral deposits by periodically using an auto-spray wax

Clean using mild liquid soap and a non-abrasive sponge or cloth. Rinse with clean water.

If the flow rate of your ShowerSpa is less than desired or reduces over time, flow restrictors located in the inlet fitting can be removed for cleaning. If further assistance is required contact our customer support.

Do Not Use Any Kind Of Chemical Or Abrasive

Warranty

Defects Covered: Warranty Period. Pulse Shower Spas, Inc. (“Pulse”) warrants to the original consumer purchaser who purchases this shower spa (the “Product”) for use in his or her own home, that the Product will be free from defects in material and manufacturing workmanship for as long as the original consumer purchaser owns that same home. For all other purchasers (including, but not limited to purchasers for industrial, commercial and business use), the above warranty will apply for a period of 5 years from the original date of purchase.

Remedy: If the Product does not conform to the above warranty, Pulse, at its option, will repair or replace the Product, free of charge, or refund your purchase price. For warranty claims, please visit www.pulseshowerspas.com/index.php/warranty. Pulse may require that you return the Product to Pulse, shipping prepaid, in which case Pulse will provide you with a return materials authorization number (RMA). Pulse may also require that you provide evidence of the date you purchased the Product. Pulse will ship a new or repaired Product to you, at the expense of Pulse, or refund your purchase price. Service labor performed by you or others in connection with the removal or replacement of the Product will not be reimbursed by Pulse.

Exclusions: Pulse shall not be responsible for failure of the Product, and the above warranties will not apply, if the product fails as a result of improper installation, improper use, modifications or repairs by anyone other than Pulse, or accident or abuse (including damage during shipment).

Warranty on Repairs and Replacements: For consumer purchasers who purchased the Product for home use, repaired or replacement Products will continue to be covered under this warranty for as long as he or she owns that same home. For other purchasers, repaired or replacement Products will be covered for the balance of the original warranty period.

Documents & Files

Frequently Asked Questions

What size pipe do I need for the Showerspa?



 The Pulse Showerspa is set up for ½’’ supply lines. If you have ¾’’ supply lines you can reduce them at the stub out location to ½’’.
Can I use them in new construction?



 Yes, builders are utilizing the PULSE Showerspa more and more because of the ease of installation and all the showering functions incorporated into one system.
How much pressure do I need to have performance from the jets?



We recommend 45psi or above. They will function on less, however the performance may be affected.
How much does a Showerspa weigh?



The Showerspas range in weight from 25 to 35lbs.
Can I have two functions operating at the same time?



It depends on the model. Most models have a single control/diverter valve where you select one function at a time. However some models are plumbed with two diverters allowing you to operate two functions at the same time.
What is the rain showerhead spray like?



It is a very soothing effect, for a more concentrated spray most people switch to the handheld, a nice option to have.
Do the Showerspas come with all hardware for installation?



All the hardware to mount the Showerspa is included. Depending on the situation, some plumbing connectors/fittings may need to be purchased to complete the plumbing connections.
Does Pulse Showerspas carry replacement parts?



Yes, we inventory spare parts for all our models.
How do I know if the jets have a massaging action?



Refer to the specification pages for the particular model you are interested in or give us a call or send an email.
Should a licensed plumbing contractor install my Showerspa?



PULSE recommends a licensed plumbing contractor complete the installation but a handy person with plumbing experience should be able to complete the installation. We recommend you follow all local plumbing codes when installing.
What is the warranty period for my PULSE Showerspa?



Three-year limited manufacturer’s warranty.
Do I need a special enclosure in my shower?



You need to take preventative measures so water doesn’t escape the shower area.
Can the jets be cleaned out if they clog?



Most of the Showerspa jets have flexible rubber tips which help to eliminate mineral build-up.
How do I clean my Showerspa?



Use mild cleaners without any abrasives or harsh chemicals. To help keep the Showerspa clean, we recommend a coat of wax or a RainX® type of product be applied a 3-4 times a year and wipe off the Showerspa after each use.
Will any Shower Systems work with my shower valve?



Yes, all of our “Shower Systems” units will work with your current valve.
