Discover intricate precision and design excellence in the Swiss Madison collection, redefining contemporary bathroom aesthetics. Optimize space and aesthetics with our wall-mount toilets, offering a clean and polished look with seamless integration. Offered in white with a glossy finish.

The Calice Wall-Hung Kit comes with a round space saving toilet bowl, adding a modern touch to any bathroom setting. The concealed in-wall tank has an adjustable height steel frame and large flush actuator opening for easy access to the inner tank and shut off valve once installed. The foam insulated tank protects from condensation and helps to reduce flush noise. The flush actuator provides a functional aesthetic component that completes this wall-hung toilet kit.

What's Included

• Toilet Bowl
• Seat
• Hardware for top-mounted installation
• Concealed Tank
• Wall Actuator

Parts

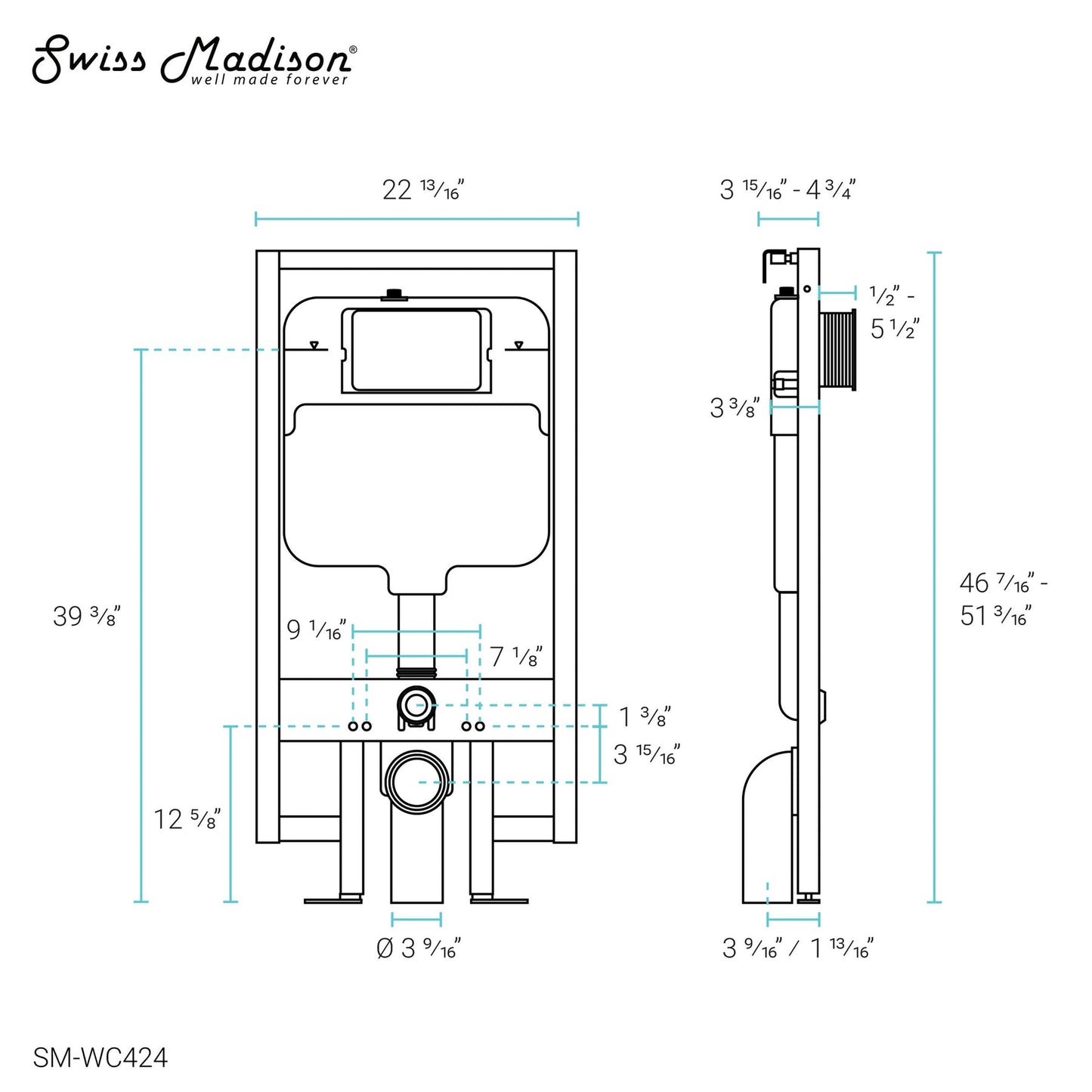

• Carrier System: SM-WC424
• Wall-Hung Toilet: SM-WT465
• Actuator Plate: SM-WC001C

Not Included

• Supply Line (Required Components)

Features

• Round front design is perfect for space-efficient settings
• Durable Ceramic Material
• Slymm™ Soft-Close, Quick-Release Toilet Seat
• Carrier system installed on 2x4 studs for residential walls
• Dual-flush offers you the choice of full or partial flush 0.8/1.6 gallons per flush (GPF)
• Actuator plate can be removed for easy access to the inner tank and shut off valve
• Adjustable allowing the bowl height to be set anywhere from 15” to 22” inches from the floor
• Steel Frame rated for 500lbs

Product Highlights

	Secure Hold
	Soft-Close Seat
	Quick-Release Seat
	Removable Flush Plate for easy tank access
	Adjustable Height
	Dual-Flush To conserve water

Specifications

Dimensions

Warranty

One-Year Limited Warranty

Swiss Madison products are made with quality materials and excellent craftsmanship to provide our customers with beautiful, durable, long-lasting products. Should there be any defects in materials or craftsmanship under regular use that are discovered within the first year of installation, Swiss Madison® will provide replacement parts at no charge, or at its discretion, replace any product or part of the product that is deemed defective, under normal installation, use, service or maintenance. This warranty applies only to the original purchaser. Proof of purchase will be required in the instance of a claim.

Swiss Madison recommends all installations of Swiss Madison products to be conducted by a licensed, professional plumber or contractor. Swiss Madison® will not be held responsible for any damage or product failure due to improper installation, misuse, or failure to utilize a licensed professional for installation. Swiss Madison® is not responsible for any installation or removal costs.

This One Year Limited Warranty Will Be Voided If:

• The installation recommendations were not followed by the installer
• The product has been moved from its initial place of installation
• The product has in any way been modified from its packaged state
• The product has been subjected to improper maintenance, abuse, misuse, excessive use of chemicals, accidents, or other damages, etc.

Swiss Madison makes no implication that its products comply with any local building or plumbing codes. It is the consumer’s responsibility and obligation to determine local code compliance prior to and during installation. This warranty extends only to the original purchaser and first consumer.

Swiss Madison is not responsible for any special, incidental, or consequential damages associated with the installation, replacement, return or use of the original purchaser’s product. This includes, but is not limited to: freight costs, labor, travel time, lost profit, home damages, and other contingent liabilities and costs (including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services).

The Swiss Madison warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison. Certain states have variances regarding implied warranties; in those situations, we remain fully compliant.

Documents & Files

• Installation Manual
• Specification Sheet
• Swiss Madison Kitchen and Bath Catalog

Frequently Asked Questions

My flush is poor/not strong enough, what do I do?   Please turn your water off and empty the tank before starting. This makes it easier to reach the parts needed. Remove the flush valve. If you twist the unit slightly and lift up the whole piece should pop right out. Before adjusting any dials, turn the unit over and check the seal on the very bottom. Make sure it is not damaged in any way. There is a small “ledge” you can fit your thumb on near the long, blue, plastic piece that looks like a ruler. Push this piece down all the way down until you see the number The piece should “click” in. To the left of that ruler piece, there is a small switch the size of your thumb. Make sure this is pushed all the way up. The arrow should be pointing at the “10.” You can then replace the flush valve, turn your water on and give a few test flushes. These settings are the settings for maximum flush power. *For all models except SM-1T803.

The water level in my bowl is very low, is there a way to adjust this?   In general, our toilets have a low water spot. If you wish to increase the water level inside of your bowl, there are small adjustments you can make. Next to your flush valve inside of the toilet tank, there is a small cylinder. On the top of this tube is a small dial. You can set the dial to “8” and this will slightly increase the water level in your bowl. Please note that it may take time for the changes to appear.

I need to make adjustments to my fill valve, how do I do this?   Please be sure to have your water off and tank empty before you make these adjustments The float on your fill valve can be adjusted by twisting the little screw on the end of the arm, above the float. If that is insufficient, you can make larger adjustments by reaching on the side of the fill valve and flipping the switch (it is about the size of your thumb). This will “unlock” the fill valve and you should be able to slide the unit up or down to fit your needs. This is the first step. Please let us know if this does not work for you It may be hard to flip at first. But, this will allow you to make larger adjustments with your fill valve. If this does not work, you may need to check the seal on your flush valve..
