SKU:TEL145-D10E#CP

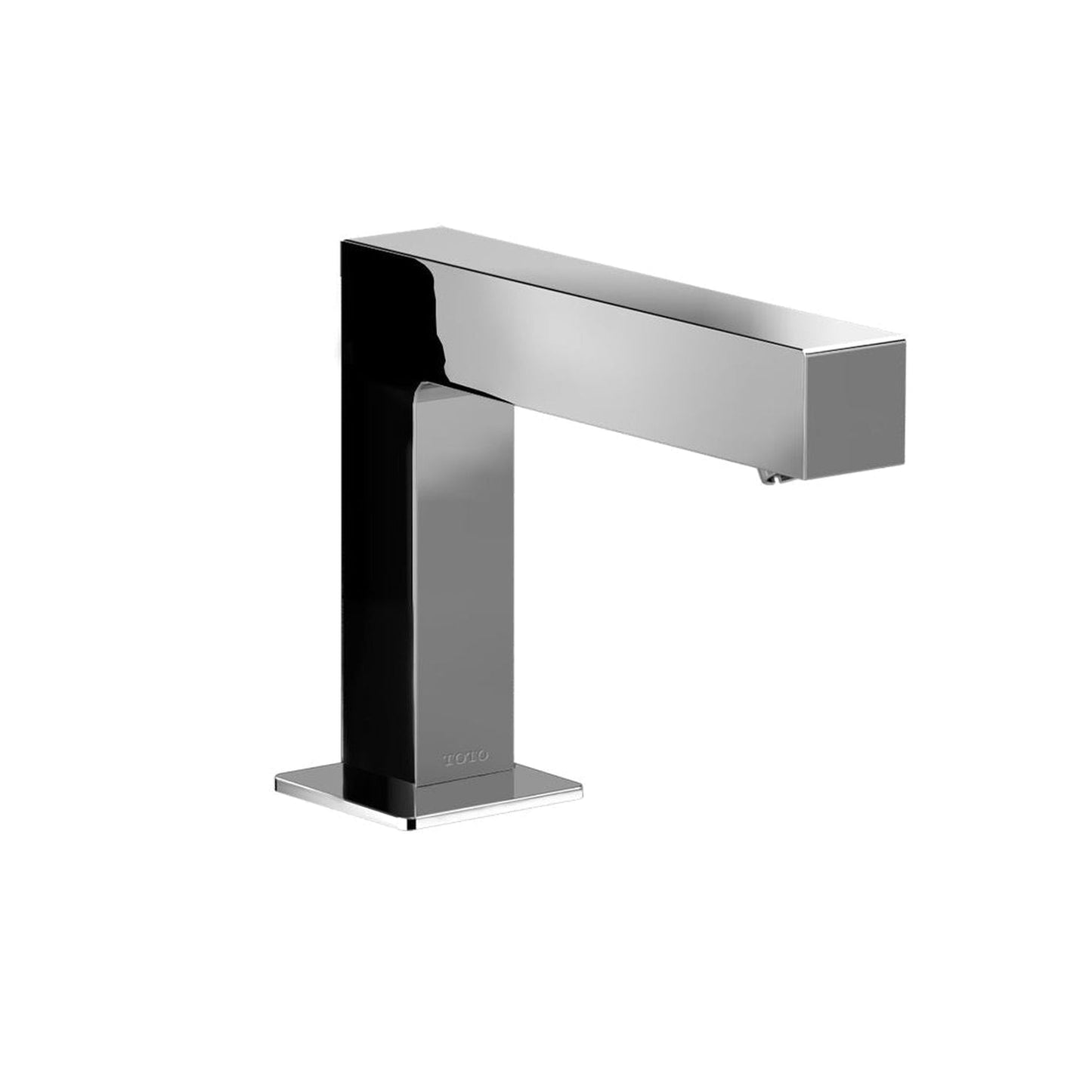

TOTO Axiom EcoPower Polished Chrome 0.50 GPM Single Hole Hydropowered Electronic Bathroom Faucet
TOTO Axiom EcoPower Polished Chrome 0.50 GPM Single Hole Hydropowered Electronic Bathroom Faucet
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.
What's Included
Kit includes spout body, controller box , and mounting hardware - less supply lines
Features
- Operated entirely by hydropower. No external power source needed.
- Strategic location of sensor at tip of spout for instant response time.
- No wiring. Easy installation and low-cost maintenance.
- 0.5 GPM water-saving flow rate.
- ADA compliant.
- Consists of Spout and Controller.
- Mixing Valve options available.
Toto People-Centered Design Smart Fact
TOTO's Ecopower sensor faucets require no external power source. With no wiring involved, installation is simple.
|
Cleanliness Touchless Technology
TOTO TOUCHLESS products provide confidence that a trip to the restroom will be clean, comfortable, and convenient.
Specifications
Power Supply | ECOPOWER |
---|---|
Sensor Detection Range | 5-1/8" - 7-7/8" (130 - 200mm) Sensor is self-adjusting |
Water Supply Pressure | Min (Dynamic/Flowing) Pressure: 15 psi (100kPa) Max (Static) Pressure: 80 psi (551kPa) |
Water Supply | G1/2 (1/2 NPSM compatible) |
Inlet Temperature Range | 39-110°F(4-42°C) |
Ambient Temperature | 32-104°F(0-40°C) |
Humidity | Max. 90% RH |
Flow Rate | 0.09 gpc* - max 10 second On-Demand** (0.09 gpc = 0.5 gpm x 10/60 sec) Equipped with 0.5 gpm flow control |
0.19 gpc* - 20 second Continuous*** (0.19 gpc = 0.5 gpm x 20/60 sec) Equipped with 0.5 gpm aerated flow |
|
Warranty | Three years |
*Gallons per cycle (gpc) is the amount of water per usage cycle .
** On-demand refers to the way in which the water is dispersed (i.e.; water is only dispersed when the sensor is activated by the user as needed).
*** Continuous means that water is dispersed for a continuous 20 second cycle
Dimensions
Warranty
Three-Year Limited Warranty
TOTO warrants its electronic flush valves, faucets and soap dispensers (“Product”) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for a period of three (3) years from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
Codes/Standards
- Operates below federally mandated consumption limit of 0.25gpc
- Complies to California Green Building Code, CALGreen of 0.20 gpc
- Meets or exceeds ASME A112.18.1/CSA B125.1, and NSF 372
FCC compliant to Part 15 - Certifications: IAPMO(cUPC), State of Massachusetts, and others
- California Green Code and City of Los Angeles Water Efficiency Ordinance
- ADA compliant
- Complies with federal and state statutes as low-lead (contains a weighted average of 0.25% lead or less)
- Complies with CA Prop 65 warning requirements *
- For codes and standards of mixing valves TLM10 and TLT10R, please refer to corresponding product spec sheets.
Downloads
- CAD Drawing - TEL145-D10E (Controller)
- CAD Drawing - TEL145-D10E (Spout)
- Revit Model - TELS145
- Specification Sheet - TEL145-D10E
- Specification Sheet IoT - TEL145i2 Series
- Installation & Owners Manual - EcoPower Faucets
- Spare Parts Manual - TEL145-D10E
- Commercial Design Brochure
