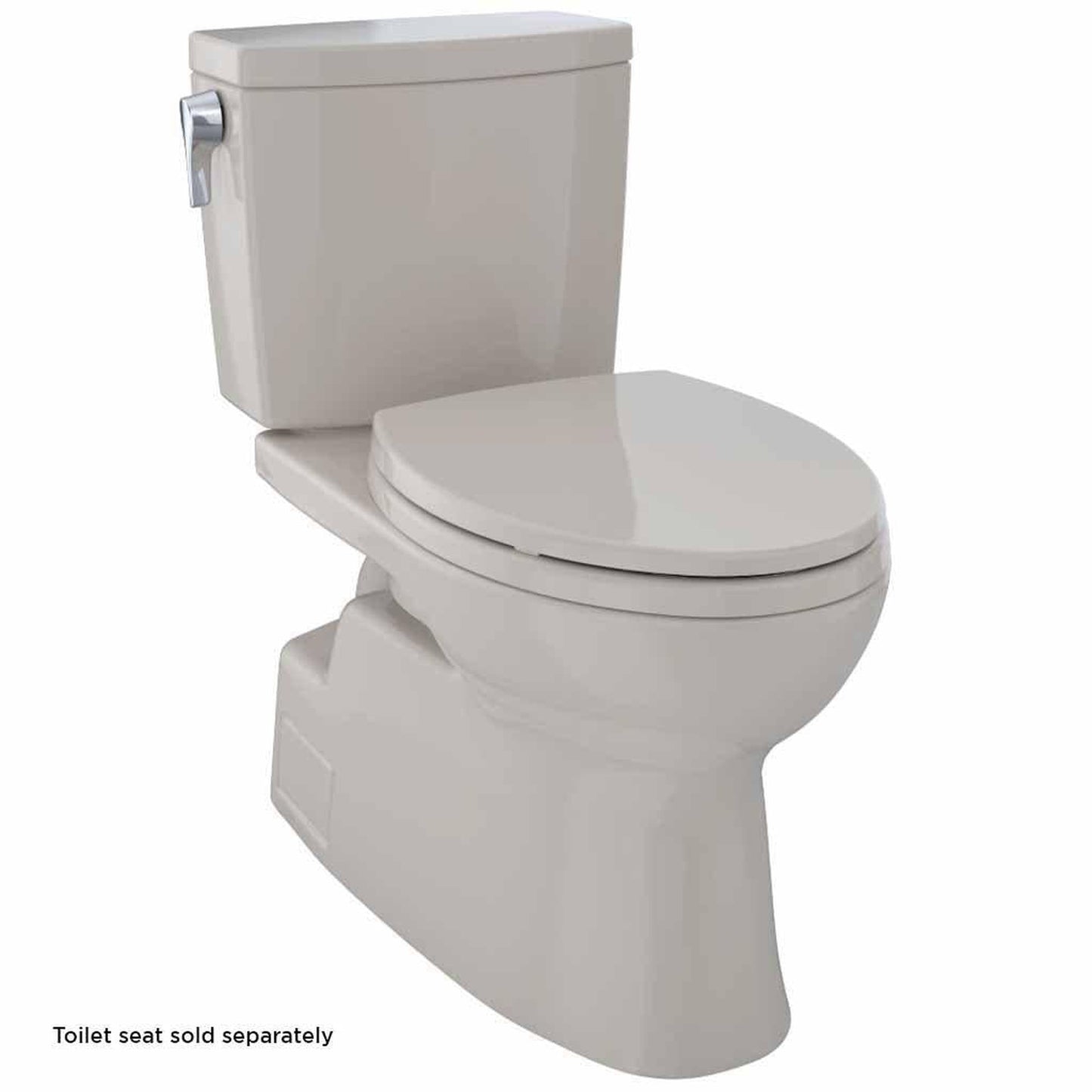

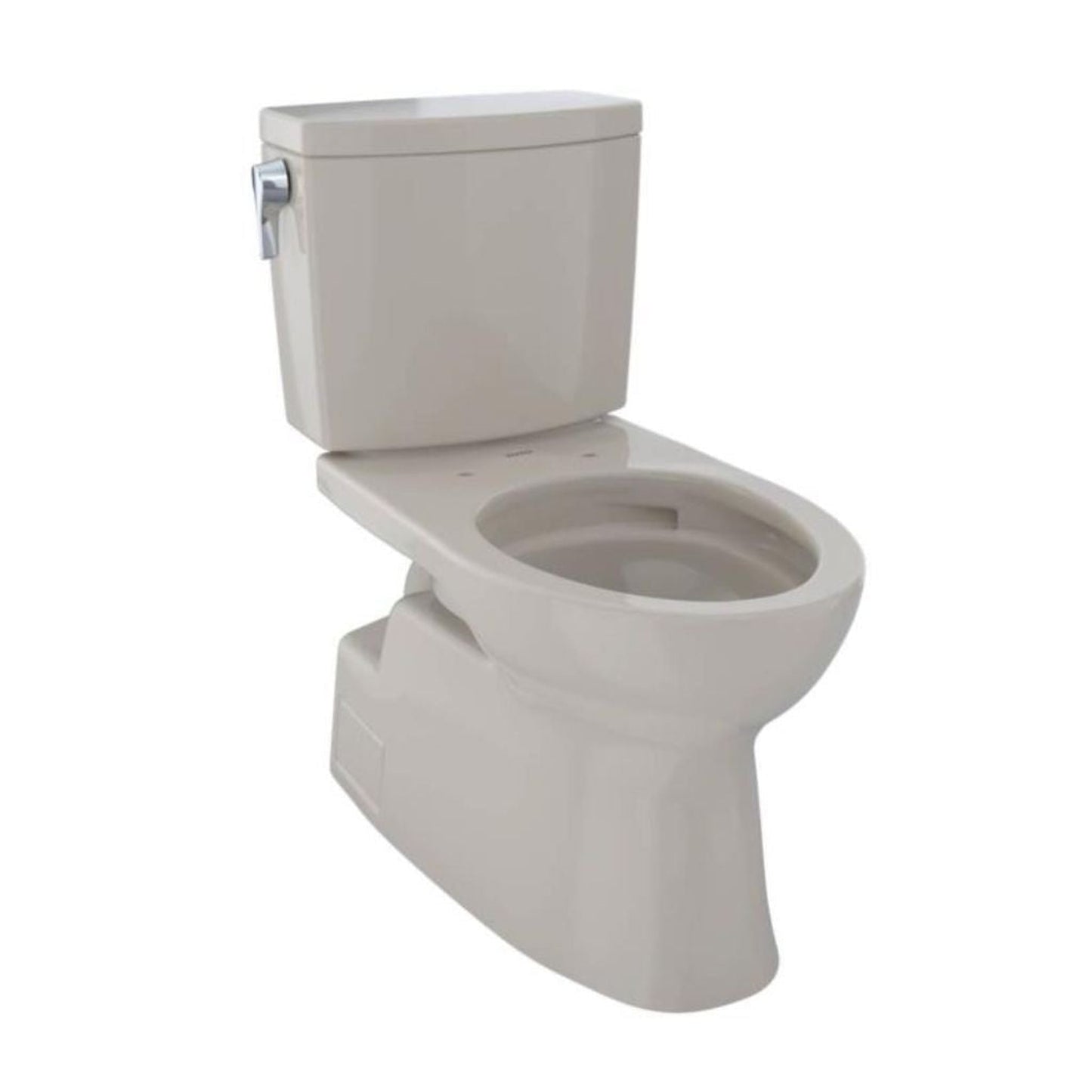

TOTO Vespin Bone 1G Tornado-Flush Two-Piece Elongated 1.0 GPF Toilet

TOTO’s extraordinarily smooth CEFIONTECT glaze prevents particulates from adhering to porous, ceramic surfaces. The ion-barrier in CEFIONTECT keeps everything cleaner, longer. Less cleaning means fewer chemicals in the environment and less water used for cleaning.

The TORNADO FLUSH features two powerful nozzles that create a centrifugal, cyclonic rinsing action which reduces waste buildup and keeps the bowl cleaner. Using only 1.28 gallons per flush, this high-efficiency system is more effective in one flush than most toilets are with multiple flushes. The modern hole-free rim design means that it performs more consistently and is easy to clean.

• Dual-nozzle water propulsion system
• More powerful flush
• 1 gallon or 1.28 gallon per flush
• Cleaner bowl and less cleaning

	Dynamax Tornado Flush® uses 100% of water to clean and rinse bowl. Dynamax combines powerful bowl cleaning and waste evacuation using water that is 100% projected from the rim creating 360° cleaning power. Using only 1.0/0.8 or 1.28/0.8 gallons per flush, coupled with a 25% larger trapway diameter, this high-efficiency system uses 20% less water with improved performance while also creating a quieter flush. With a modern rimless design, it performs more consistently and is easy to clean.
	Powerful washing where waste accumulates most easily Tornado Flush’s dynamic waterjet discharges from near the front of the toilet bowl, travels in a narrow channel along a hairpin curve, and with sustained water pressure thoroughly cleanses the areas where waste accumulates most easily - and then washes the entire bowl clean. Exquisitely high-quality ceramic makes this innovative design possible.
	Rimless The Rimless design not only leaves no place for waste and germs to hide. It also makes for a much easier to clean toilet.

The skirted design, available in many modern TOTO toilet collections, offers clean lines, minimal flourishes and geometric precision. This style is elegant and smooth, concealing the trapway, and features a base that is easy to clean and maintain.

A partnership program of the U.S. Environmental Protection Agency (EPA) makes it easier to save water and protect the environment by identifying high efficiency products that perform well. The WaterSense label was created to encourage manufactures to produce water efficient plumbing fixtures and to develop a system to help consumers recognize these products. that have been performance tested and validated by several agencies.

As members of the EPA’s WaterSense Steering Committee, TOTO water efficiency specialists advised the EPA on developing product performance criteria for the WaterSense program. TOTO products are recognized is part of the EPA’s National Environmental Achievement Track, the “gold standard” for facility-based environmental performance, recognizing environmental excellence by encouraging facilities with strong environmental records to go above and beyond legal requirements. TOTO is also a partner in the EPA’s innovative collaboration with the freight industry to increase energy efficiency while significantly reducing greenhouse gases and air pollution.

The EPA’s WaterSense® label identifies toilets that:

• Qualify as High Efficiency Toilets (1.28gpf or less).
• Have a minimum soybean paste flush score of 350 uncased grams.
• Meet the Los Angeles Department of Water and Power Supplementary Pricing Specification regarding trim quality and tank volume.
• Have third party testing agencies conducting product performance testing and validation.

Established in 1953 by the California Building Standards Law, the California Building Standards Commission (CBSC) is within the Department of General Services under the Government Operations Agency. CBSC members are appointed by the Governor and confirmed by the State Senate.

CBSC's mission is to produce sensible and usable state building standards and administrative regulations that implement or enforce those standards.

Specifically, CBSC:

• Assists state agencies in producing high-quality amendments;
• Works to repeal unnecessary building regulations and see that ambiguous regulations are more clearly written;
• Assists various constituents and special interest groups in making their needs known to various code-writing departments;
• Administers a public appeal process;
• Educates the public about the state's building code, and helps them to understand and comply with it;
• Ensures Title 24 is published with minimal errors.

Take pride in your work, and strive to do your best.

Quality and Uniformity | Service and Trust | Cooperation and Prosperity

Toward a Dynamic, Vibrant, and Excellent TOTO

To ensure we secure and retain the trust of customers and society as a whole, we have formulated a mission with three key elements.


TOTO strives to create a great company that is trusted by people around the world and to contribute to the betterment of society.

To achieve our philosophy, TOTO will:

• Create an enriched and more comfortable lifestyle and culture built on our plumbing products.
• Pursue customer satisfaction by exceeding expectations with our products and services.
• Provide high-quality products and services through ongoing research and development.
• Protect the global environment by conserving finite natural resources and energy.
• Create an employee friendly work environment that respects individuality.

• Use a detergent or non-abrasive toilet cleaner.

• Use a soft-bristled plastic brush to clean your CEFIONTECT toilet.

• Use cleansers, polishing powders or detergents that include gritty or coarse particles which might scratch the china surface.

• Use acid or alkaline detergents or cleaners which could etch the china surface.

• Use metal scrub brushes or steel wool to clean your CEFIONTECT products.

• If you have hard water stains, see How to remove hard water stains from your CEFIONTECT product

• Clogged sewer line or toilet bowl clogs

• Clogged vent line

• Incorrect settings or worn out toilet parts

• A previously clogged sewer pipe may have allowed solids to back up into the air vents. When the clog was cleared, materials stayed lodged in the vent pipe.

• A snow and ice storm may have allowed an ice cap to form, closing off the pipe.

• A squirrel or bird may have decided the pipe was a good place to build a nest, or store food.

• The flapper

• The flush valve

• The fill valve

• The trip lever

• If the water level does not drop, the problem is with the flapper. See our FAQ titled: How to replace a rubber flapper.

• If the water level drops to the bottom of the flush valve, where it meets the china, the gasket at the base of the flush valve is bad. See our FAQ titled: How to replace a flush valve on a two piece toilet.

• It might be hissing or continually dripping from the end of refill tube into the overflow tube on the flush valve.

• If the water is not filling the tank at all, or is filling in erratic starts and stops, it is possible you have debris in the valve. For this symptom, cleaning the fill valve may eliminate the symptom.

For non-dual flush toilets

1. Turn water off to the toilet at the angle stop on the water supply line.
2. Carefully remove toilet tank top, and place in a safe location to prevent breakage.
3. Flush toilet and hold the handle down until water stops flowing out of the tank and into the bowl.
4. Disconnect flapper chain from trip lever arm (note which hole the chain is connected to).
5. Gently slide the arms of the flapper off the plastic pegs on the flush valve assembly.
6. Remove old flapper from the tank.
7. To install new flapper, gently slide flapper arms over pegs on flush valve assembly.
8. Connect the chain to the trip lever arm, and move the clip on the chain so it has a little slack in it when the flapper is in the closed position. Use same hole on the trip lever arm as old flapper was connected to. Note: depending on the flapper for your model toilet, the clip my look slightly different than this photo.
9. Turn water back on and when tank is full, test flush the toilet to make sure flapper operates correctly.

• Unfasten the flapper chain from the trip lever rod.

• Unscrew the nut on the inside of the tank that holds the handle in place. Note: locknut is reverse threaded. You need to unscrew it in the opposite direction from a normal thread.

• Once locknut is removed from rod, pull the trip lever assembly out of the hole in the china.

• Install new handle and tighten locknut by turning clock-wise. Remember it is reverse threaded.

• Do not over tighten as you could strip the threads.

• Reattach the flapper chain to trip lever rod, leaving a little slack in the chain.

1. Remove the tank lid
2. Turn off the water supply
3. Flush the toilet (hold down the lever to drain the tank)
4. Disconnect the water supply line from the toilet (catch any remaining water with a bucket or bowl)
5. Remove the nut that holds the fill valve in place
6. Unhook the refill tube from the metal clip
7. Remove the old fill valve
8. Identiy the model number of your toilet
9. See the fit chart in the valve instructions to set the height for the correct model
10. Hold the new valve at the bottom and turn the top of the valve counterclockwise until it stops.
11. Pull the bottom to extend to the proper height for your model. (count the number of pegs)
12. Turn the top of valve clockwise to lock it into position
13. Insert the lockin clip over the pegs
14. Set the proper re-fill amount by first turning the aduster off by turning it counterclockwise
15. Check the key setting on the valve instructions for your model
16. Turn the adjuster clockwise until it stops on the key
17. Insttall the pre-adjusted valve into the toilet (make sure it doesn't touch the back of the tank or interfere with the trip lever arm
18. Hand tighten the mounting nut and then tighten 1/4 turn
19. Attach the re-fill tube to the valve
20. Connect the re-fill tube to the overflow tube using the metal clip
21. Re-connect the water supply
22. Turn the water on
23. Flush and fill the toilet
24. If the water level is too low turn the valve clockwise
25. If the water level is too high turn the valve counterclockwise
26. Installation Complete!

• Turn off water to toilet at the angle stop on the water supply line.
• Drain toilet tank by holding down the trip lever until the tank water has drained into the bowl. Manually remove the remaining water from the tank.
• Remove water supply line from fill valve. Use a catch basin to catch any drips.
• Remove the nuts on the right and left of tank.
• Lift tank off toilet.
• Remove tank to bowl gasket from the underside of the tank.
• Remove large nut on flush valve from the underside of the tank.
• Remove flush valve from the inside of the tank.
• Install new flush valve and tighten the flush valve nut by reversing steps 6, 7 & 8.
• Install tank to bowl gasket.
• Reset the tank to the bowl.
• Tighten the tank to the bowl until it make contact with the china. Do not over tighten or you may break the china.
• Reinstall the toilet supply line by hand. Do not over tighten or the fill valve will rotate in the tank and come loose.
• Turn water on.
• Check for leaks.

Removing the Balance Spool:

• Turn both water stops (hot and cold) clockwise to shut off the water to the valve.
• On the valve, the balance spool is located next to the cold-water stop and looks like a hex nut.
• With a wrench turn the hex nut counter clockwise and pull the balance spool out.
• The balance spool consists of the large cylinder with a smaller cylinder inside. The inner cylinder should move freely inside the large cylinder.

Cleaning the Balance Spool:

• If the inner smaller cylinder is stuck, shake or tap the spool to release inner cylinder. Rinsing the spool with warm water will help loosen the cylinder.
• Clean both the inner and the outer cylinders with warm water, vinegar, or household cleaner and rinse.
• Reinsert the inner spool (cylinder) into the large spool and verify that the inner spool moves freely.

Installing the Balance Spool:

• Verify that the balance spool has an O-Ring next to the lip of the hex nut.
• Verify that the inner spool moves freely inside the large spool.
• Insert the balance spool (both cylinders) and turn clockwise with wrench and tighten.
• Check for leaks when the water stops are turned on.

Mold: How it may have gotten there, and how to remove it.

What is Slime Mold?

Slime mold is a special class of mold that forms a slime coat to protect it from harsh environments. A toilet bowl provides the perfect atmosphere for any type of microorganism as it has food, water, air and a nice warm location.

Mold can come in a variety of colors – most are black or dark brown, but they also show up in pinks, blues, reds and some of them are absolutely beautiful. Don't let the pretty colors fool you, if you don't remove them they will take over the toilet.

How Did Slime Mold Get in my Toilet?

Mold spores are everywhere, and can travel through the air. (Ever wonder how the mold got on that slice of bread?) When one hits the toilet bowl, it may start a small colony, and if left alone, will completely cover the inside of the bowl. It can also grow in the tank if that is where the spore landed. It is not uncommon for the mold to show up in all the toilets in a single home, especially when the homeowner uses one toilet brush to clean all the toilets.

When we explain this to customers, their first reaction is "No way! I am a meticulous housekeeper." This is not an indication of poor house keeping. The spore may get picked up on your clothes during your daily travels, and fall into the bowl when you use the toilet at home. It is also possible for the spores to have come in on the tools that were used to install the new toilet.

How do I Eliminate Slime Mold?

Chlorine will kill the mold spore, but if it has already developed a slime layer, chlorine alone won't work. In order to remove the spots, you need to:

• Scrub the colony off the china, using a non-scratching scour pad.
• Then you need to follow up with a chlorine rinse to kill the spores that you removed, or they will just form another colony.

It may take repeated treatments to finally kill off the colony. One way to ensure continuous treatement is by using an in tank Chlorine tablet. Our installation manual warns against the use of these in tank tablets, but we need to address the mold issue, and we are only going to use it once. The tablet will last about 30 days, and each time the toilet is flushed, it will wash all the water contact surfaces with a little extra chlorine. This step is essential if the mold has grown up in the rim holes, as you will be unable to scrub that area.

To find the toilet model number and color code:

• Look inside your tank or under your tank lid. Always exercise caution when removing the tank lid, as it is a fragile item.
• On the china walls inside your tank you will see a model number stamped or engraved in the porcelain. They will have letters with a three-digit number. There may be more letters following, depending on additional features available on that model of the toilet. This stamp maybe on your tank lid as well.
  For Example:
  ST743E
  CST 854
  C733
  MS974CEFG.
• The most common location for these markings is on the back wall of the tank, or on the right hand wall, opposite the trip lever.
• The color code will start with a # followed by a two-digit number.
  For Example:
  #01 - Cotton White
  #03 - Bone
  #04 - Grey
  #11 - Colonial White
  #12 - Sedona Beige
  #51 - Ebony
