ZLINE El Dorado Chrome Rain Shower System

ZLINE El Dorado Chrome Rain Shower System

Regular price $689.95
Regular price $1,199.95 Sale price $689.95
Sale Sold out

Faucet

-- Please Select --

No, Thank You

Towel Ring

-- Please Select --

No, Thank You

Towel Hook

-- Please Select --

No, Thank You

Towel Bar

-- Please Select --

No, Thank You

  • Free Shipping on Orders Over $300
  • Same-Day Order Processing
  • Easy Monthly Installments Starting at 0% APR*
Got a question?
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat

Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

The ZLINE El Dorado Shower System is manufactured with the highest quality materials on the market. ZLINE shower systems feature hand-held technology and a shower bar, offering precise, ergonomic control making them easy to use.

The options of both the detachable hand sprayer as well as a relaxing rain shower provide extra water coverage for an unparalleled showering experience. These innovative design elements have set the industry standards for beauty and reliability in bathroom decor.

With up to 2 gal per minute, this shower system does not compromise performance or efficiency. This exclusive collection blends modern technology with a traditional appeal, while offering a wide array of styles and finishes.

What's Included

1. Flange Cover 9. Switch Handle
2. Shower Arm 10. Cap
3. Top Spray Shower 11. Sleeve
4. Wall Valve Body 12. Flange Cover
5. Faceplate 13. Angle Valve
6. Sleeve 14. Shower Rail
7. Washer 15. Shower Handle
8. Steering Handle 16. Hose
  • Deck Plate
  • Pull Out Spray Wand
  • Mounting Hardware

Not Included

  • Soap Dispenser
  • Drain Assembly
  • Water Filtration

Features

  • Durable and leak-proof brass housing
  • Simultaneously run two spray features, allowing for ultimate ergonomic control
  • Aerated water flow for resource conservation, making it environmentally and wallet friendly
  • Easy to use hand-held system, adding convenience and safety
  • Integrated diverter system allowing for simple operation
  • German quality, engineering and design brings our sleek, contemporary fixtures into your home at an affordable price
  • This ZLINE Shower System comes equipped with a two-valve diverter made of solid brass to effectively redirect water from one function to another

Specifications

Box Weight 20.9 lbs
Box Length/Width 26.9"
Box Depth 8.6"
Box Height 5.9"
Assembly Unit No
Nested Packaging Unit No
Showerhead Face Diameter 7.9"
Shower Head Reach 19.2"
Handheld Shower Width 4.1"
Handheld Shower Depth 2.2"
Handheld Shower Height 26.7"
Base Width & Depth 1.9" W x 1.9" D
Faceplate Width 6.7"
Faceplate Depth 1.8 min - 3.2 max
# of Jets 0
Placement N/A
Finish Chrome
# of Handles 2
# of Installation Holes 11
Deck Plate Included (Y/N) Y
Pull Out Spray Wand (Y/N) Y
Faucet Type Shower
Lock Technology (Y/N) N
Soap Dispenser Included (Y/N) N
Drain Assembly Included (Y/N) N
Walter Filtration Included (Y/N) N
Handle Type Lever
Spout Type Fixed
No. of Spray Settings 1
Spray Pattern Rain
Shower Head Type Fixed
Faucet Control Type Pressure Balanced
Diverter Type Two-Valve Diverter
Drain Included (Y/N) N
Valve Included (Y/N) Y
Valve Material Brass
Flow Rate (gl/min) 2.0/1.5 GPM
Adjustable Water Flow (Y/N) Y
Connection Size 1/2-14NPT
Housing Material Brass
Mount Location Wall
Certifications ETL Listed, UL Listed, ADA Compliant

Available Finishes

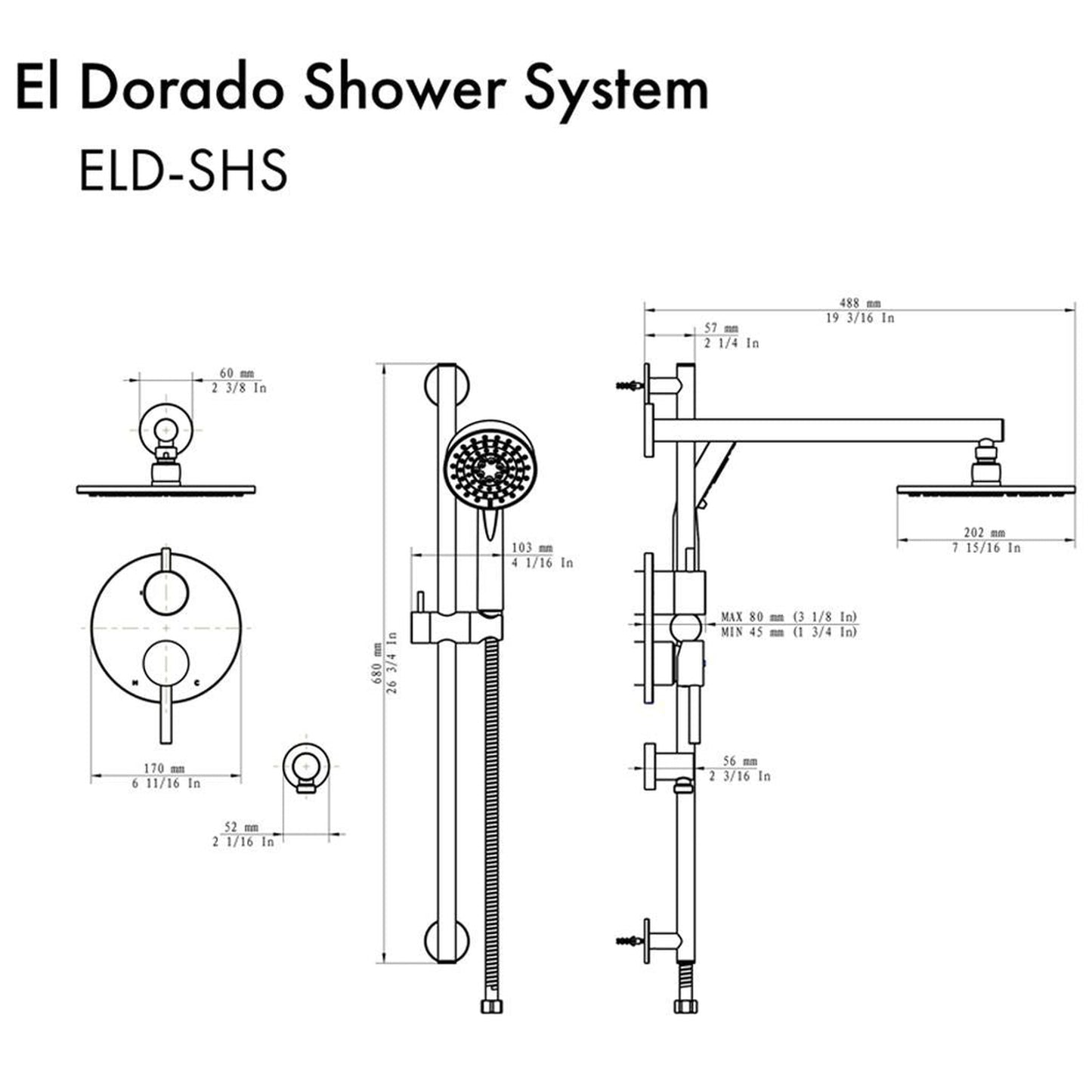

Dimensions

Warranty

Limited Lifetime Warranty:

We will provide free of charge, non-consumable replacement parts for the components that failed due to manufacturing defects. Subject to the conditions and limitations set forth below at it’s option, either repair or replace any part of its products that prove defective by reason of improper workmanship or material. Repaired parts or replacement products will be provided by ZLINE Kitchen on an exchange basis and will be either new or refurbished to be functional equivalent to new. The consumer is responsible for shipping costs.

Who is covered:

This warranty is extended to the original purchaser for products purchased for ordinary home use in the continental USA.

This warranty is void when:

Product damage through negligence, improper installation, accident, abuse, misuse, and natural disaster, insufficient or excessive electrical supply. Abnormal mechanical or environmental conditions or any unauthorized disassembly repair, modifications or failure to follow the installation instructions or when product is used commercially or other than its intended purpose or damaged because of improper connection with equipment of other manufacturers. Repaired or modified by anyone other than authorized agents. This limited warranty does not apply to any product on which the original identification information has been altered, obliterated or removed, has not been handled or packaged correctly, has been sold as second-hand or resold contrary to the US regulations.

What is not covered:

The natural wear of the finish, and wear due to improper maintenance, use of corrosive and abrasive cleaning products, pads and cleaning products. Chips, dents or cracks due to abuse, misuse, freight damage (not reported), or improper installation. Damage of product caused by accident, fire, flood or a natural hazard outside human control, we are not liable for and is not covered by warranty, any loss of properties or any cost associated with removing, servicing, installing or determining the source of problems with our products.

This warranty is valid in the United States. It is non-transferable and applies only to the purchaser and does not extend to subsequent owners of this product, any applicable implied warranties, including the warranty of merchantability are limited in the duration to a period of express warranty as provided herein beginning with the date of original purchase at retail and no warranties, whether express or implied shall be applied to this product.

Documents & Files

Frequently Asked Questions

How do I troubleshoot a leak coming from my shower system spray head or handle?

Troubleshooting instructions for leaking can be found on our Troubleshooting Guide
