ZLINE Emerald Bay Gun Metal Thermostatic Rain Shower System With 4 Body Jets
ZLINE Emerald Bay Gun Metal Thermostatic Rain Shower System With 4 Body Jets
Faucet
-- Please Select --
No, Thank You
Towel Ring
-- Please Select --
No, Thank You
Towel Hook
-- Please Select --
No, Thank You
Towel Bar
-- Please Select --
No, Thank You
- Free Shipping on Orders Over $300
- Same-Day Order Processing
- Easy Monthly Installments Starting at 0% APR*
• Text or call 800-614-7411
• Email support@usbathstore.com
• Start a live chat
Our team is available to serve you 8:00 AM - 11:59 PM ET, 7 days a week.

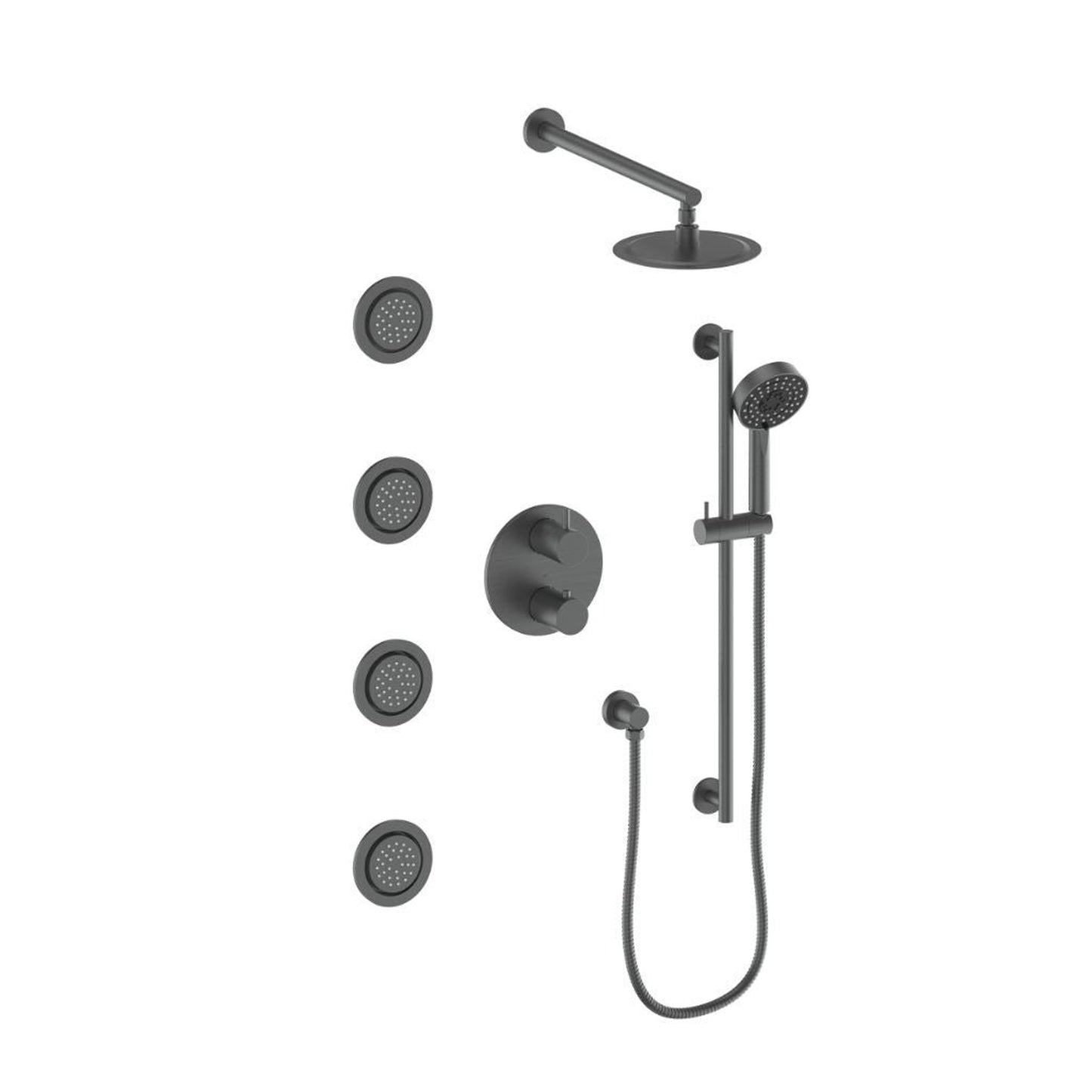

Discover the essence of Attainable Luxury® with the ZLINE Emerald Bay Shower System. Engineered to impress, this rain shower system features professionally-styled modern aesthetics combined with exceptional performance.
Utilizing advanced thermostatic technology, this luxurious shower system maintains a consistent shower temperature to ensure maximum comfort with every use. Achieve optimal convenience with features including a detachable hand sprayer shower and shower bar, providing precise, ergonomic control - making them easy to use and ADA compliant.
Enjoy four built-in body jets, allowing you to achieve a luxury spa-like experience from the comfort of your home. With up to 2 gal per minute, this shower system does not compromise on performance or efficiency. ZLINE’s exclusive thermostatic shower system collection blends modern technology with a traditional appeal, while offering a wide array of styles and finishes.
What's Included
1. Flange Cover | 10. Handle |
2. Shower Arm | 11. Handle |
3. Top Spray Shower | 12. Flange Cover |
4. Wall Valve Body | 13. Angle Valve |
5. Faceplate | 14. Shower Rail |
6. Sleeve | 15. Shower Handle |
7. Washer | 16. Hose |
8. Tooth | 17. Built-in Body Jet |
9. Screw |
- Deck Plate
- Pull Out Spray Wand
- Mounting Hardware
Not Included
- Soap Dispenser
- Drain Assembly
- Water Filtration
Features
- Advanced thermostatic technology adds convenience and control by maintaining your desired shower temperature
- Built-in body jets allow for a luxurious wash experience
- Simultaneously run two spray features, allowing for ultimate ergonomic control
- Durable and leak-proof brass housing
- Aerated water flow for resource conservations, making it environmentally and wallet friendly
- Relaxing rainshower head with even water pressure for a serene experience
- This ZLINE Shower System comes equipped with a two-valve diverter made of solid brass to effectively redirect water from one function to another
Specifications
Shower Width | 7.9" |
Shower Reach | 19.2" |
Shower Base Width & Height | 2.4" W x 2.4" H |
Handheld Shower Width | 4" |
Handheld Shower Depth | 2.3" |
Handheld Shower Height | 26.7" |
Base Width & Depth | 2.1" W x 2.2" D |
Faceplate Width | 7.1" |
Faceplate Depth | 1.8 min - 3.2 max |
Faceplate Height | 7.4" |
Body Jet Diameter | 4.7" |
# of Jets | 4 |
Placement | 2 x 2 Adjacent |
Finish | Gun Metal |
# of Handles | 2 |
# of Installation Holes | 11 |
Deck Plate Included (Y/N) | Y |
Pull Out Spray Wand (Y/N) | Y |
Lock Technology (Y/N) | N |
Soap Dispenser Included (Y/N) | N |
Drain Assembly Included (Y/N) | N |
Walter Filtration Included (Y/N) | N |
Adjustable Water Flow (Y/N) | Y |
Valve Included (Y/N) | Y |
Faucet Type | Shower |
Handle Type | Lever |
Spout Type | Fixed |
Showerhead Face Diameter (in.) | 7.9" |
No. of Spray Settings | 1 |
Spray Pattern | Rain |
Shower Head Type | Fixed |
Faucet Control Type | Thermostatic |
Diverter Type | Three-Valve Diverter |
Valve Material | Brass |
Flow Rate (gl/min) | 2.0/1.5 GPM |
Connection Size | 1/2-14NPT |
Housing Material | Brass |
Mount Location | Wall |
Certifications | ETL Listed, UL Listed, ADA Compliant |
Available Finishes

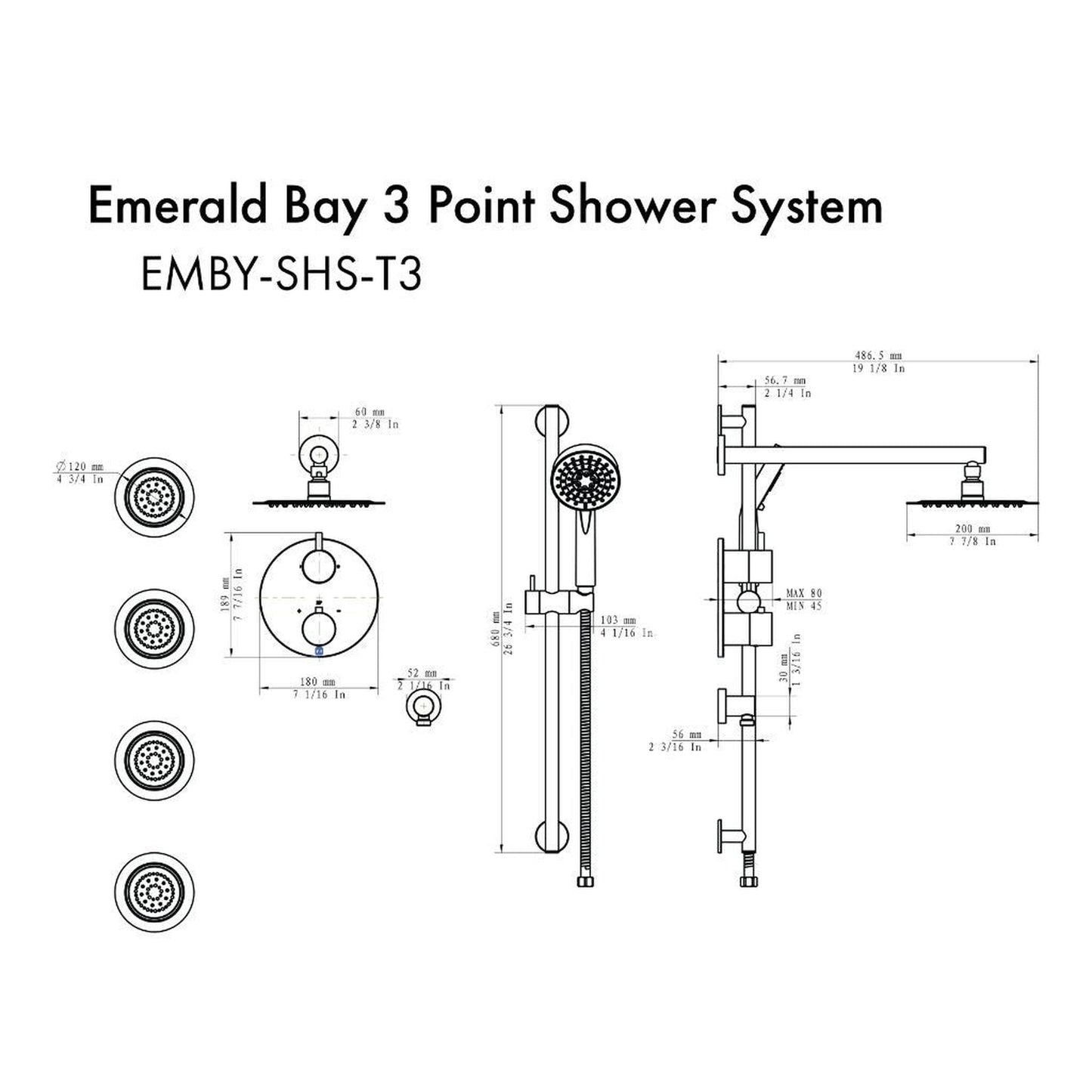

Dimensions
Warranty
Limited Lifetime Warranty:
We will provide free of charge, non-consumable replacement parts for the components that failed due to manufacturing defects. Subject to the conditions and limitations set forth below at it’s option, either repair or replace any part of its products that prove defective by reason of improper workmanship or material. Repaired parts or replacement products will be provided by ZLINE Kitchen on an exchange basis and will be either new or refurbished to be functional equivalent to new. The consumer is responsible for shipping costs.
Who is covered:
This warranty is extended to the original purchaser for products purchased for ordinary home use in the continental USA.
This warranty is void when:
Product damage through negligence, improper installation, accident, abuse, misuse, and natural disaster, insufficient or excessive electrical supply. Abnormal mechanical or environmental conditions or any unauthorized disassembly repair, modifications or failure to follow the installation instructions or when product is used commercially or other than its intended purpose or damaged because of improper connection with equipment of other manufacturers. Repaired or modified by anyone other than authorized agents. This limited warranty does not apply to any product on which the original identification information has been altered, obliterated or removed, has not been handled or packaged correctly, has been sold as second-hand or resold contrary to the US regulations.
What is not covered:
The natural wear of the finish, and wear due to improper maintenance, use of corrosive and abrasive cleaning products, pads and cleaning products. Chips, dents or cracks due to abuse, misuse, freight damage (not reported), or improper installation. Damage of product caused by accident, fire, flood or a natural hazard outside human control, we are not liable for and is not covered by warranty, any loss of properties or any cost associated with removing, servicing, installing or determining the source of problems with our products.
This warranty is valid in the United States. It is non-transferable and applies only to the purchaser and does not extend to subsequent owners of this product, any applicable implied warranties, including the warranty of merchantability are limited in the duration to a period of express warranty as provided herein beginning with the date of original purchase at retail and no warranties, whether express or implied shall be applied to this product.
Documents & Files
Frequently Asked Questions
What is a Thermostatic Shower System?Thermostatic Shower Systems use a unique valve which mixes both hot and cold water together to a create a consistent predetermined temperature. Utilizing advanced thermostatic technology, ZLINE’s luxurious shower systems allow you to have complete control of your desired shower temperature and ensure maximum comfort with every use. ZLINE’s exclusive thermostatic shower system collections blend modern technology with a traditional appeal, while offering a wide array of styles and finishes |
How do I troubleshoot a leak coming from my shower system spray head or handle?Troubleshooting instructions for leaking can be found on our Troubleshooting Guide |
